KUHN FC243 - Conditioning Intensity and Rotor Speed

Instructions for work
Mower conditioner
FC243
41

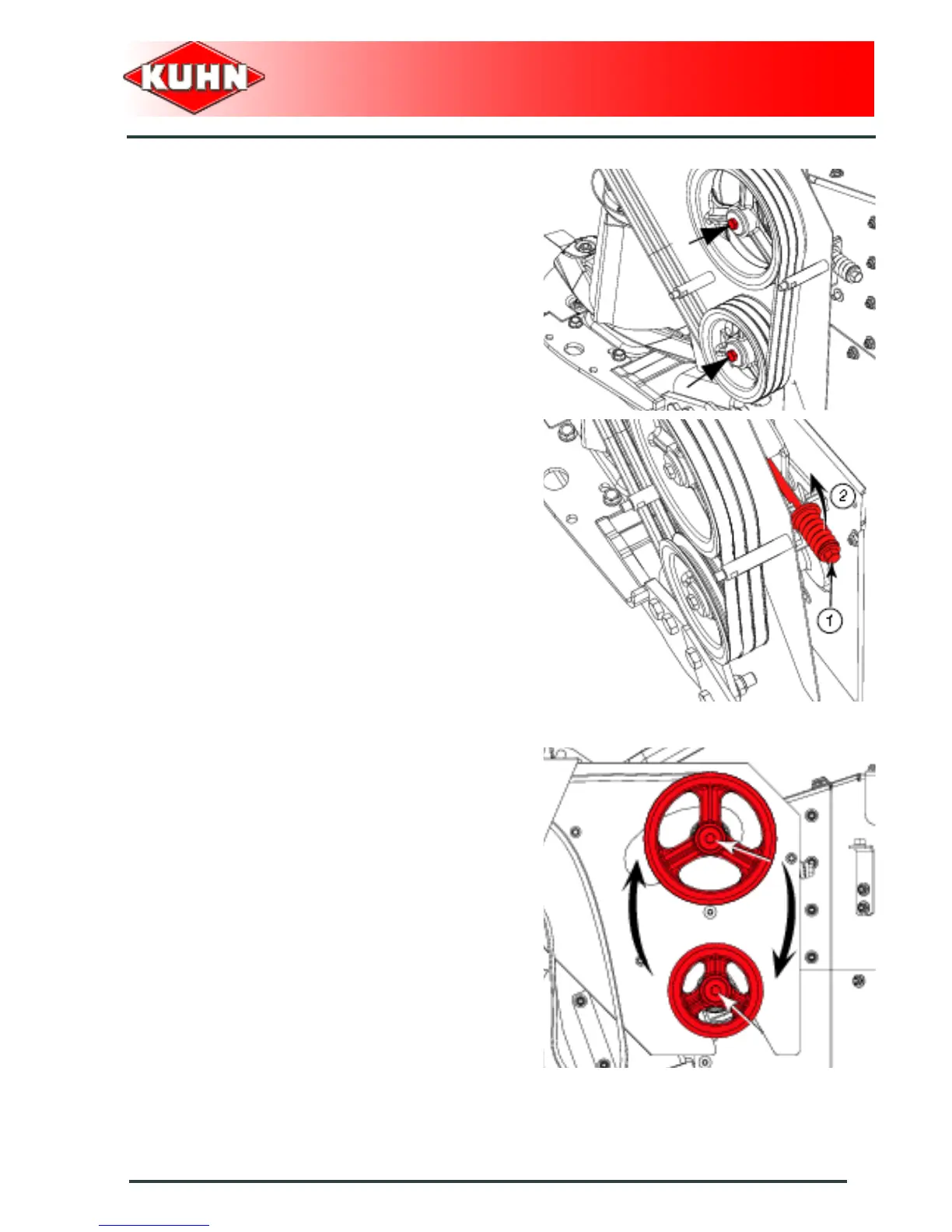

Loosen the 2 pulley mounting bolts using box spanner.
Loosen belt tensioning bolt using box spanner (1).
Remove belt tensioning bolt from its holder.
Tip over jockey pulley (2).
Remove the 3 V-belts.
Remove bolts and washers.
Exchange pulleys.
