Safety
KN271BGB C

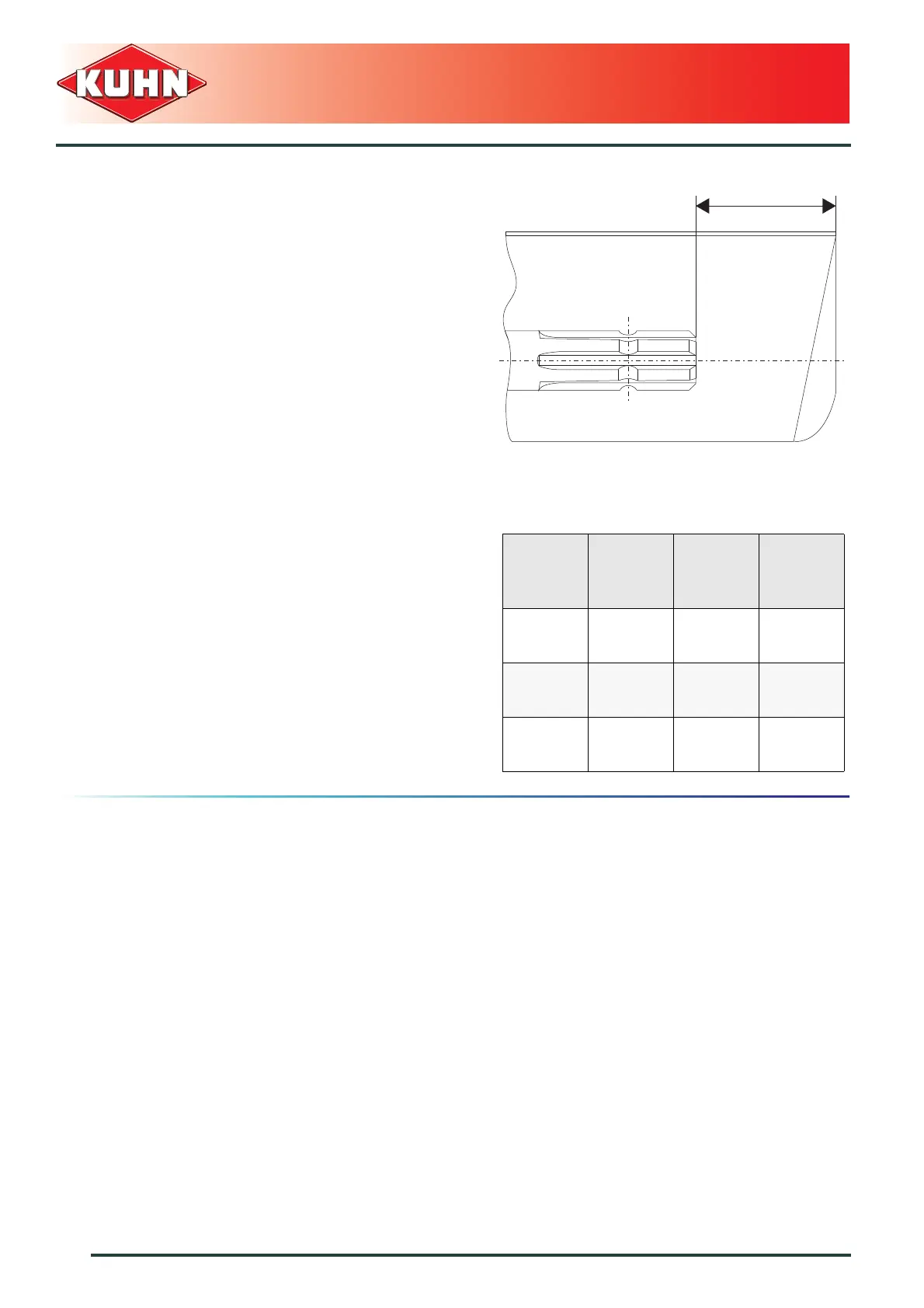

Do not install any adapter device that results in a portion
of the tractor PTO stub, the rotating PTO shaft, or the
adapter to be unguarded. The tractor master shield shall
overlap the end of the splined shaft and the added
adaptor device as outlined in the table.
When uncoupling the machine, rest the PTO shaft on the
support specially provided, and replace protective shield
on the PTO stub of the tractor.
Read and follow the instructions in the operator's manual
provided with the PTO shaft.
A
PTO type Diameter X splines
A
±5 mm (0.20’’)
1
35 mm
(1.378’’)
6
85 mm
(3.35’’)
2
35 mm
(1.378’’)
21
85 mm
(3.35’’)
3
45 mm
(1.772’’)
20
100 mm
(4.00’’)
