Mower conditioner
32
FC302RG - FC352RG
Putting into service
KN271BGB C

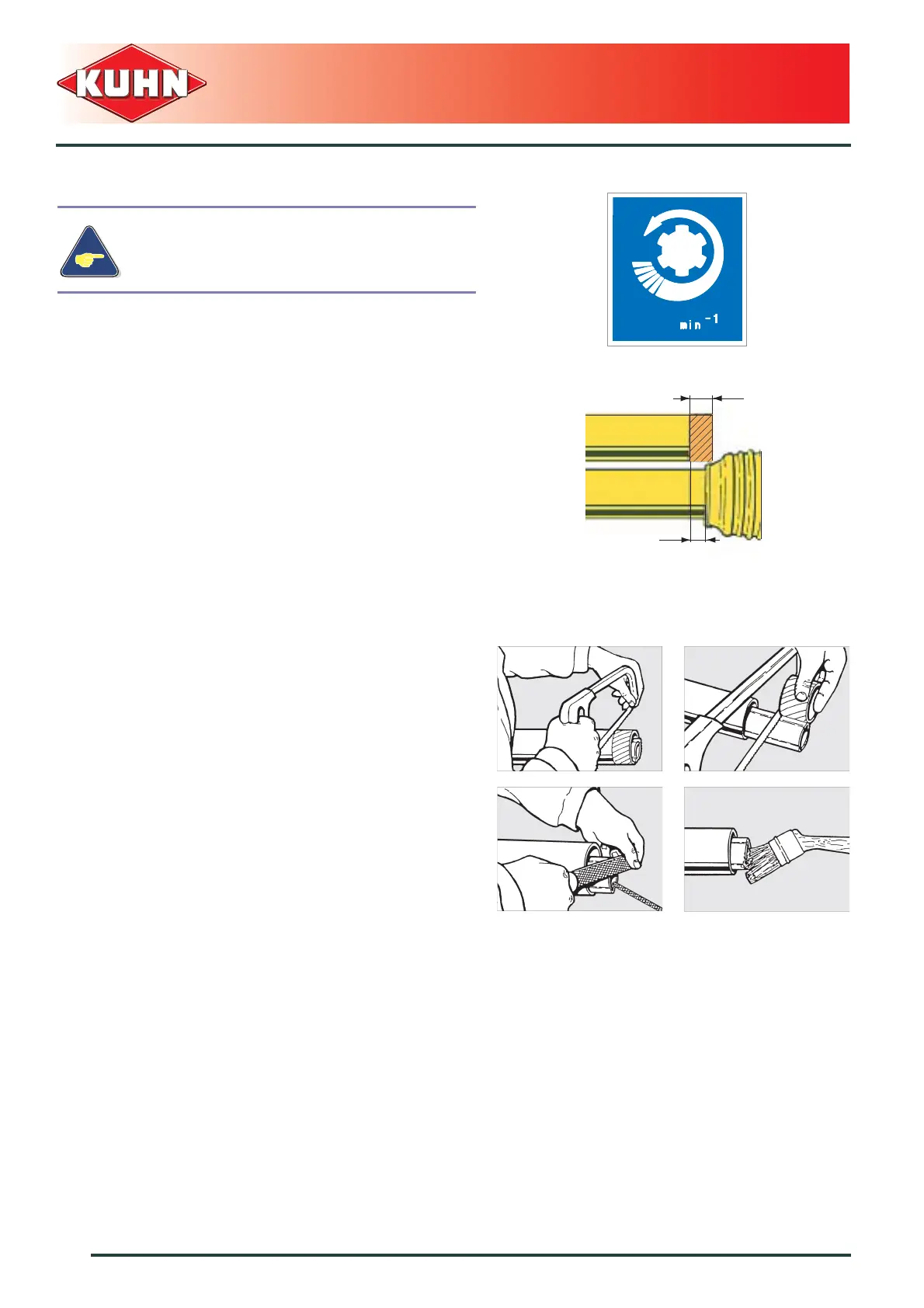

Primary PTO shaft
The direction of rotation is shown on a decal.
Separate the two half PTO shafts and connect them to
the machine's input shaft and to the tractor PTO stub.
Check the length of the PTO shaft:
- When the PTO shaft is in its maximum overlap
position (retracted), tubes should not butt against the
yokes. As a safety measure, a clearance (L) of at least
25 mm (1’’) must be maintained.
- When the PTO shaft is in its maximum extended
position, the tube overlap must be more than
250 mm (10’’).
If this is not the case:
- Mark length (H) to cut when the transmission is the
maximum overlap position.
- Shorten the guard tubes and the transmission tubes
by the same length.
- Bevel and clean the tubes.
- Grease the inside of the outer tube.
Make sure that the PTO shaft is correctly
adjusted, to avoid premature wear and tear.
