Instructions for work
Mower conditioner
FC302RG - FC352RG
43
KN271BGB C

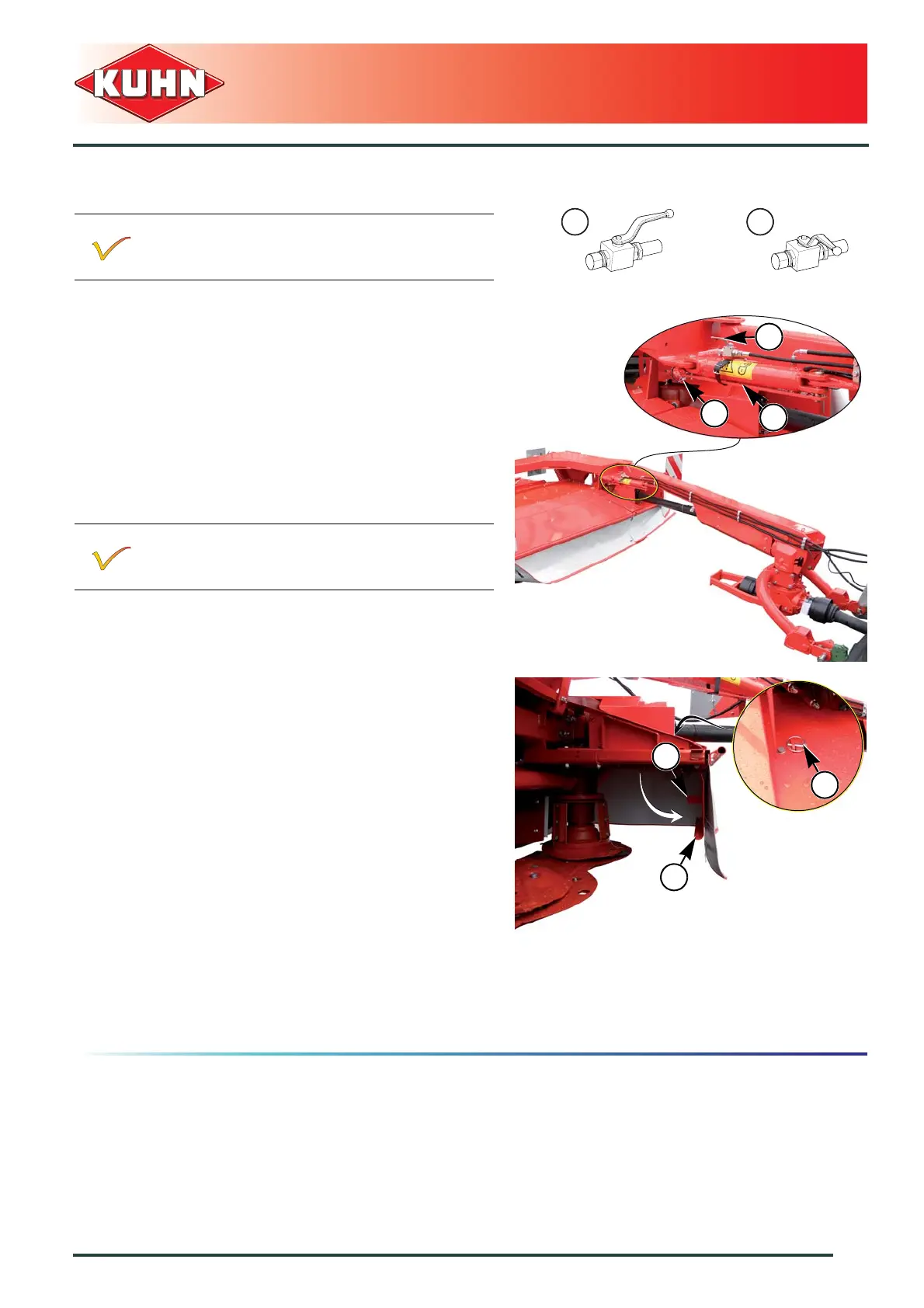

- Remove R-clip (1).
- Remove safety bar (2).
- Open drawbar shift cylinder lock valve (3).
- Activate the transport/work cylinder control valve in
the "pivot into work" position.
- Remove lynch pin (1).
- Lower deflector (2).
- Place the pin (1) in the holder (3).
- Proceed the same way on the other side.
The machine is in working position.
Opened position (1).
Closed position (2).
Wait until cylinder is fully extended.
