Maintenance and storage
Mower conditioner
FC302RG - FC352RG
71
KN271BGB C

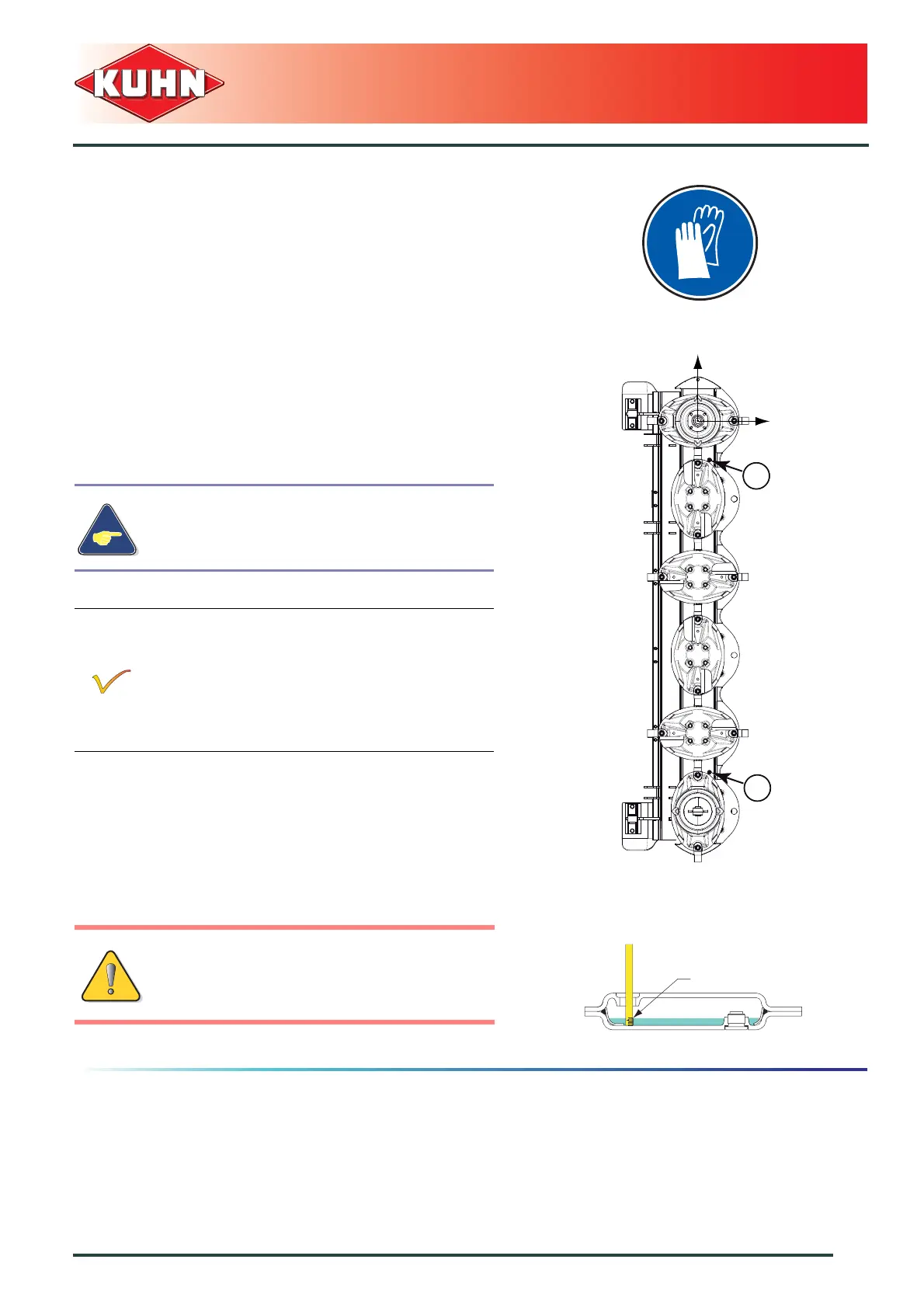

Checking cutterbar oil level
FC302G - FC302GI
- Regularly check the cutterbar oil level:
• Place the cutterbar in horizontal position (with
regards to X and Y axis).
• Remove filler plug (1) and (2) as well as their seals.
• Through filler plugs, check that the oil level (h) is
comprised between 2 and 3 mm (0.08’’ - 0.11’’).
• Top up if necessary.
• Clean and reinstall filler plugs and their seals (1) and
(2). (Replace if necessary).
Before checking that the discs rotate freely by hand:
If in doubt as to the oil quantity contained in
the cutterbar, fully drain and refill cutterbar
respecting recommended oil quantity and
quality.
If it is found that the transmission case is very hot
to touch by hand, there is no cause of alarm
provided:
- Lubrication recommendations have been
respected.
- Discs can be rotated freely by hand when
the machine is hot.
Turn off the engine, remove ignition key and
wait until all moving parts have come to a
complete stop.
X
Y
1
2
