KUHN GMD44 - Page 28

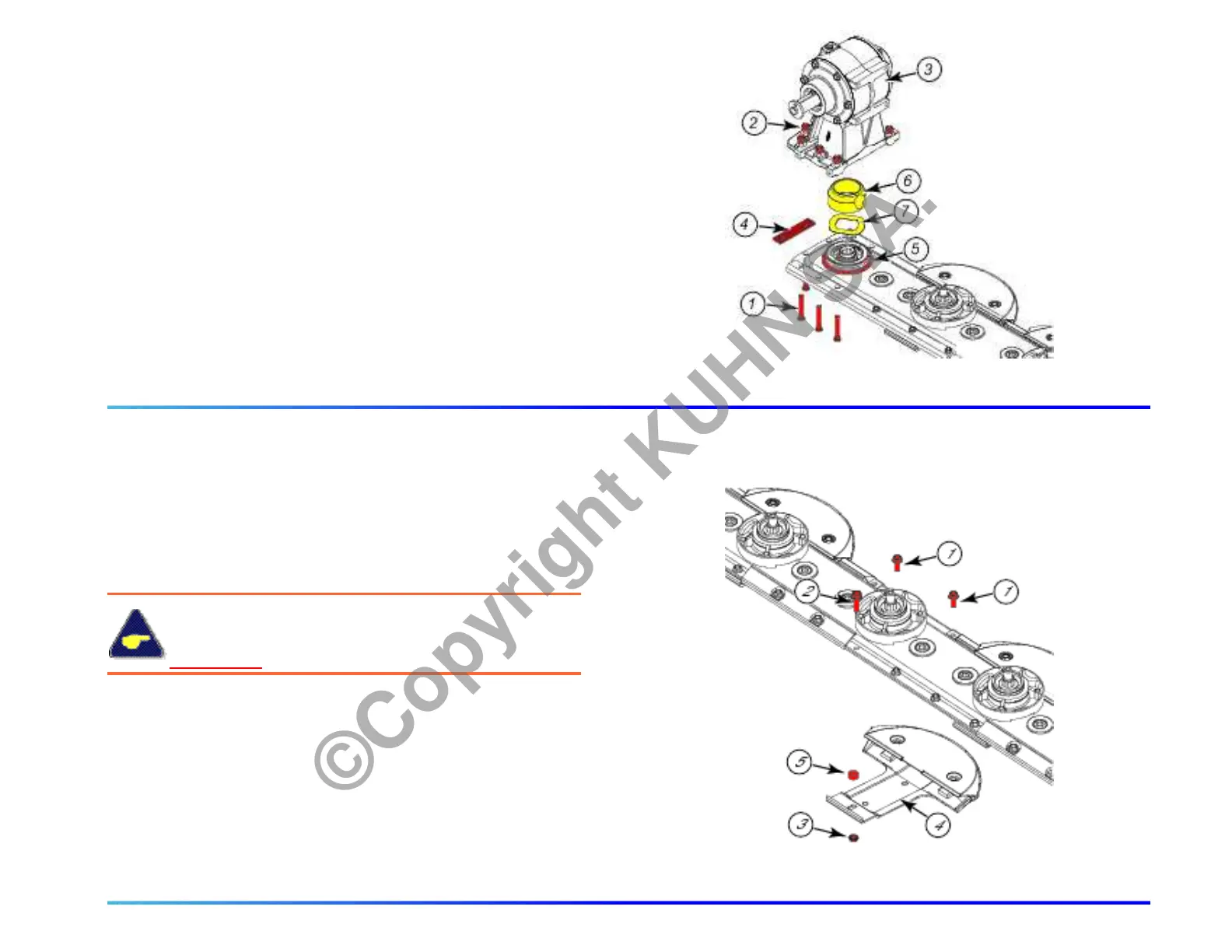

Remove the 8 bolts (1) and nuts (2).
Remove the gearbox (3).
Remove the chock (4).
Remove O - ring (5).
Remove compensation volume (6).
Remove wavy washer (7).
Step 2.
Remove disk guards
Remove 2 bolts (1).
Remove bolt (2) and nut (3).
Remove disk guard (4).
Remove spacer (5).
Note the number and position of the spacers.
See sheet.
