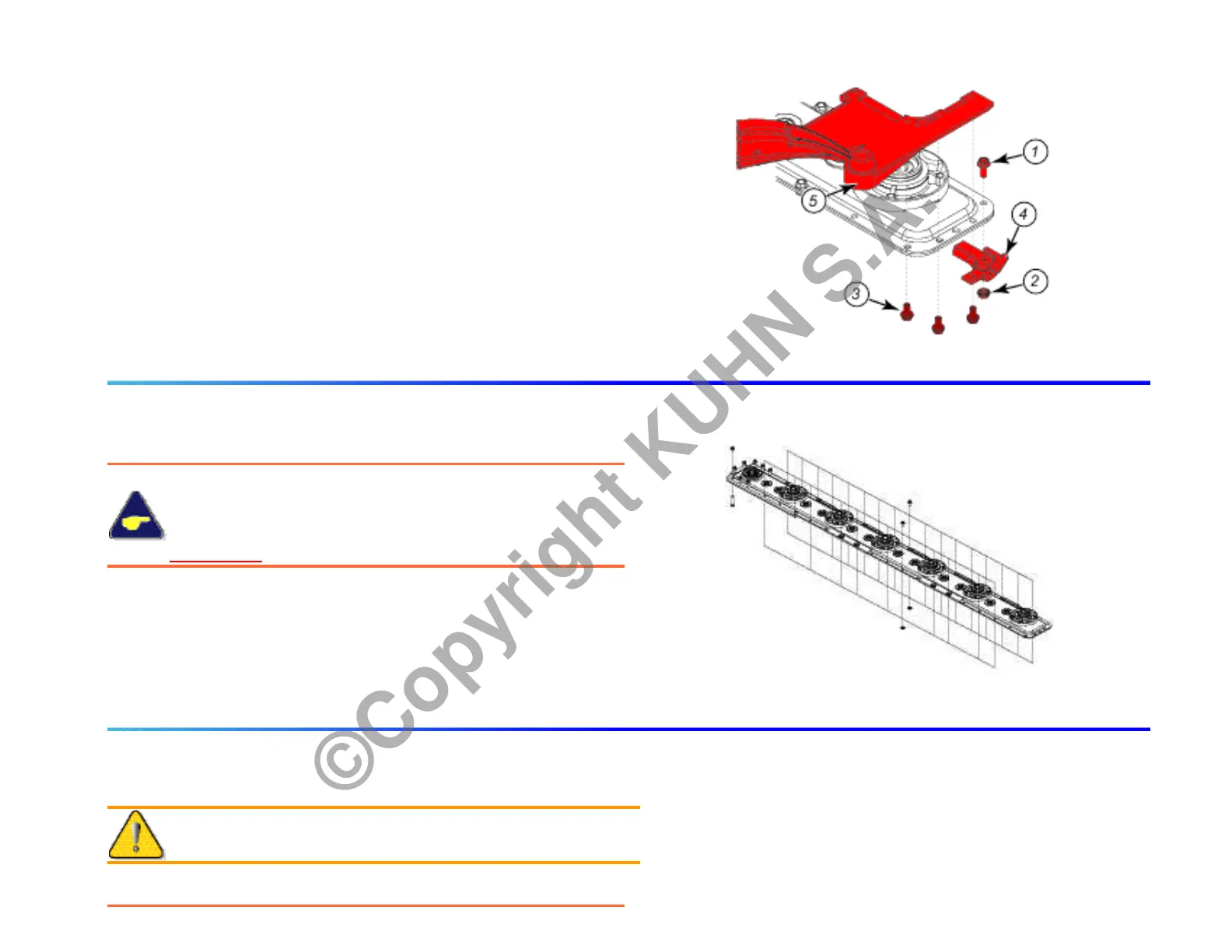

Step 3.
Remove guard angle bracket
Remove bolt (1) and nut (2).
Remove 3 bolts (3).
Remove guard angle bracket (4).
Remove swath board holder (5).
Step 4.
Remove bolts and nuts .
Remove the reinforcement brackets .
Remove wear plates.
Note position of mounting bolts, disk skids and
reinforcements.
See sheet.
Step 5.
To avoid accidents, block and secure the assembly.
