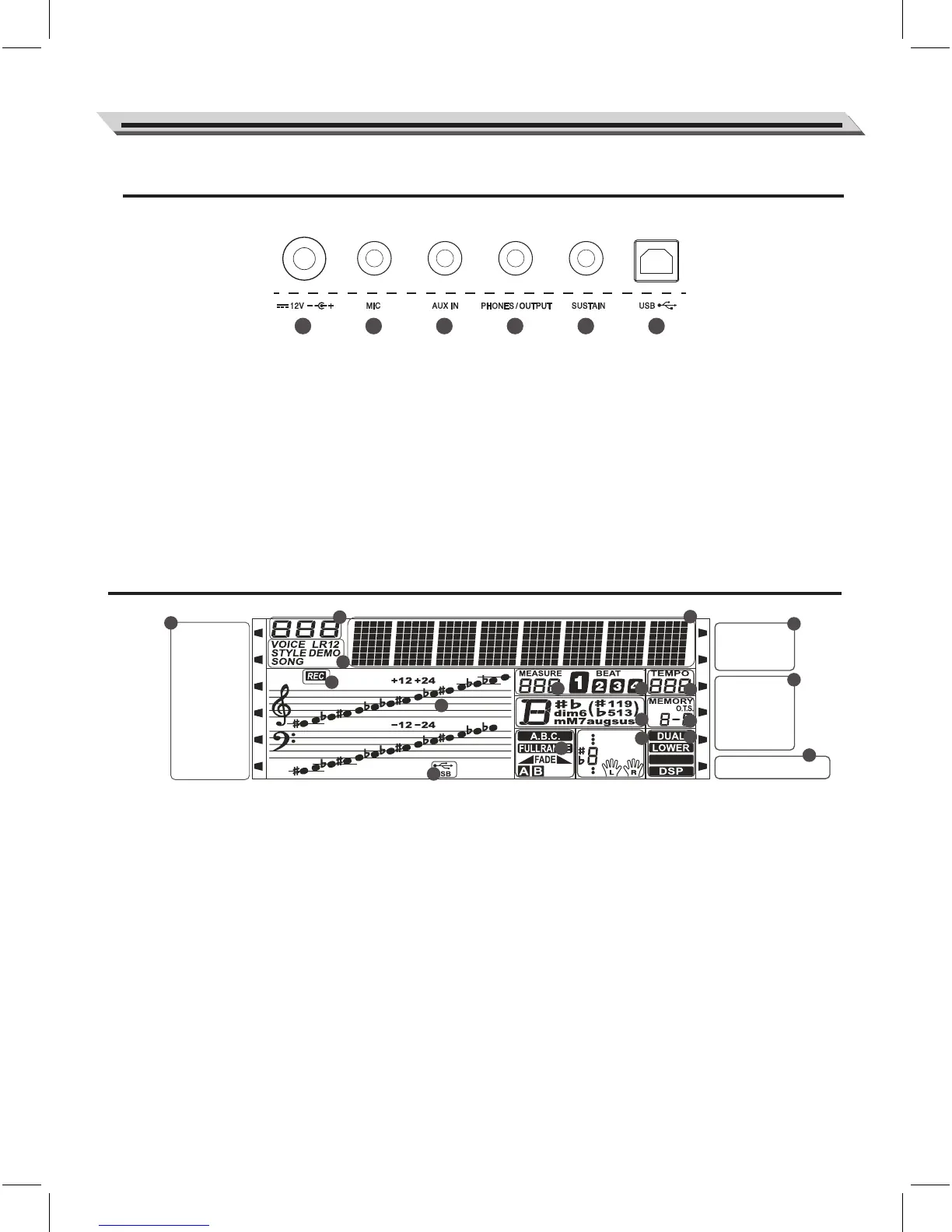

Panel & Display Description
Rear Panel
41. SUSTAIN Jack
Connect a sustain pedal.
42. USB Terminal
Connect to a PC.
39. AUX IN Jack
Connect an external audio source,
such as MP3 or CD player.
40. PHONES/OUTPUT Jack
Connect a pair of headphones or an
audio equipment.
1. ACCOMP/MELODY 1-5
2. SERIES NUMBER
3. VOICE/STYLE/DEMO/SONG
4. CHARACTER
5. RECORD
6. TREBLE CLEF/BASS CLEF
7. USB CABLE
8. MEASURE
9. BEAT
10. TEMPO
11. CHORD
12. MEMORY NUMBER/ONE TOUCH SETTING
13. A.B.C/FULL RANGE/FADE/
ACCOMPANIMENT SECTION
14. NOTE INDICATION/LESSON
15. DUAL/LOWER/HARMONY/DSP
16. PERFORMANCE ASSISTANT/
PERFORMANCE ASSISTANT HIGH
17. SUSTAIN/TOUCH/ALBUM
18. SMART LEARNING
37. DC 12V Jack
Connect the DC 12V power adapter.
38. MIC Jack
Connect a microphone.
