Headphones Jack
and Power
Pedal Height Adjustment Screw
7
9
12
7 9 12

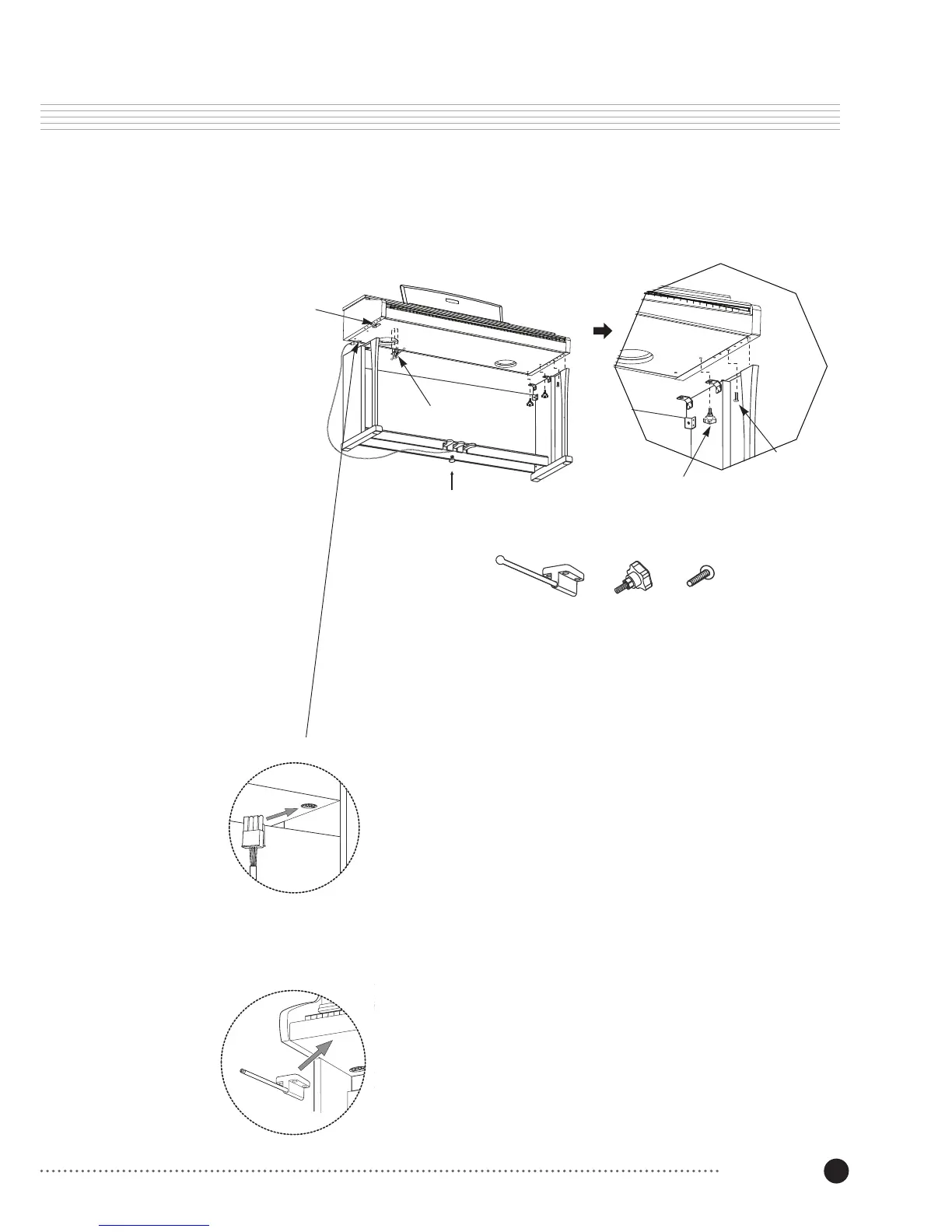

Installing the Keyboard onto the Stand
Place the keyboard on the stand so that the wood pegs on the top
of the side panel fit into the holes on the bottom surface of the
keyboard.
Attach the side panels to the keyboard with the metal brackets.
Use the bolt 12 for the front hole, and 9 for the rear.
Insert the pedal cable connector to the jack on the bottom surface
of the keyboard as shown in the left figure.
Locate the unit to the desired place and rotate the height adjust-
ment screw until it supports the pedal box, preventing the pedal
box from bending when you press the pedals.
Be sure to install the adjustment screw and perform the adjust-
ment precedure before depressing the pedals. Failure to do so
may result in damage to the pedal box.
Attach the headphone hanger wherever you wish.
Pedal Cable
Headphone Hanger
1.
2.
3.
4.
5.
