Assembling the Stand
Be careful when placing the keyboard on the stand. Do not push down or pull
forward the keyboard without tightening all the screws on the stand,
10
10
4
2
3

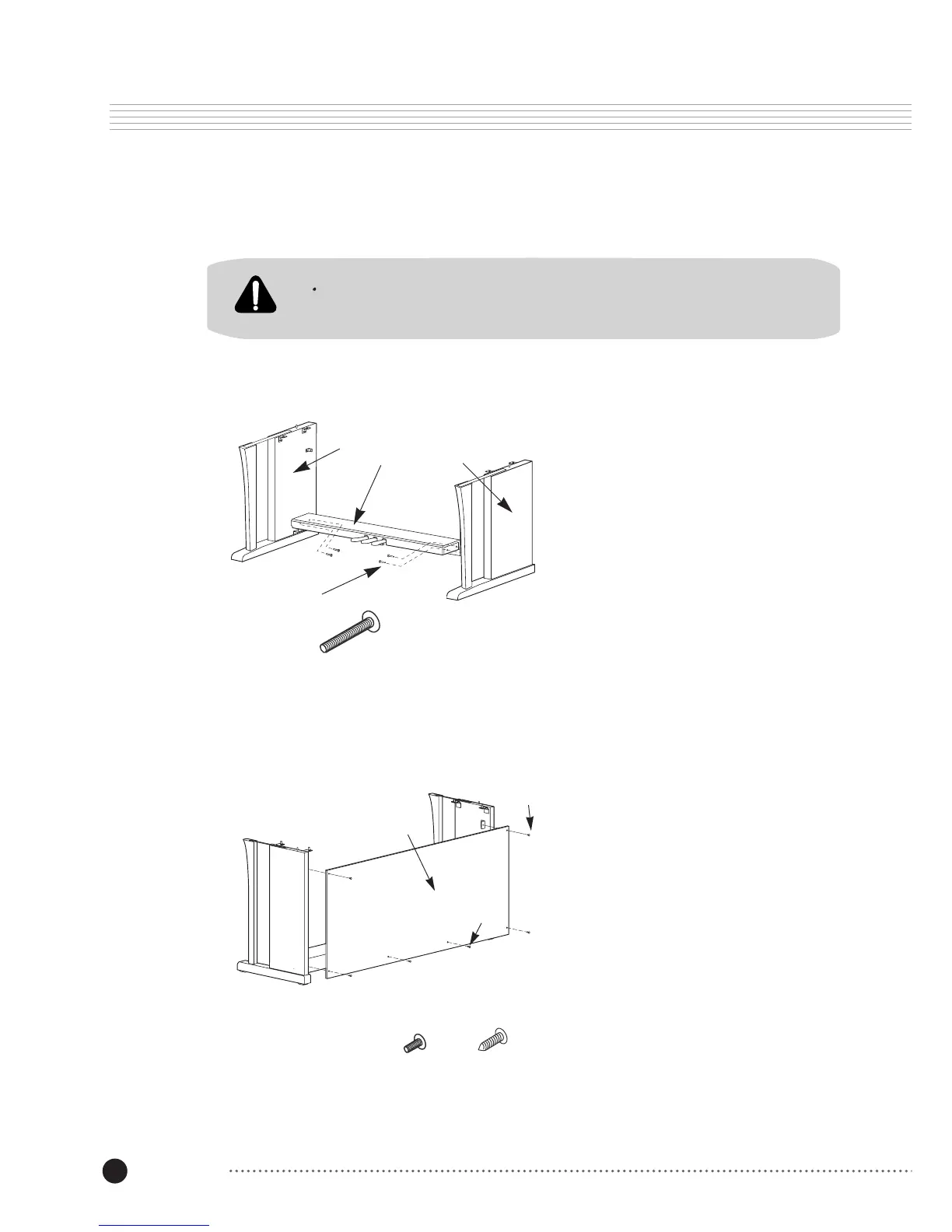

1. Place pedal box 4 on the left side
panel 2 and fasten the screw 10 on the
hole.
2. Put on the right side panel 3 in the same
way.
3. Take out the pedal cable from inside of
the pedal box 4.
1. Fit the rear panel 5 into the side panel
brackets and fasten the screws 8.
2. After fastening all four screws of 8,
fasten the screws 11 to lock to the
pedal box.
11
11
8
8
5
Side Panel and Pedal Assembly
Rear Panel Assembly
To Next Page
