Küschall®Compact
Removing
1.Pullthesiderestbythearmcushionoutoftheholder.
2.Toadjusthoweasyordifcultitistopullthesiderest
outoftheholder,changethedegreetowhichthe
screwsDaretightened.
Installing
1.Pushthesiderestintotheholder .
Adjustingtheheight
1.SlightlyloosenthegrubscrewAontheclampingpart
B.
2.Movetheclampingpartupwardsordownwardsonthe
proleCtothedesiredheight.
3.Re-tightenthegrubscrew.
4.Performthesettingonbothsides.
3.8.3KüschallArmrest
Thisarmrestoptionislockinginplaceandcanbeipped
backwards,swivelledoutwardsandremoved.TheT-armrest
padisheightadjustableandalsolocksinplace.

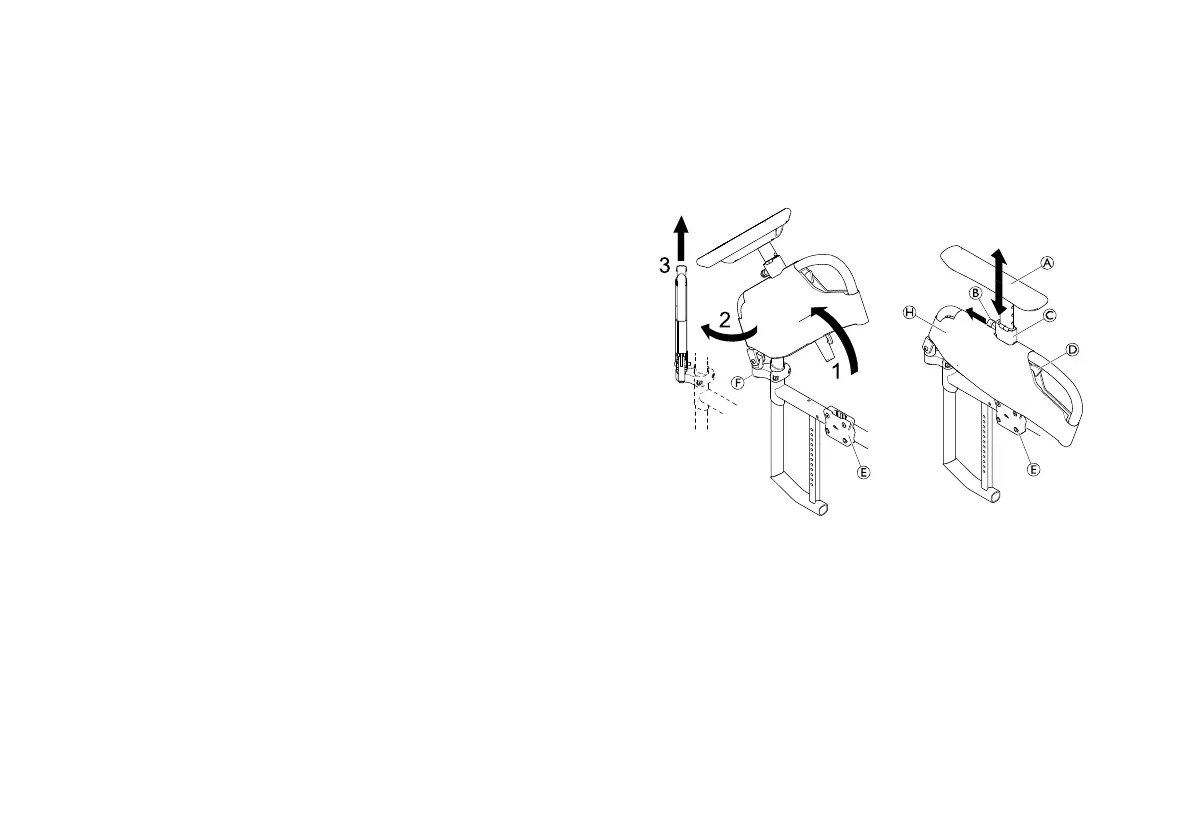

RemovingtheArmrest
1.PushreleaseleverDandswivelthearmrestassembly
upwardsoutofthearmrestholderE.
2.Swivelthearmrestassembly45°outwards.
3.PullthearmrestassemblyupwardsoutofthejointF.
RemovingtheCover
Thecovercanberemovedtobemachinewashedat30°C.
1.PulloutthespringboltlockB,grabtheT-armrestpad
AandpullitoutoftheholderC.
2.RemovethecoverHfromthearmrestassemblyby
openingthehook-and-loopfastenersonbothsides.
181659285-A

Kuschall Compact Series Specifications

General

Foldable	Yes
Frame Material	Aluminum
Max User Weight	130 kg
Wheel Size	24 inches
Total Weight	From 9.3 kg (depending on configuration)
