Kuschall Compact Series User Manual

Options
Unhinging
1.ActivatethereleaseleverA,swingthelegrest
outwards.
2.Pullthelegrestupwards.
Hinging
1.Pushthelegrestdownintoitsreceiverandswingit
forwardsuntilitengages.

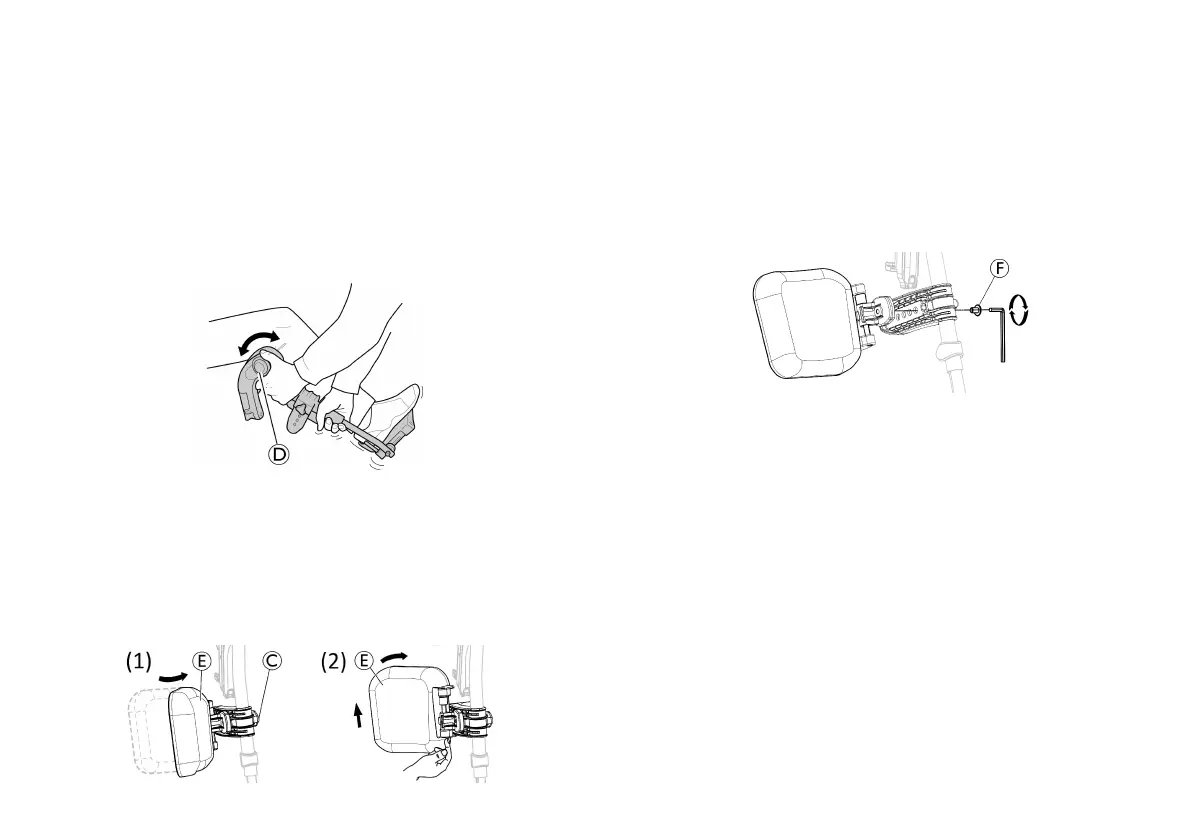

Adjustingangle
Therearesixpresetpositionsavailableforangleadjustment.
1.RotatetheknobDwithonehandwhilesupportingthe
legrestwithyourotherhand.
2.Whenasuitableangleisobtained,letgoofftheknob
andthelegrestwilllockintothedesiredposition.
Swingingcalfpadandadjustments
•Swingingcalfpadforwards(1)orbackwards(2):
1.SwingcalfpadEforwards(1).
2.PullupthecalfpadEandswingitbackwards(2).
•Adjustingheightofcalfpad:
1.LoosenknobC.
2.Adjusttothedesiredheightandrmlytightenthe
knob.
•Adjustingdepthofcalfpad
Thecalfpadhasfourdepthadjustmentoptions:
1.RemovethexingscrewFwith5mmAllenkey.
2.Adjusttooneofthefourpositionsandrmly
tightenthexingscrewF(3–5Nm).
Adjustingfootplate
Therearethreedifferentfold-upfootplatesavailable.
1659285-A
27

Kuschall Compact Series Specifications

General

Foldable	Yes
Frame Material	Aluminum
Max User Weight	130 kg
Wheel Size	24 inches
Total Weight	From 9.3 kg (depending on configuration)
