CONTROL LOCATIONS & FUNCTIONS
INSTRUMENTS & INDICATOR LIGHTS

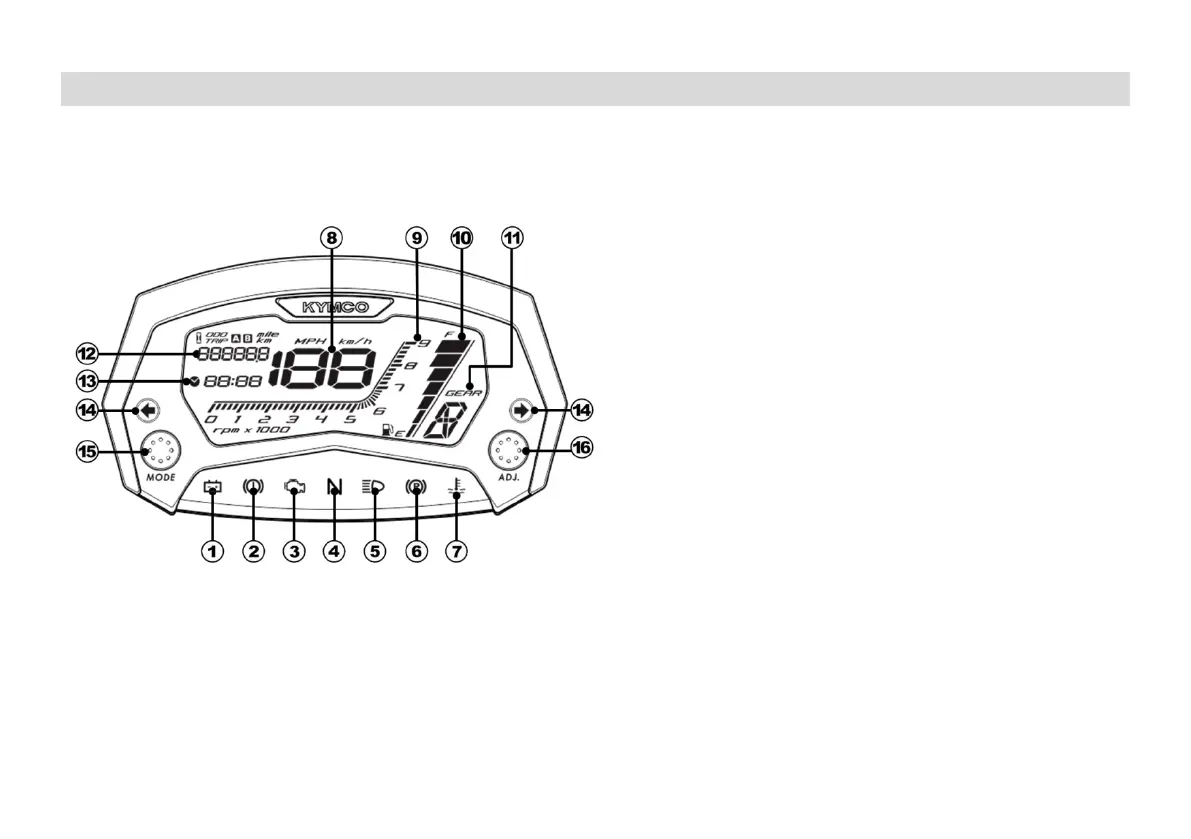

The instruments and indicator lights provide you information
vital to the safe and proper operation of your ATV.
1. Battery Low Voltage Warning
2. Foot Brake Fluid Level Warning
3. CELP Indicator
4. Neutral Gear Position Indicator
5. High Beam Indicator
6. Parking Brake Indicator
7. Coolant Temperature Warning Indicator
8. Speedometer
9. Engine Tachometer
10. Fuel Gauge
11. Gear Position Indicator
12. ODO meter/ Trip meter
13. Digital Clock
14. Turn Signal Indicator
15. MODE Button
16. ADJ Button
To Next Page
