2PK/2PL/2PM/2PN
1-5-23

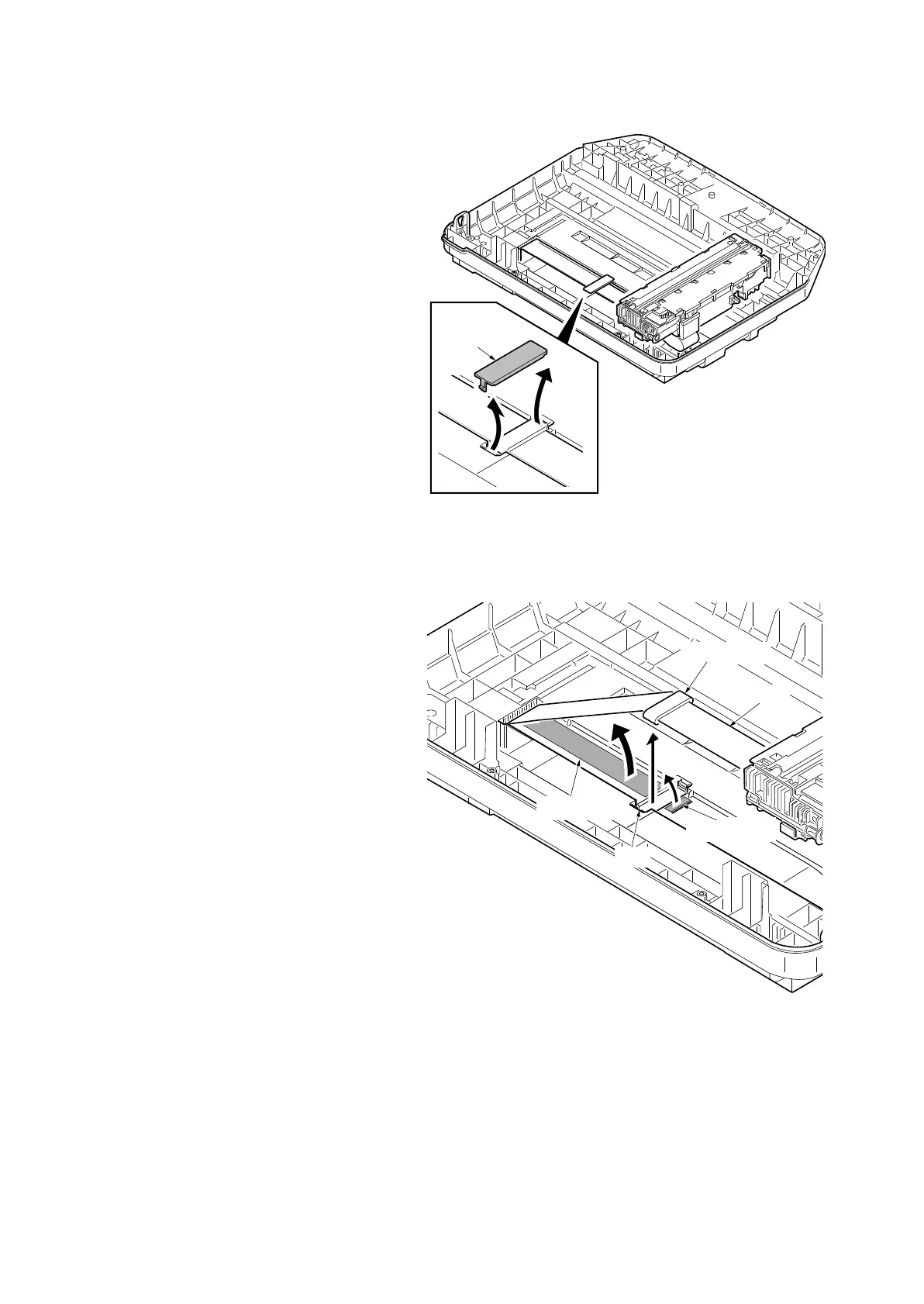

11. Remove the FFC center stopper.
Figure 1-5-32
12. Remove the FFC from the FFC tape D.
13. Remove the ferrite core from the pit.
14. Remove the FFC from the FFC tape A.
Figure 1-5-33
FFC center
stopper
Ferrite core
FFC tape A
Pit
FFC
FFC tape D
