2PK/2PL/2PM/2PN
2-1-13
2-1-5 Transfer/separation section
The transfer/separation section consists of the transfer roller, discharge electrode and paper chute guide. A
high voltage generated by the high voltage PWB is applied to the transfer roller for transfer charging. Paper
after transfer is separated from the drum.

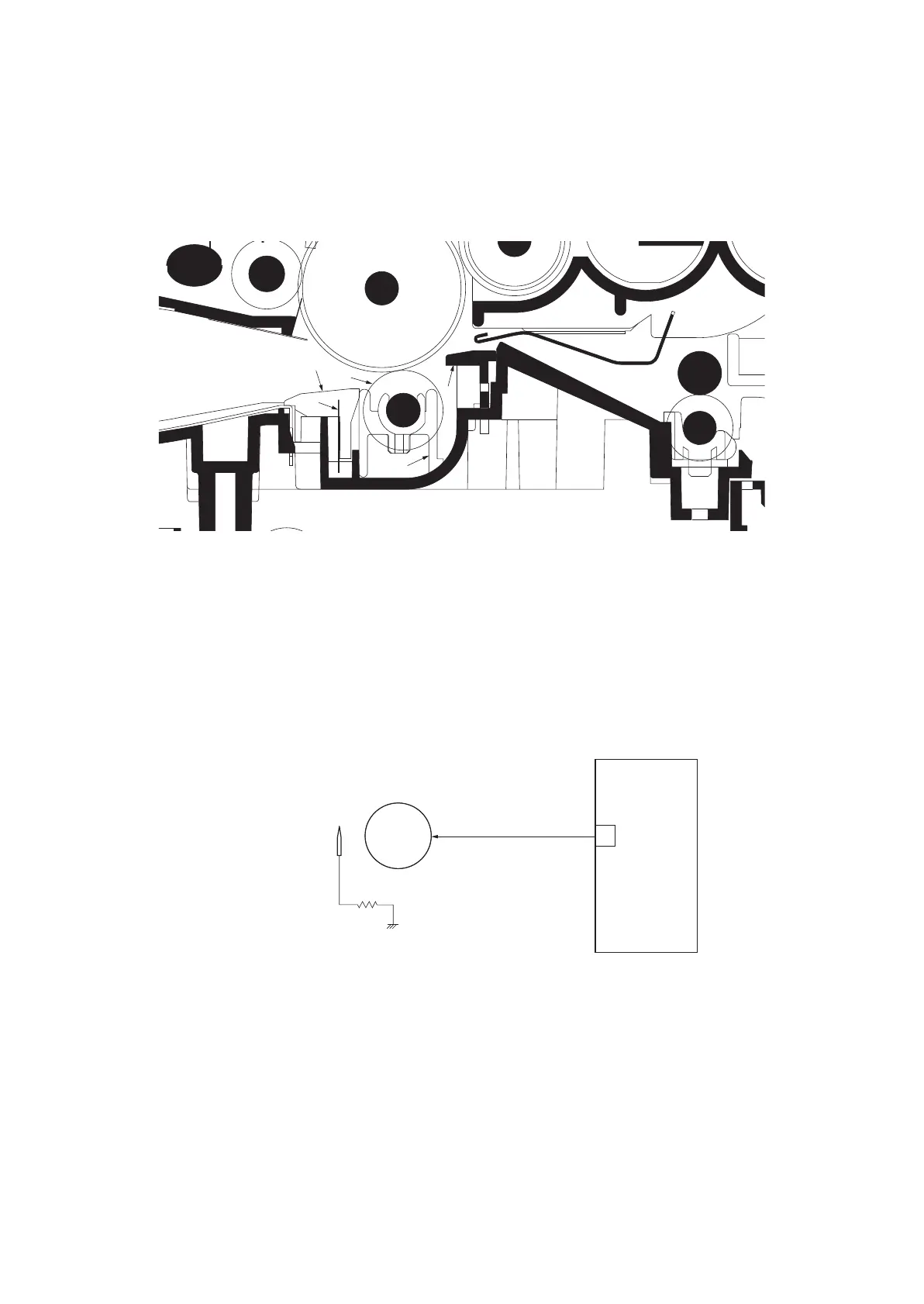

Figure 2-1-17 Transfer/separation section
Figure 2-1-18 Transfer/separation section block diagram
1
2
3
4
5
1. Transfer roller
2. Transfer bushes
3. Discharge electrode
4. DC brush holder
5. Paper chute guide
T
Transfer
roller
GND
HVPWB
Transfer bias
Discharge
electrode
To Next Page
