2PK/2PL/2PM/2PN
1-5-52
(2) Detaching and refitting the DP drive PWB
Follow the procedure below to check or replace the DP drive PWB.
Procedure
1. Remove the DP rear cover.
(See page 1-5-51).
2. Remove eight connectors from the DP
drive PWB.
3. Remove the screw and then remove the
DP drive PWB.
4. Check or replace the DP drive PWB.
Refit all the removed parts.

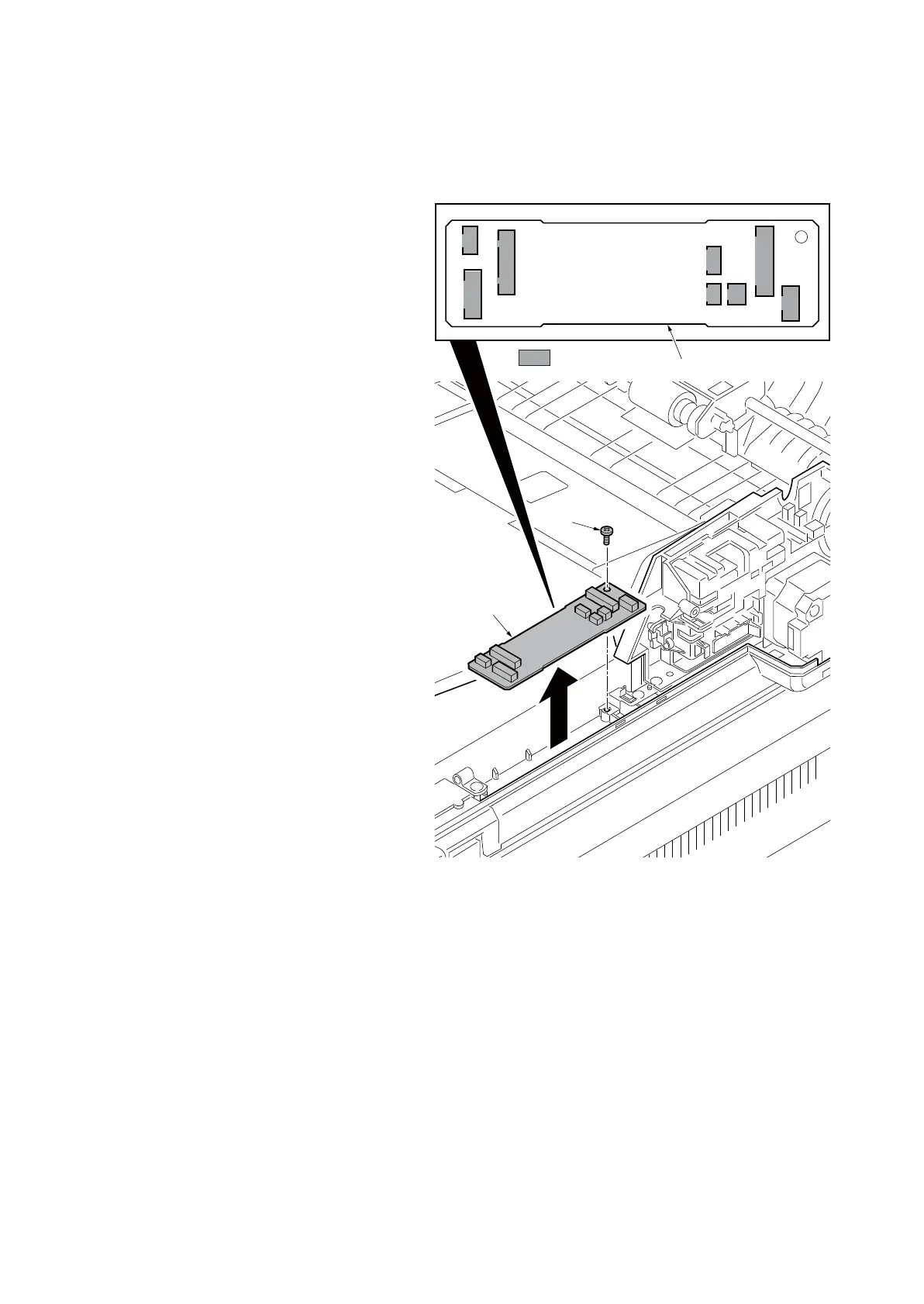

Figure 1-5-78
Screw
YC1
YC8
YC7
YC6
YC4
YC2
YC3
YC5
DP drive PWB
DP drive PWB
Connector
