Kyocera ECOSYS M2030dn/PN - Outer Covers; Detaching and Refitting Left;Right Covers

2PK/2PL/2PM/2PN
1-5-3
1-5-2 Outer covers
(1) Detaching and refitting the left cover and right cover
Procedure
1. Remove the screw.
2. Unhook four hooks and then remove
the rear upper cover.

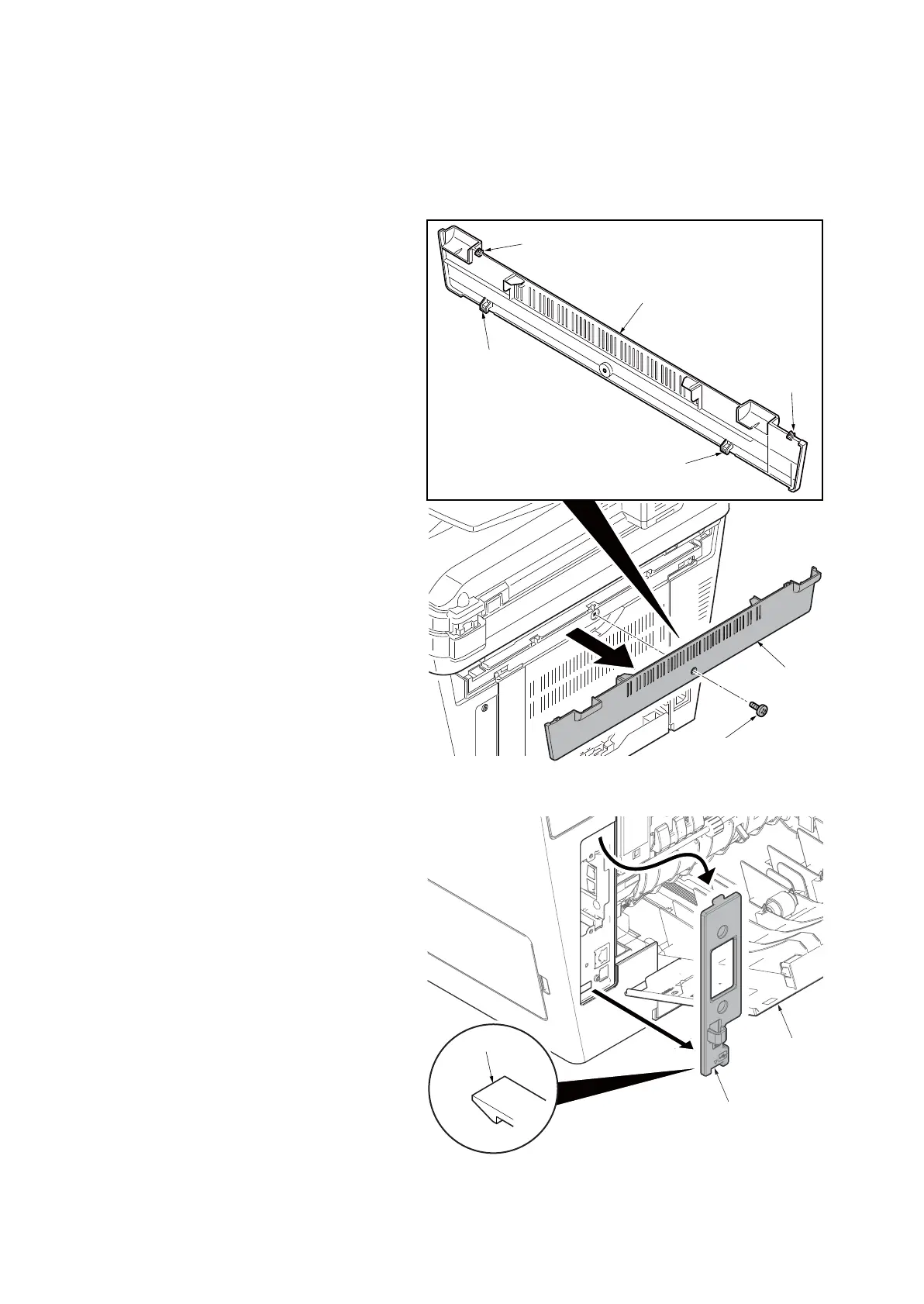

Figure 1-5-3
3. Remove the cassette
(See page 1-5-6).
4. Open the front cover.
5. Unhook the hook and then remove the
controller box cover.
Figure 1-5-4
Screw
Hook
Hook
Hook
Hook
Rear upper cover
Rear
upper cover
Controller box cover
Hook
Rear cover
