Installing and Setting up the Machine > Part Names (Machine Exterior)

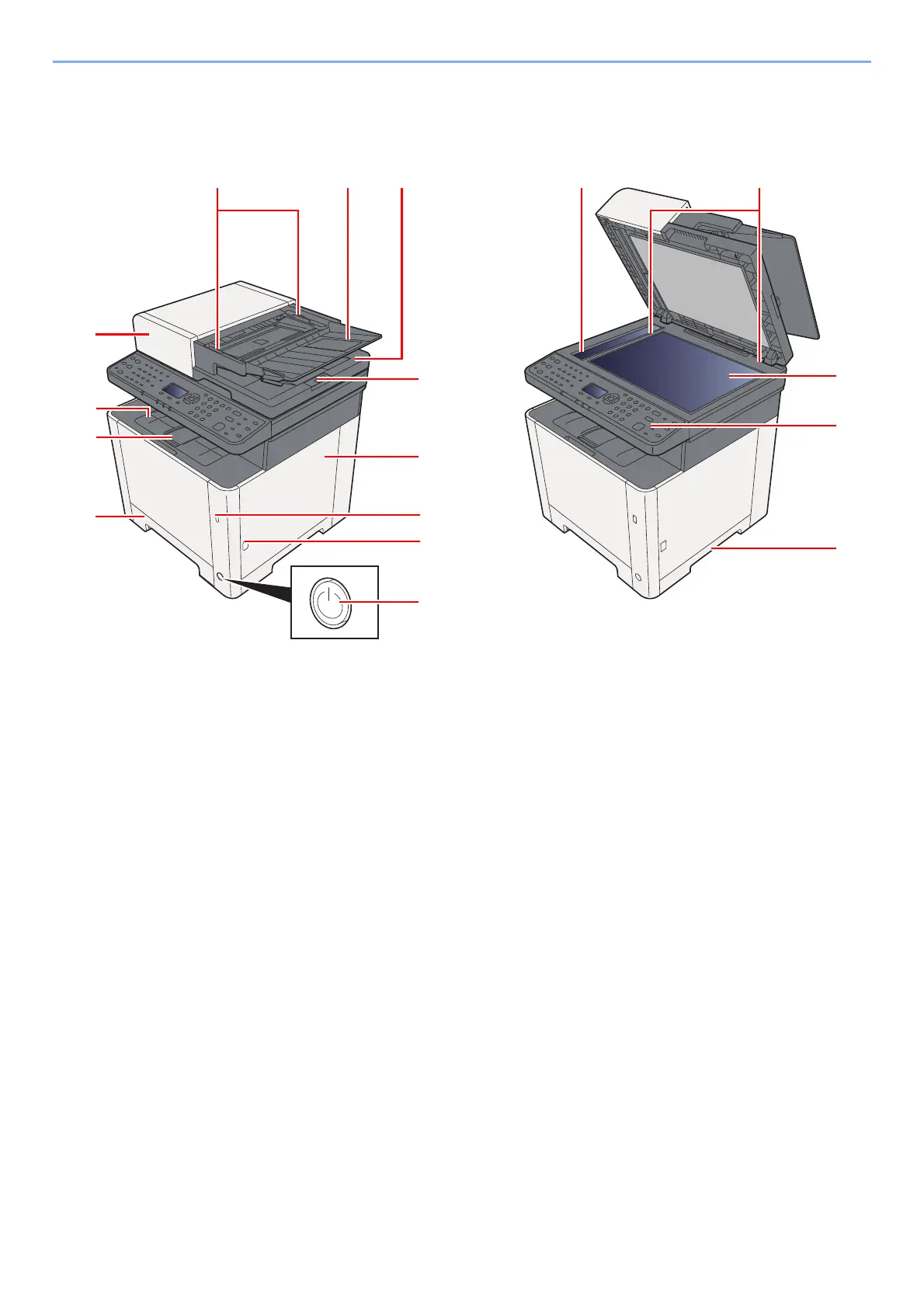

Part Names (Machine Exterior)

1 Document Processor

2 Inner Tray

3 Paper Stopper

4 Cassette 1

5 Power Switch

6 Front Cover Open Button

7 Original Eject Table

8 Original Stopper

9 Original Table

10 Original Width Guides

11 Slit Glass

12 Operation Panel

13 Platen

14 Original Size Indicator Plates
