8-31

Troubleshooting > Clearing Paper Jams

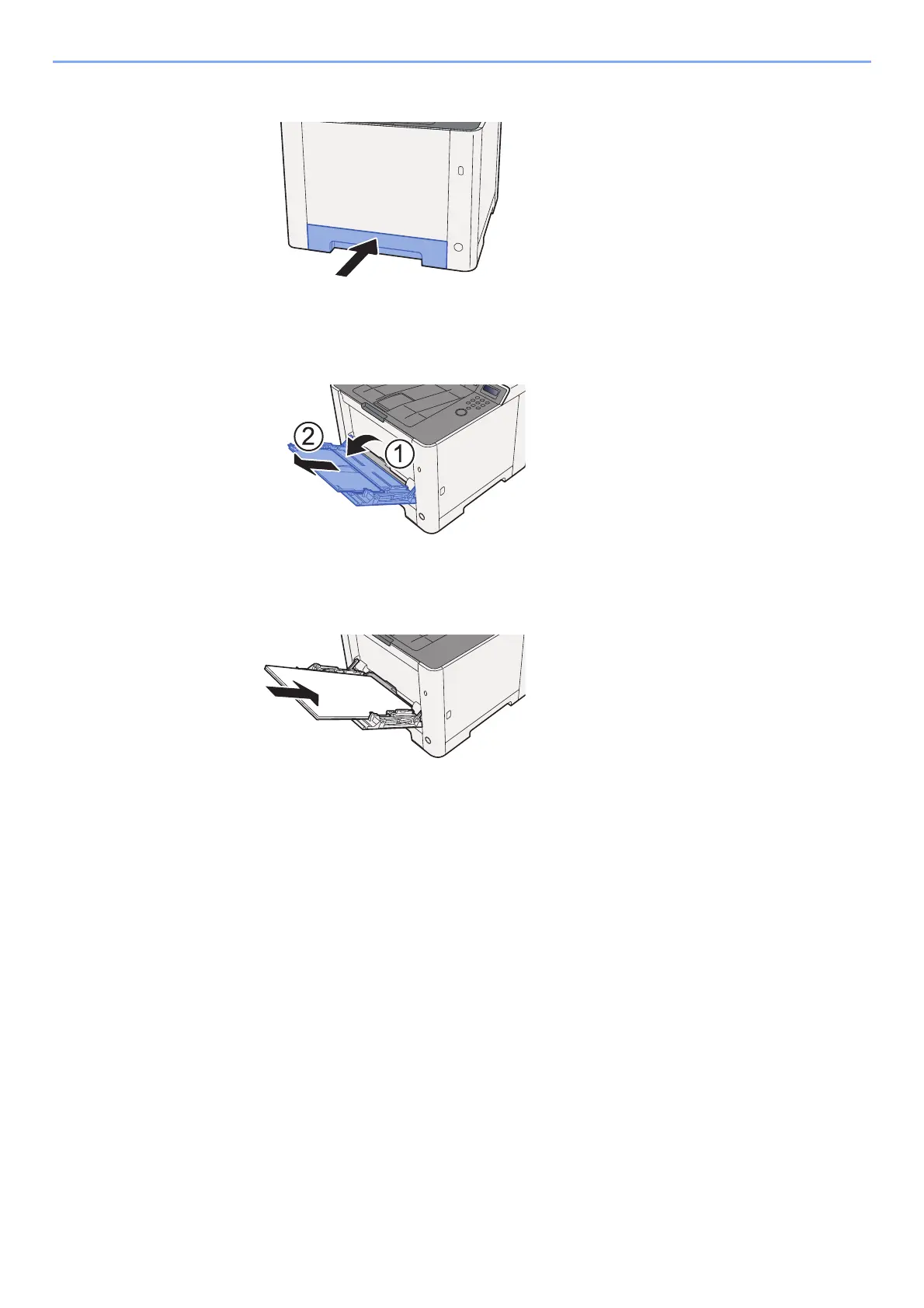

Push Cassette 1 back in.

Open the multipurpose tray.

Reload the paper.
