2PR
1-5-24
1-5-7 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Remove the outer covers (See page 1-5-3).
2. Remove five connectors.

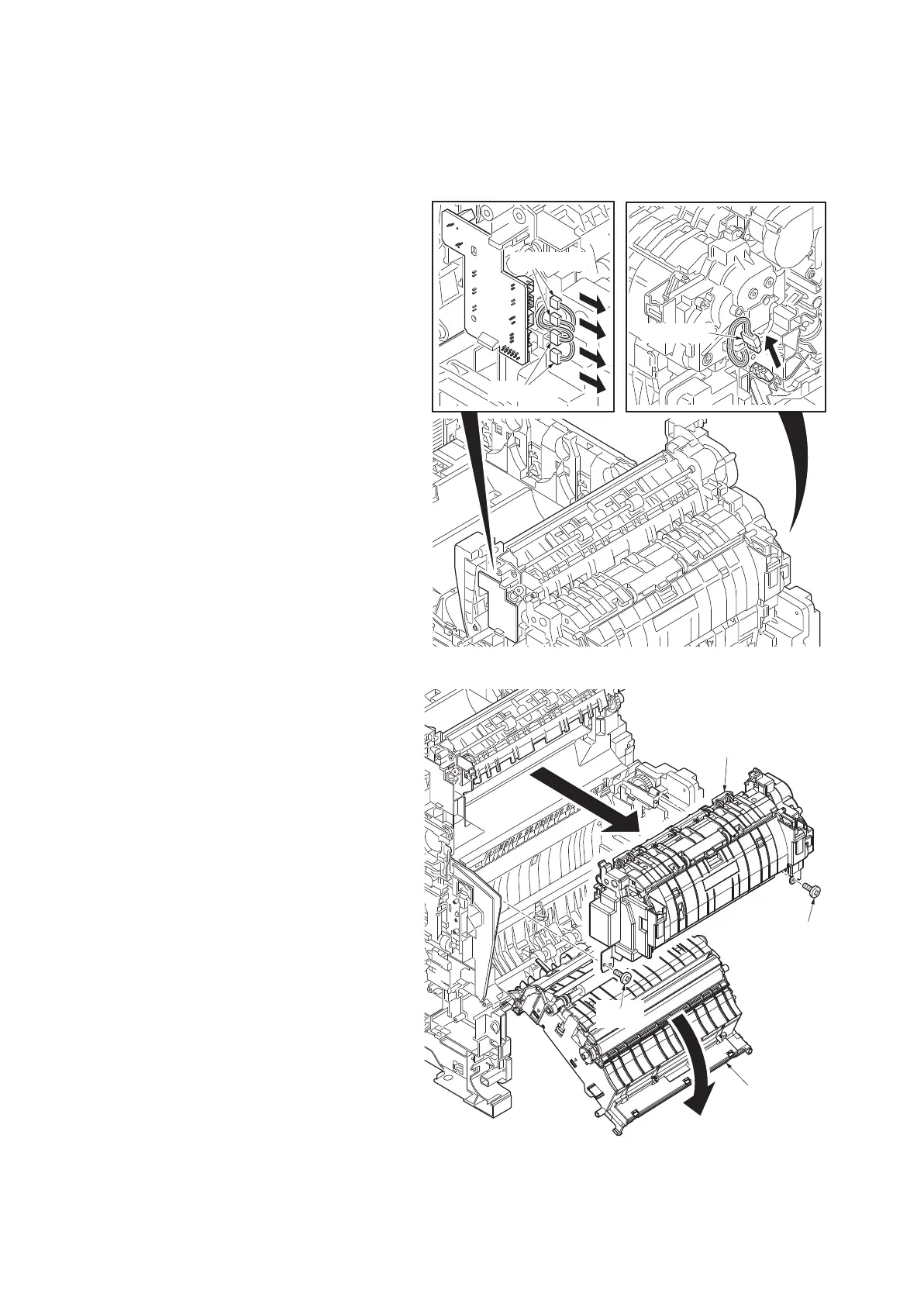

Figure 1-5-31
3. Open the duplex unit B.
4. Remove two screws.
5. Remove the fuser unit.
6. Check or replace the fuser unit and refit all
the removed parts.
Figure 1-5-32
Connector
Connectors
Connectors
Screw
Screw
Duplex unit B
Fuser unit
To Next Page
