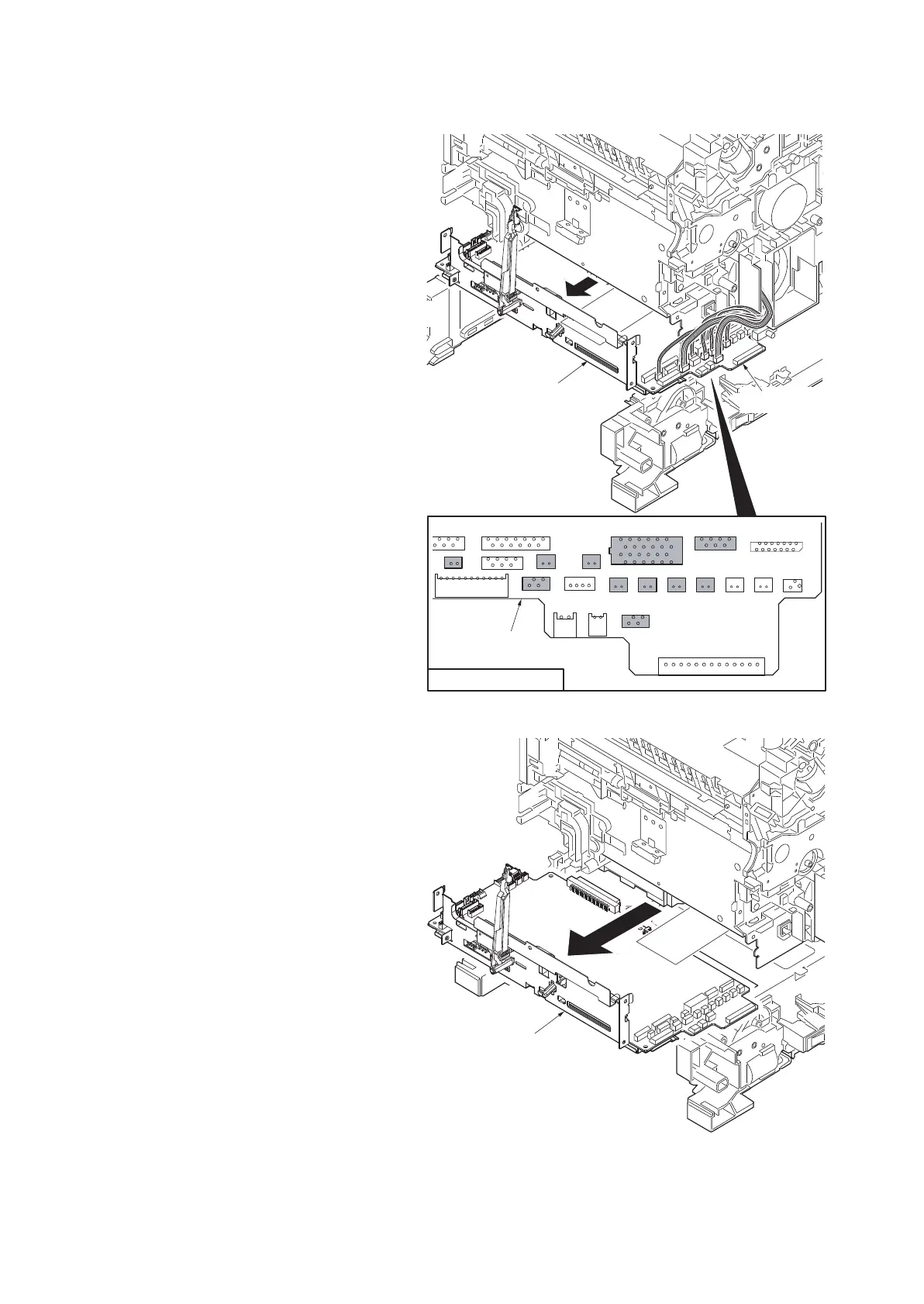

10. Draw the engine PWB assembly slightly.
11. Remove eleven connectors from the engine
PWB.
Figure 1-5-41
12. Remove the engine PWB assembly.
Figure 1-5-42
YC25
YC24
YC23
YC22
YC40
YC17
YC15
YC618
YC616
YC608
YC27
Engine PWB assembly
Connectors (eleven)
Engine PWB
Engine PWB
Engine PWB assembly
