Kyocera ECOSYS P7035cdn - Page 128

2PR
1-5-42
1-5-9 Others

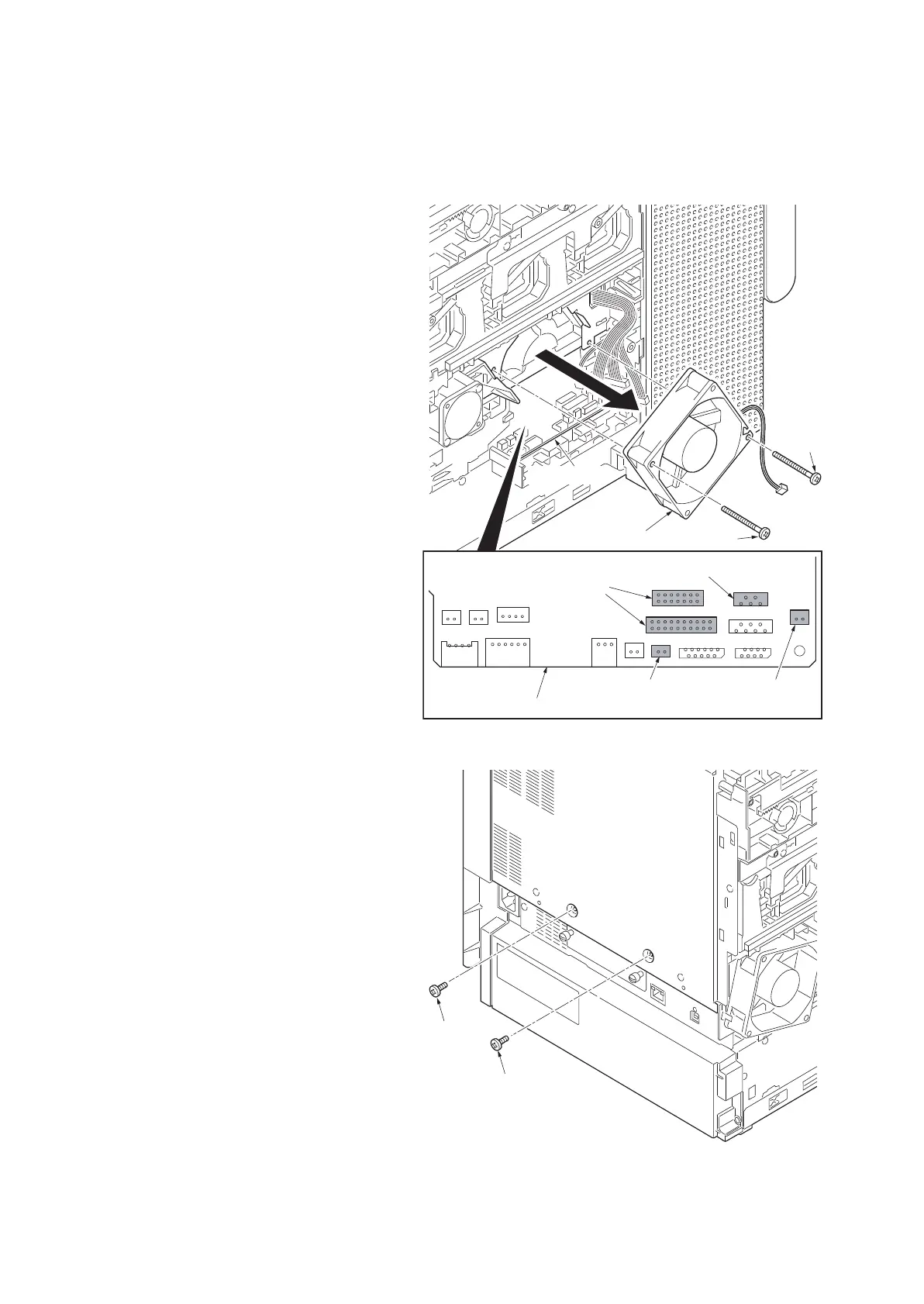

(1) Detaching and refitting the laser scanner unit
Procedure
1. Remove the left rear cover (See page 1-5-
12).
2. Remove the all developing units (See page
1-5-12).
3. Remove two screws and then remove the
developing fan motor 1.
4. Remove five connectors.
Figure 1-5-59
5. Remove two screws.
Figure 1-5-60
YC10
YC604
YC37
YC607
YC606
Screw
Screw
Developin fan motor 1
Engine PWB
Engine PWB
Connector
Connector
Connector
(Developin fan motor 1)
Connectors
Screw
Screw
