(2) Removing the tape, installation guide, stoppers, panel sheet and upper inner pad assembly
<Procedure>
1. Remove the tape-A and then remove the
installation guide.
2. Remove two tapes-B and then remove two
stoppers.
3. Remove three tapes-C.
4. Remove the panel sheet.

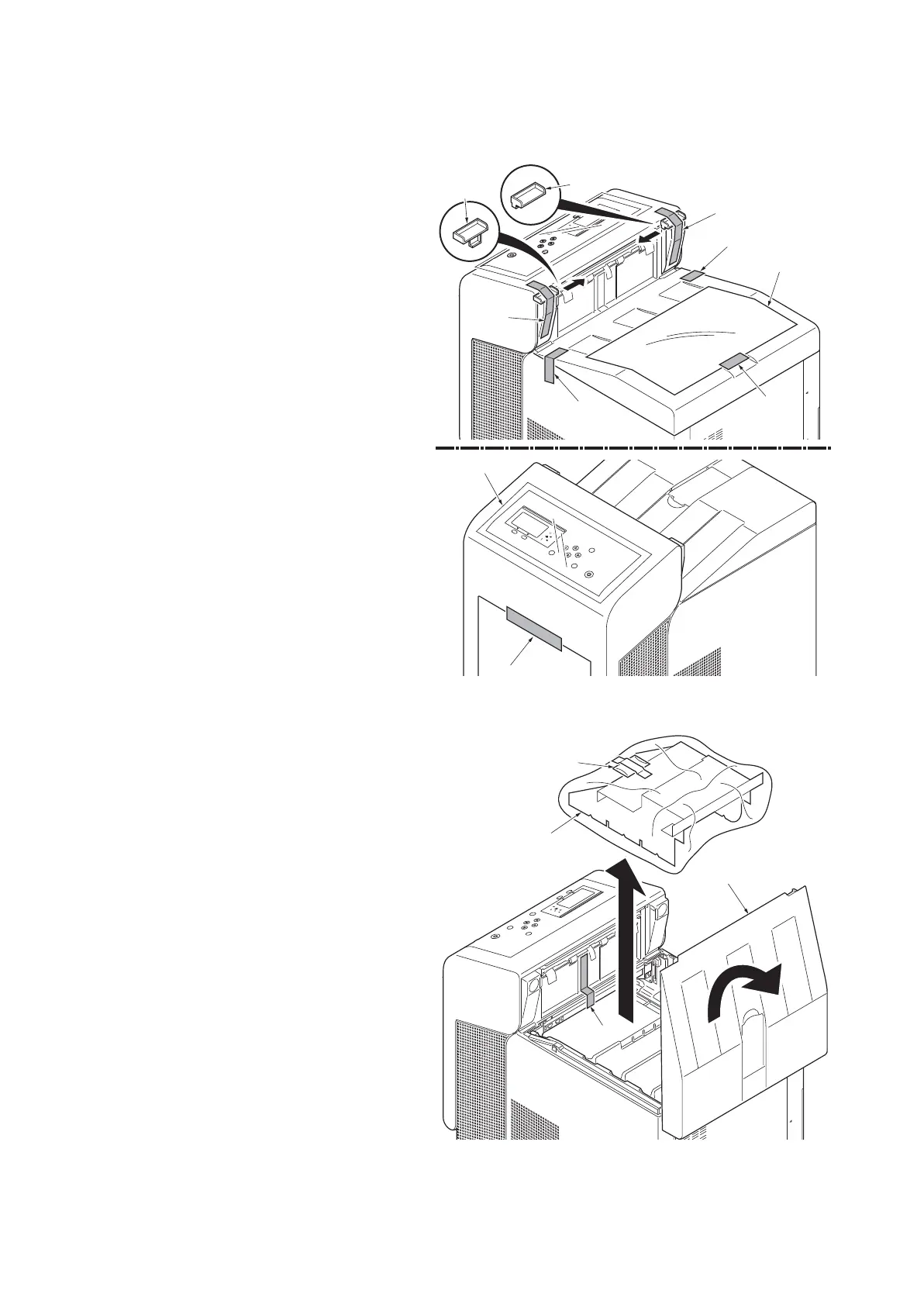

Figure 1-2-4
5. Open the top cover.
6. Remove the upper inner pad assembly.
7. Remove the tape.
Figure 1-2-5
Panel sheet
Tape-C
Tape-C
Tape-C
Tape-B
Tape-B
Stopper
Stopper
Tape-A
Installation guide
Tape
Top cover
(Desiccating agent)
Upper inner pad assembly
To Next Page
