1-2-4 Installing the SD card (option)
<Procedure>
1. Turn off printer power switch.
Caution:
Do not insert or remove SD card while
printer power is on.
Doing so may cause damage to the printer
and the SD card.
2. Remove the two screws and the option
interface slot cover.

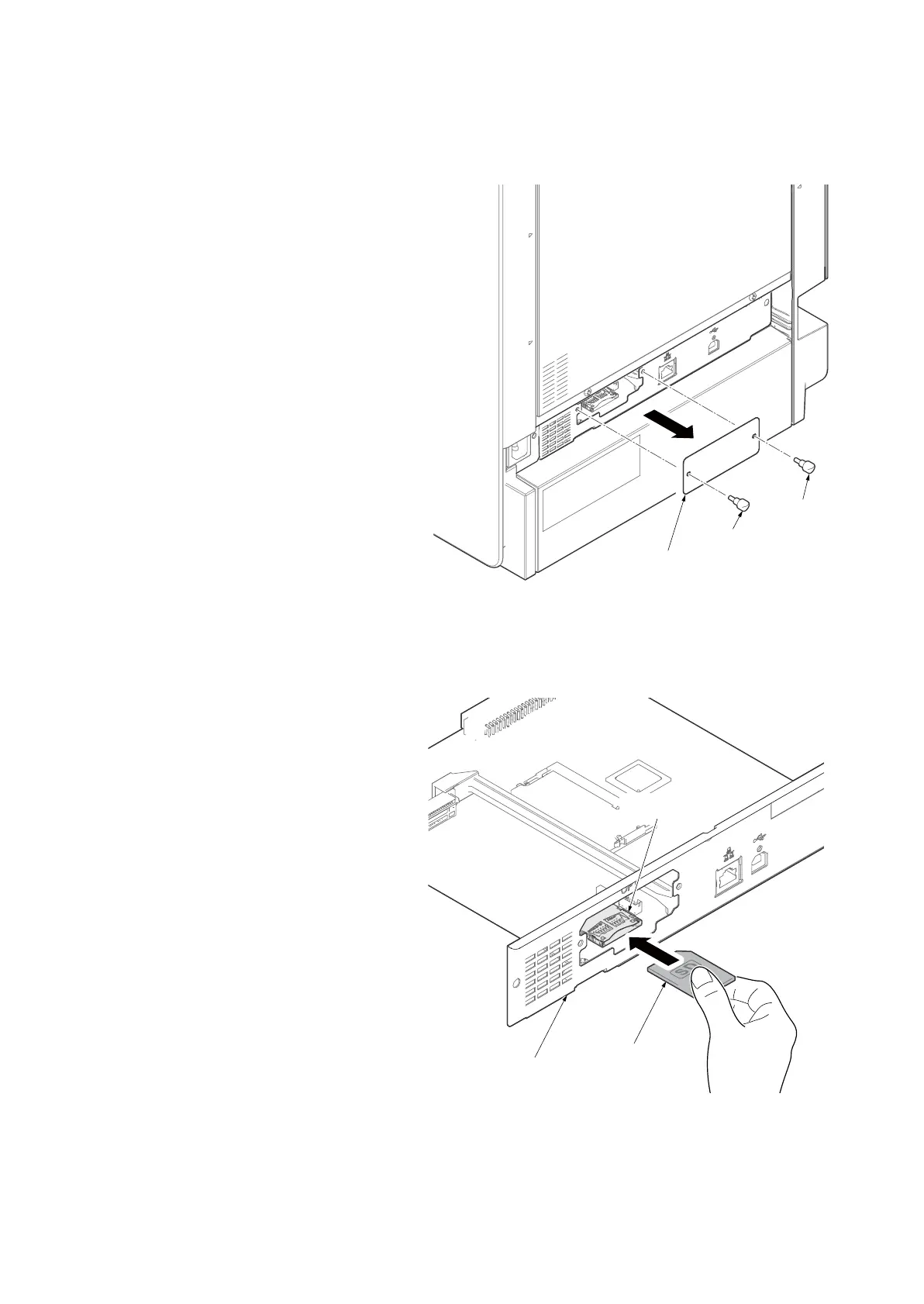

Figure 1-2-8
3. Insert the SD card into the SD card slot.
Push it in all the way.
4. Refit the option interface slot cover.
Figure 1-2-9
Option interface
slot cover
Screw
Screw
Main PWB
SD card slot
SD card
