Kyocera FS-1350DN Service Manual

2H4
2-3-4

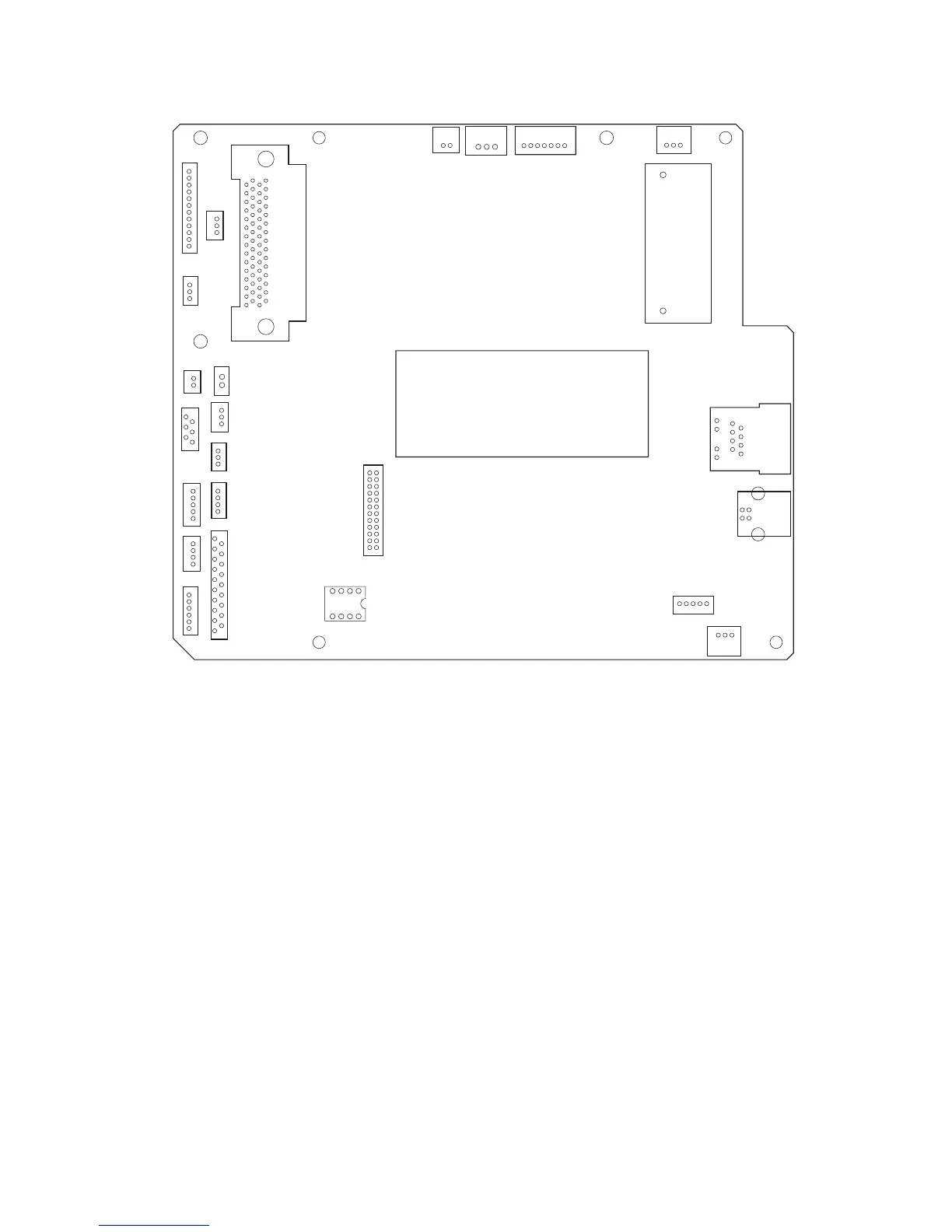

Figure 2-3-4 Control PWB silk-screen diagram
YC9
YC332
YC335
YC334
YC331
YC339
YC337
YC11
1 2
23 24
U300
YC344
YC301
YC330
YC340
YC341
YC1
YC338
1
1
1
1
1 2
1
1
1
1
1
2
19
18
1
5
4
6
4
13
3
6 5
1
2
2
3
A1 A2
B1 B2
3
12
A29 A30 B29 B30
YC8
YC3
YC6
YC333
5
1
1 4
1
12 9
2
7 8
2 3
1
3
YS1
143
144
1
2
1
26
YC2
25
31
YC4
YC343 YC7YC342
1
12
37 1
50

Kyocera FS-1350DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Processor model	PowerPC–440F5
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Power supply type	AC 220 - 240 V, 50/60 Hz
Capacity cartridge	7200 sheets
Standard media sizes	(105 x 148 - 216 x 297 mm)
Power consumption (active)	484 W
Compliance industry standards	TUV/GS, CE
Number of print cartridges	1
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum print size	216 x 356 mm
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power consumption (standby)	12 W
Power consumption (PowerSave)	7.1 W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 267 mm
