Kyocera FS-6030MFP

LE 04 Maintenance LE 04 Maintenance
Cover disassembling
Most of the cover parts are fixed without
screws. It’s important to look at the hook
points and to know the proper sequence
points
and
to
know
the
proper
sequence
for disassembling.

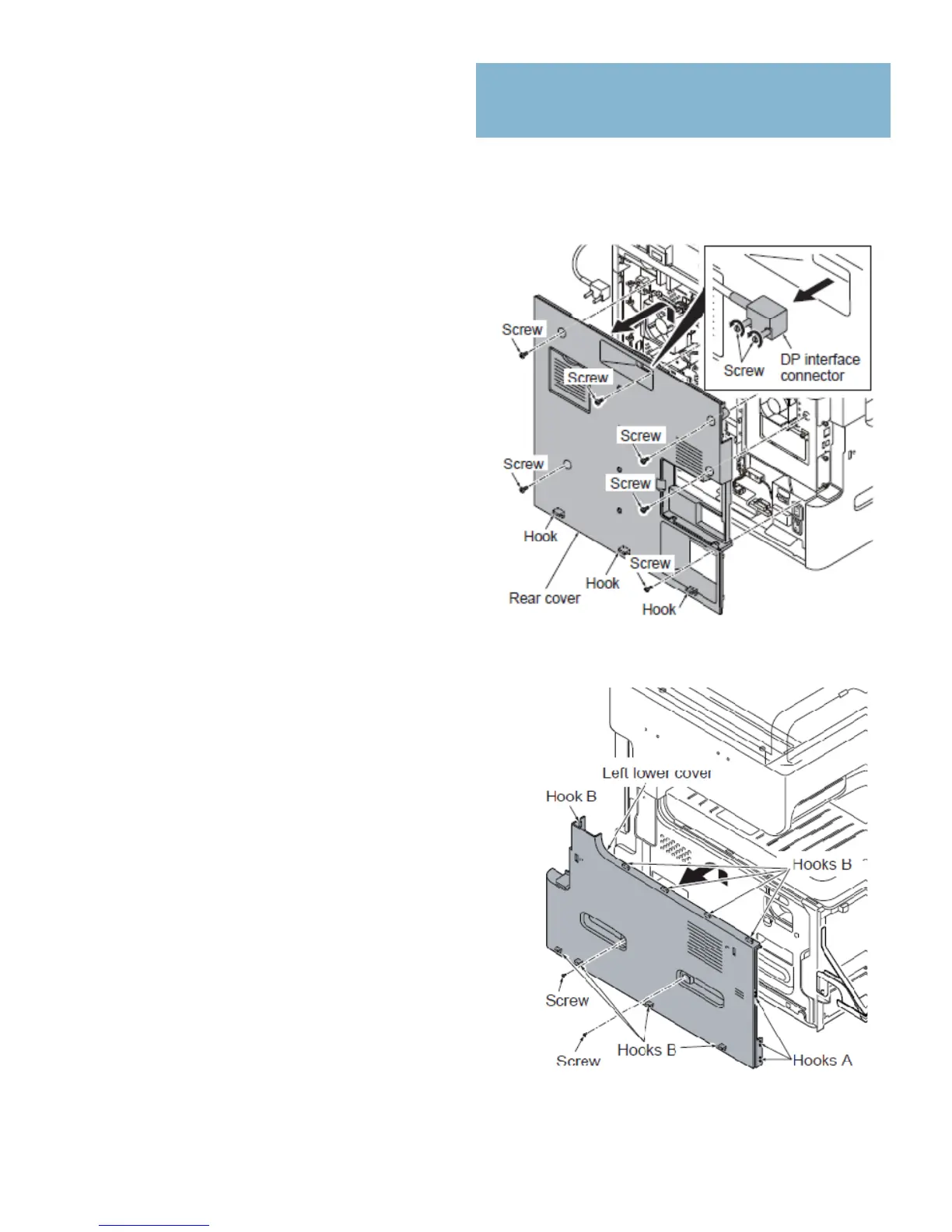

We start with the Rear cover.
Firstly remove the DP-connector.
Then remove 6 screws (see picture at
the right) and pull the rear cover upwards
and release 3 hooks.
And now to the Left lower cover.
Firstly remove the upper cassette and
open the front cover.
Remove 2 screws.
Release 3 hooks (A).
Pull the left cover upwards and release 9
hooks (B).
Remove the cover.
