Kyocera FS-920 - Image Quality and Mechanical Problems

2GL/2FV/2FW
1-5-17

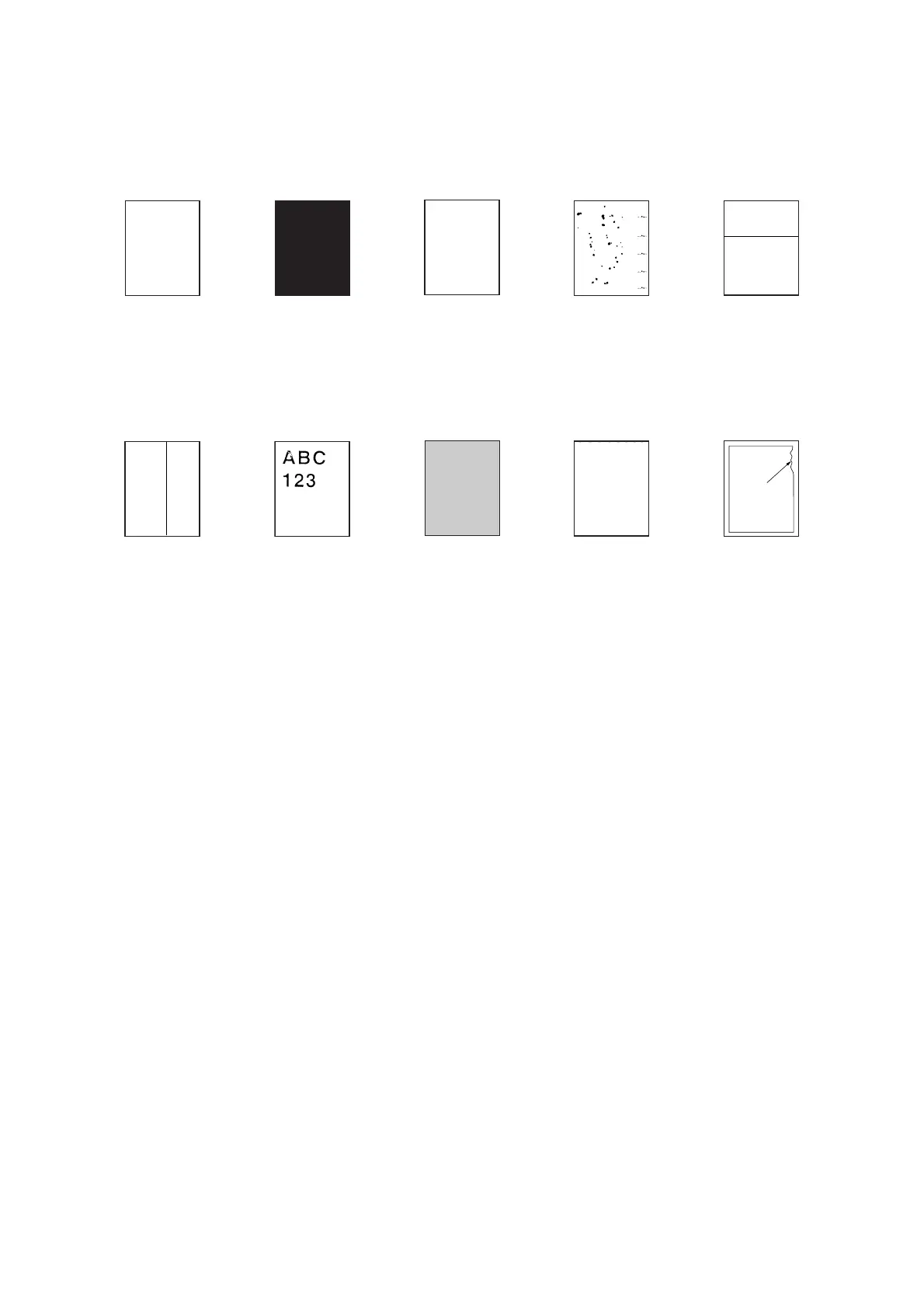

1-5-4 Image formation problems
(1) Completely
blank printout.
(2) All-black print-
out.
(3) Dropouts. (4) Black dots. (5) Black horizon-
tal streaks.
See page 1-5-18. See page 1-5-18. See page 1-5-19. See page 1-5-19. See page 1-5-20.
(6) Black vertical
streaks.
(7) Unsharpness. (8) Gray back-
ground.
(9) Dirt on the top
edge or back of
the paper.
(10)Undulated print-
ing at the right
edge (scanning
start position).
See page 1-5-20. See page 1-5-21. See page 1-5-21. See page 1-5-22. See page 1-5-22.
ABC
123
ABC
123
ABC
123
ABC
123
ABC
123
ABC
123
This vertical
line should
be straight.
