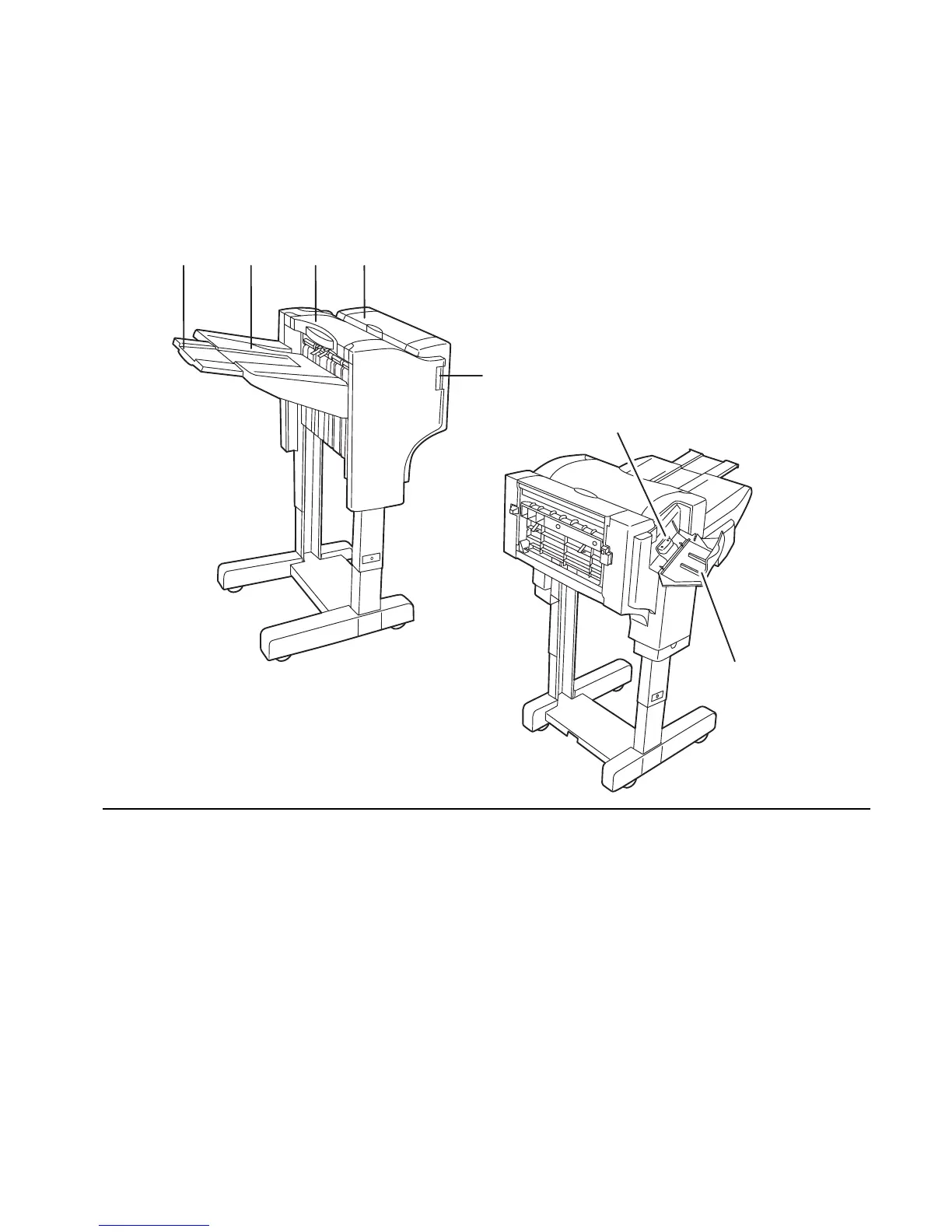

5
(2) (1) (5) (4)
(3)
(7)
(6)
(1) Ejection tray
Copies and printouts will be ejected onto this tray.
(2) Ejection tray extension
Pull this extension out when you want to copy or
print onto 11" × 17", 8
1/2
" × 14", B4 or A3 size
paper.
(3) Finisher release button
Push this button when you want to separate the
Document Finisher from the copier (or printer).
(4) Reversing unit cover
Open this cover if a paper jam occurs inside of the
Document Finisher.
(5) Top cover
Open this cover if a paper jam occurs inside of the
Document Finisher.
(6) Stapler cover
Open this cover when you want to replenish
staples.
(7) Staple holder
The staple cartridge is installed here. Pull out this
holder when you want to replenish staples.
Names of parts
