Kyocera KM-4050 Service Manual

2GN/2GP/2GR-1
1-3-37
U089
Outputting a MIP-PG pattern
Description
Selects and outputs the MIP-PG pattern created in the machine.
Purpose
To check copier status other than scanner when adjusting image printing, using MIP-PG pattern output (with-
out scanning).
Method
1. Press the start key.
2. Select the MIP-PG pattern to be output and press the start key.
3. To change the output conditions of MONO-LEVEL and 1dot-LINE, use the +/- or numeric keys to change
the preset values and press the start key to register the setting.
4. Press the system menu key.
5. Press the start key. A MIP-PG pattern is output.
6. To return to the screen for selecting an item, press the system menu key.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description

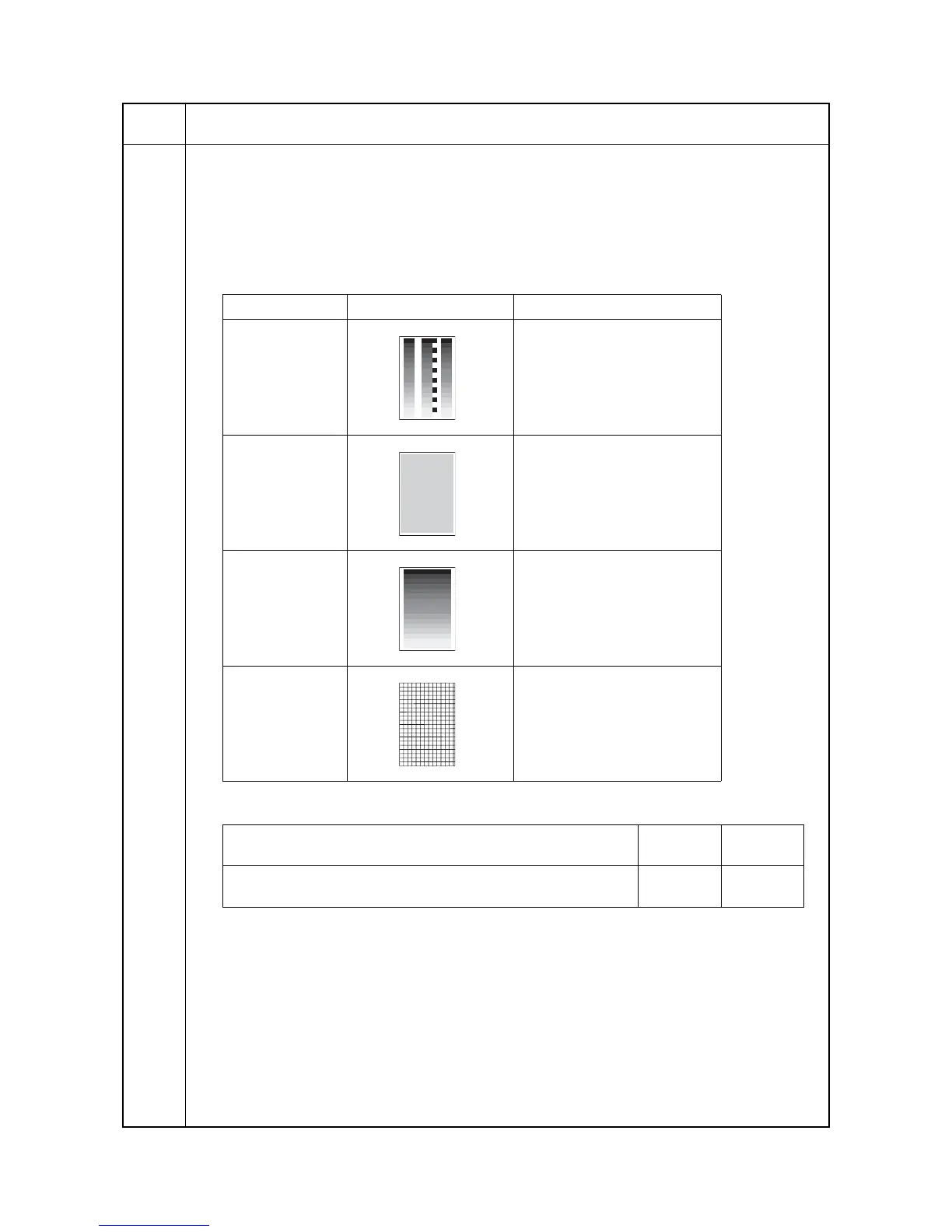

Display PG pattern to be output Purpose
GRAYSCALE To check the laser scanner unit
engine output characteristics.
MONO-LEVEL To check the drum quality.
256-LEVEL To check resolution
reproducibility in printing.
1 dot-LINE To check fine line reproducibility.
To adjust the position of the laser
scanner unit (lateral squareness)
Description Setting
range
Initial
setting
Output density of MONO-LEVEL 0 to 255 0
1dot-LINE 0 to 21 0

Kyocera KM-4050 Specifications

General

Print technology	Laser
Time to first page (black, normal)	3.5 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	40 cpm
Faxing	Mono faxing
Fax memory	120 MB
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Multi-Purpose tray	Yes
Total input capacity	1000 sheets
Total output capacity	250 sheets
Maximum input capacity	4200 sheets
Multi-Purpose tray input capacity	200 sheets
Internal memory	512 MB
Processor model	750FL
Processor family	PowerPC
Sound power level (standby)	52 dB
Sound pressure level (printing)	69 dB
Font styles	80 outline fonts (PCL6), 136 PostScript KPDL 3 fonts, 1 bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417)
Dimensions (WxDxH)	599 x 646 x 745 mm
Power requirements	AC 220 - 240 V, 50/60 Hz
All-in-one functions	Copy, Fax, Scan
Maximum internal memory	1 GB
Color all-in-one functions	scan, n
Power consumption (standby)	230 W
Power consumption (PowerSave)	17 W
Power consumption (average operating)	1010 W
Certification	TÜV/GS, CE, ISO 15408
Market positioning	Business
