Kyocera TASKalfa 6003i - Part Names (Machine Exterior)

2-2
Installing and Setting up the Machine > Part Names (Machine Exterior)

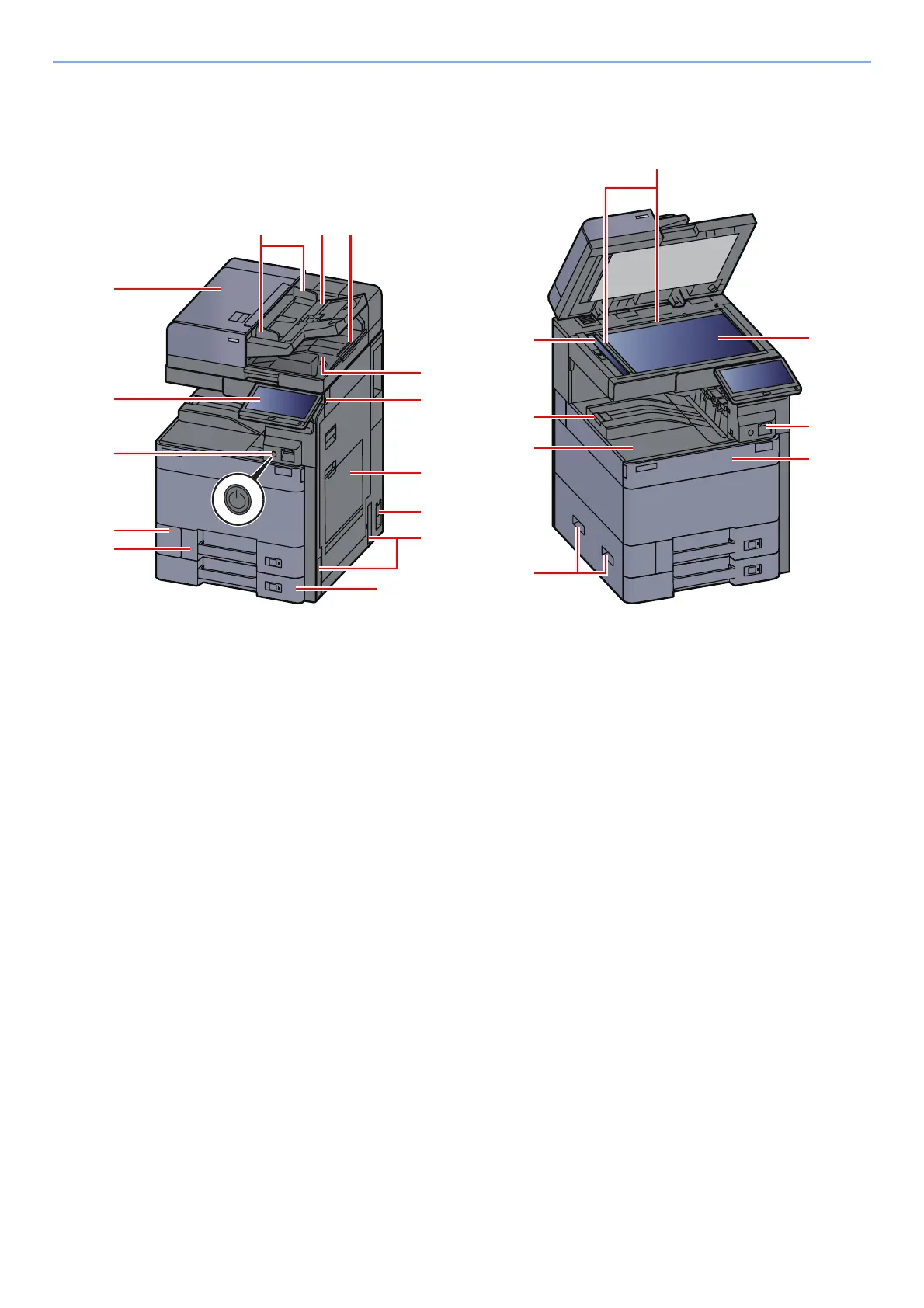

Part Names (Machine Exterior)
1 Document Processor
2 Operation Panel
3 Power Switch
4 Waste Toner Box Cover
5 Cassette 1
6 Cassette 2
7 Main Power Switch
8 Multipurpose Tray
9 USB Memory Slot
10 Original Eject Table
11 Original Stopper
12 Original Table
13 Original Width Guides
14 Slit Glass
15 Paper Stopper
16 Inner Tray
17 Handles
18 Front Cover
19 Motion Sensor
20 Platen
21 Original Size Indicator Plates
