Electro-acoustical description

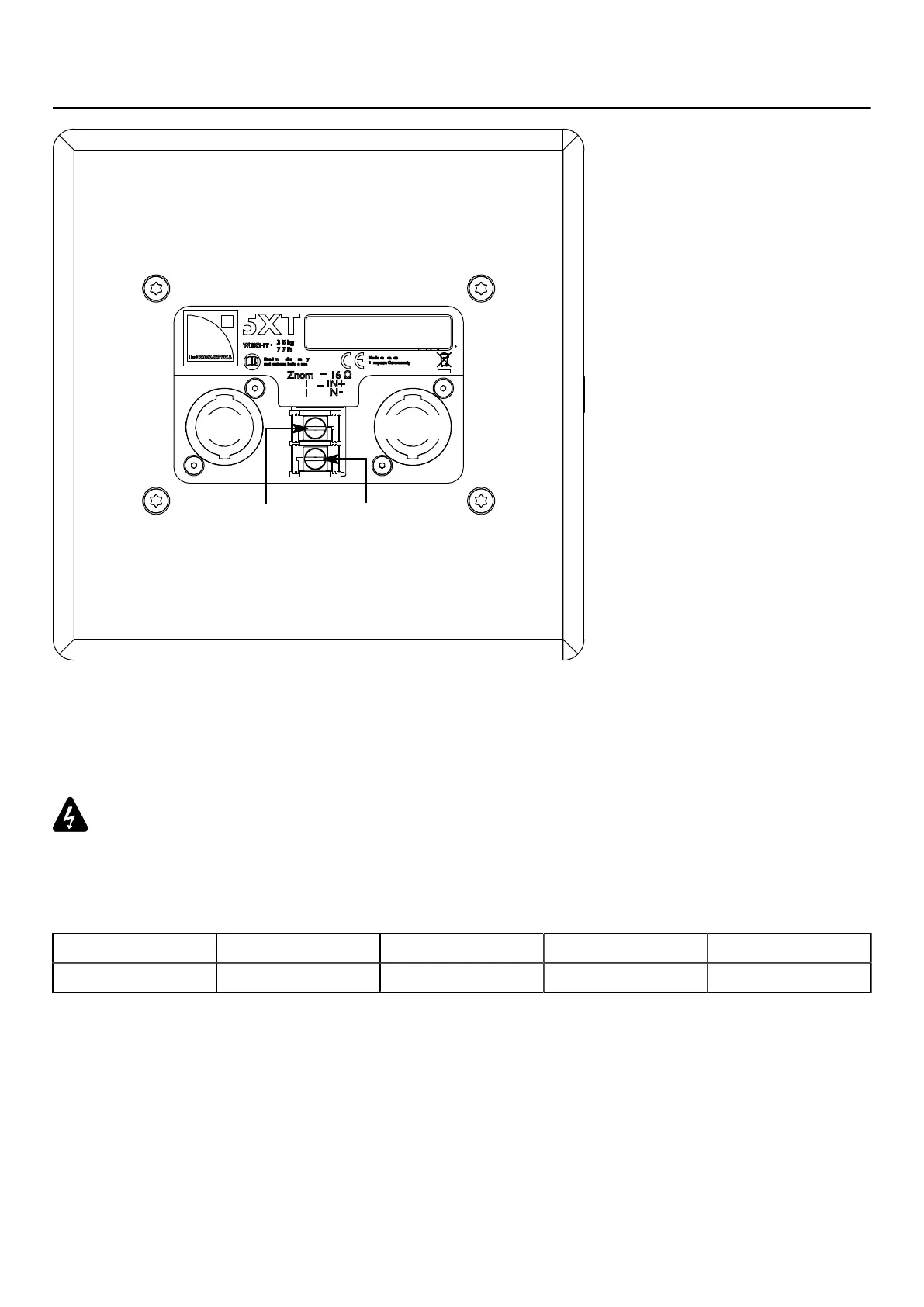

Connectors
LINK
IN
IN +
IN -
(screw terminals)
The 5XT is a 2-way passive enclosure equipped with two 4-point speakON connectors wired in parallel and 2 screw
terminals.
The IN connector allows receiving the audio signals. The LINK connector allows routing them to another 5XT enclosure in
parallel.
Each screw terminal acts as IN and LINK. SpeakON connectors can be used interchangeably as IN or LINK connectors.
ELECTRICAL HAZARD
Risk of electrical injuries.
Do not touch the screw terminals when they are connected to a powered amplied controller.
Turn off the amplied controller before any operation on the terminals.
Internal pinout for L-Acoustics 2-way passive enclosures
speakON points 1 + 1 - 2 + 2 -
Transducer connectors + - Not linked Not linked
5XT owner's manual (EN) version 4.0 11
