Loudspeaker congurations

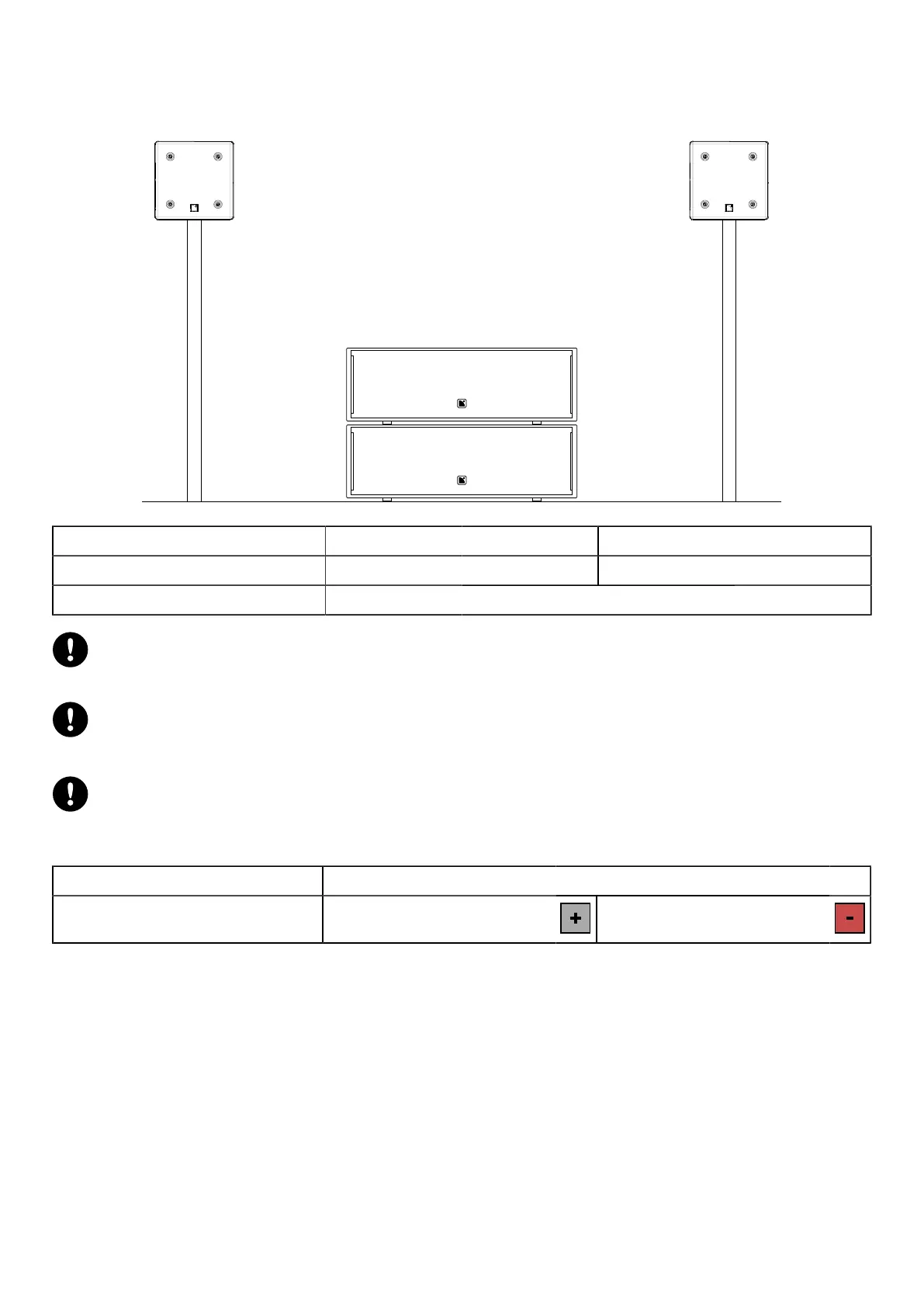

5XT with SB10i
With SB10i, the 5XT system contour is reinforced by 7 dB at 40Hz and the bandwidth is extended down to 27 Hz.
Enclosure 5XT SB10i
Preset [5XT] [SB10_100]
Frequency range (-10 dB) 27 Hz - 20 kHz
Grouping subwoofers
Place the subwoofer enclosures side by side. If not possible, the maximum distance between two adjacent
acoustic centers must be 1.7m if the upper frequency limit of the subwoofer system is at 100Hz.
Use [xxxx_xx_C] or [xxxx_xx_Cx] on a reversed subwoofer in a cardioid conguration
The cardioid conguration consists in reversing 1 element in an array of 4 subwoofers.
Refer to the subwoofer owner's manual and to the Cardioid congurations technical bulletin.
Delay values
Do not forget to add the pre-alignment and geometric delays depending on the conguration.
Pre-alignment delays
presets pre-alignment delay values and polarity settings
[5XT] or [5XT_MO] + [SB10_100] 5XT = 0 ms SB10i = 1.6 ms
