Corrective maintenance
D/R - Grill
Tools
• torque screwdriver
• T20 Torx bit
Consumables
• blue threadlocker
Repair kit
KR HPBC51 - Kit HP BC51 Speaker 5'' or
KR HSBC13 - Kit diaphragm for 1'' driver - 8 ohms
×4
S100037
M4×30 Torx

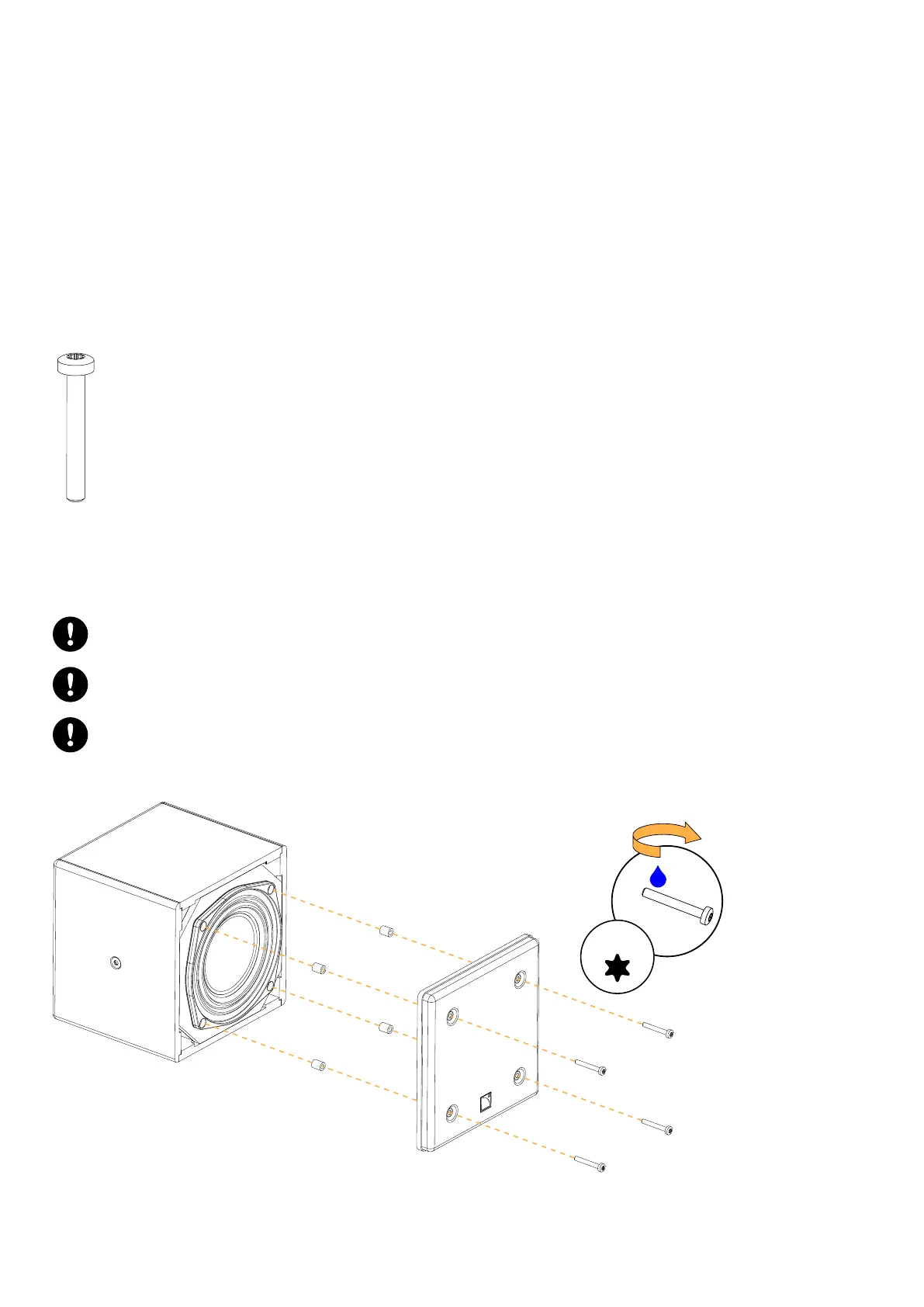

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
Gradually tighten the screws following a star pattern.
Save the spacers for reassembly.
Use blue threadlocker.
x4
1.5 N.m
T20
