L-Acoustics K1 User Manual

Corrective maintenance
D/R - MF speaker
Tools
• torque screwdriver
• 4 mm hex bit
Repair kit
KR HPPH62
Kit HP PH62 Speaker 6.5" - 8 ohms
×1 ×4 ×2
FT796 S342 S100113
6.5" coaxial speaker - 8 ohms M5×20 hex M5×16 hex
Prerequisite
Grill removed. See Grill (p.27).
Fins removed. See Fins (p.29).

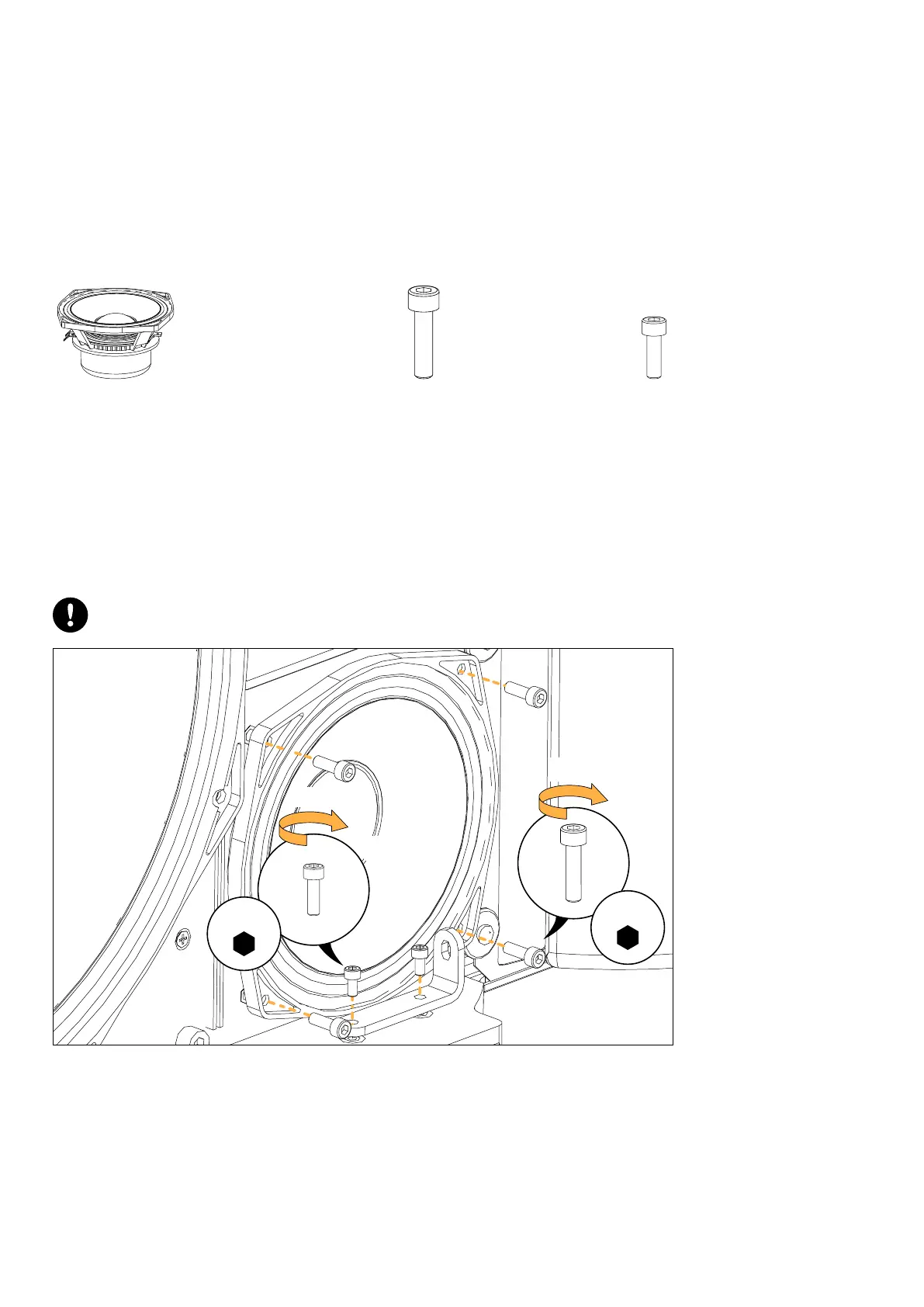

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
x2
5 N.m
x4
5 N.m
4 mm
4 mm
What to do next
Perform the Acoustical check (p.38) procedures.
30 K1 user manual (EN) version 6.0
