Corrective maintenance
D/R - Connector plate
Tools
• torque screwdriver
• T30 Torx bit
Repair kit
KR HPBC33 - Kit HP BC33 Driver 3" - 20 ohms, or
KR HSBC33 - Kit diaphragm for 3'' driver
×1 ×10
100585_2 S100110
adhesive gasket kit M6×25 Torx

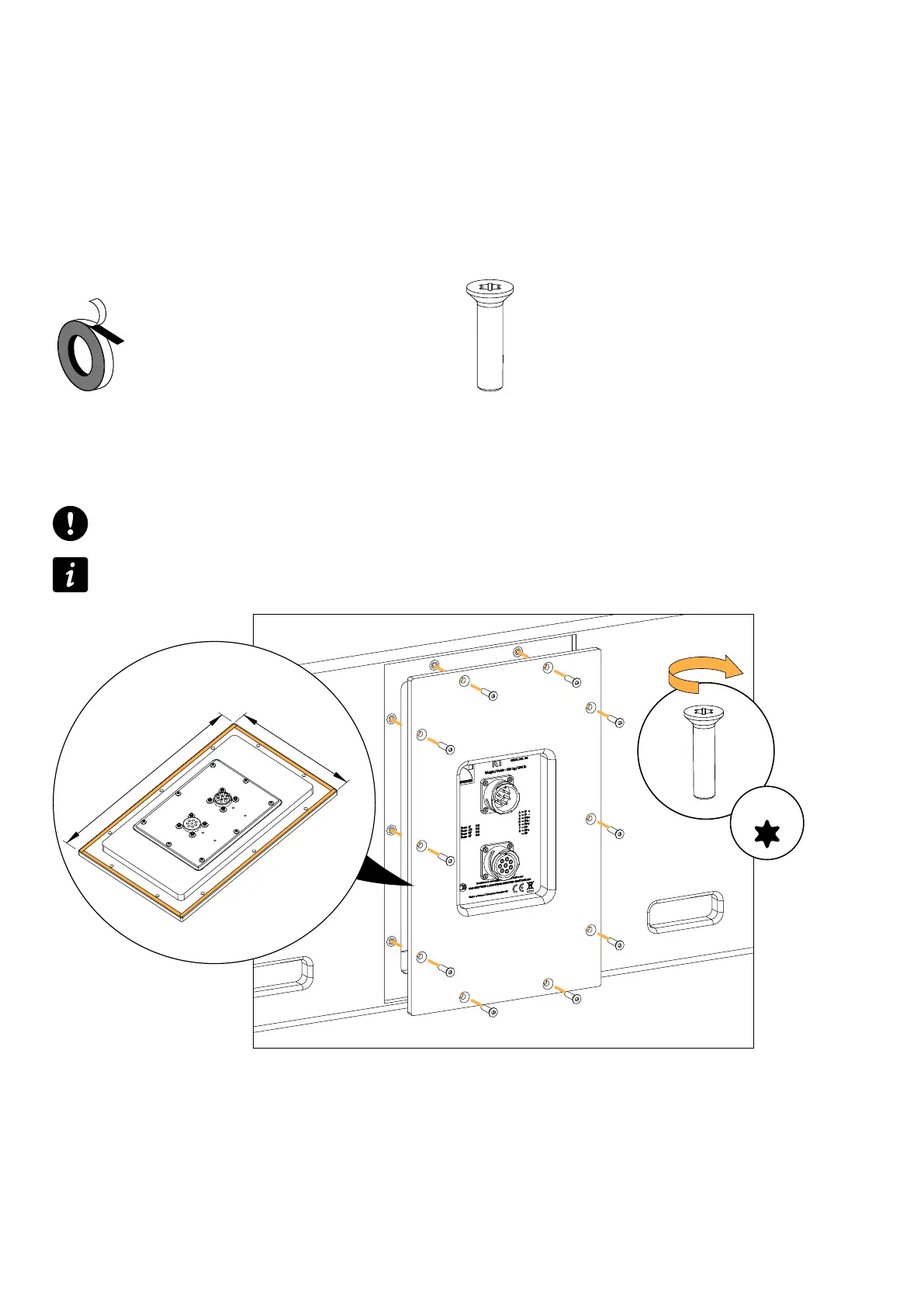

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
If the gasket is damaged, remove and replace it.
x10
3 N.m
T30
400 mm / 15.7 in
245 mm / 9.6 in
K1 user manual (EN) version 6.0 31
