L-Acoustics K1 User Manual

Corrective maintenance
D/R - HF diaphragm
Tools
• torque screwdriver
• 3 mm hex bit
• 3 mm hex wrench
• compressed air blower
Consumables
• double face adhesive tape
Repair kit
KR HSBC33
Kit diaphragm for 3'' driver
×1 ×4
03024 S03024
diaphragm for 1.4" driver - 20 ohms (with shims) M4×14 hex
Prerequisite
Connector plate removed. See Connector plate (p.31).
HF loudspeaker removed. See HF driver (p.32)

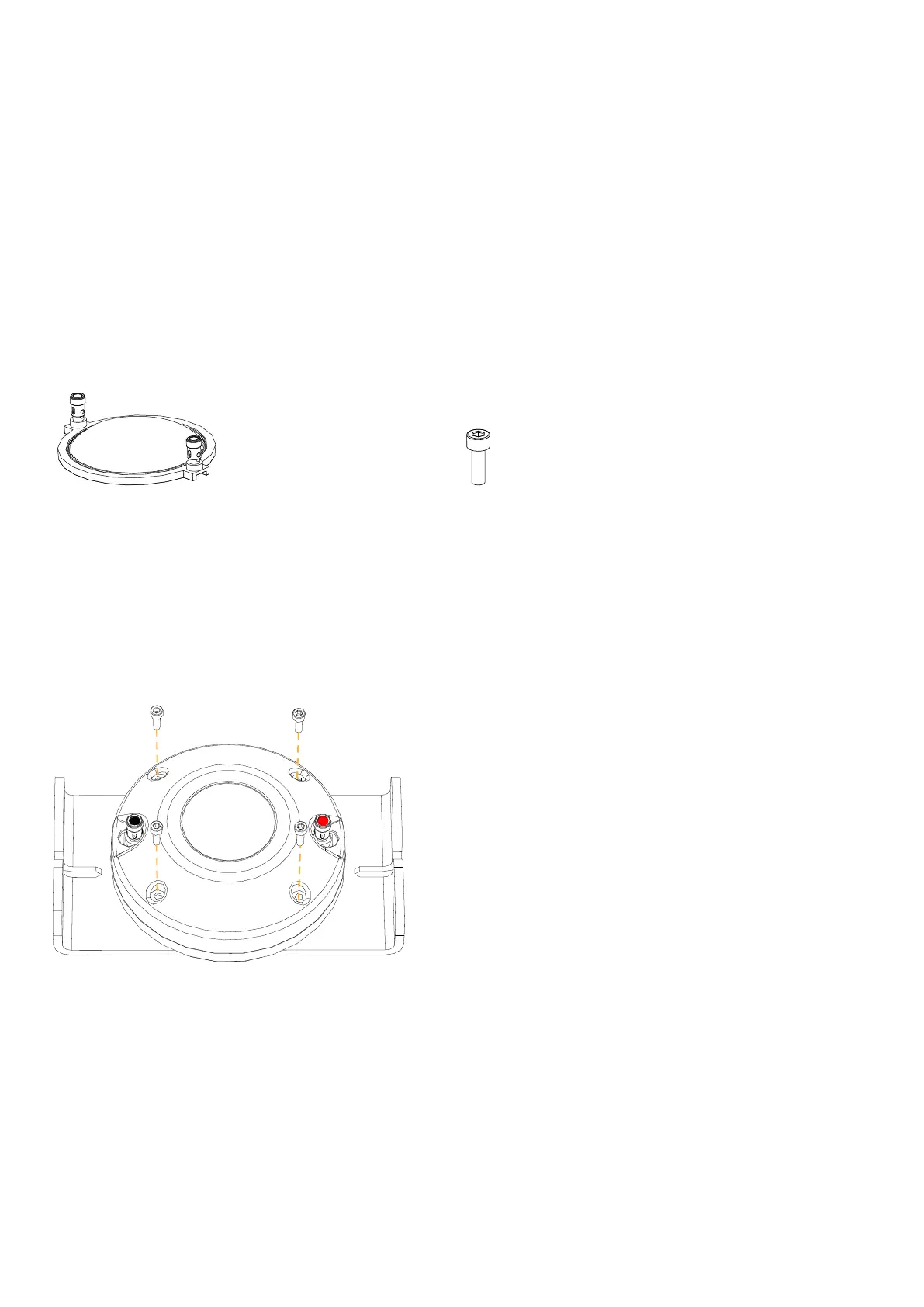

Exploded view
K1 user manual (EN) version 6.0 33
