L3 Mobile-Vision MobileVu User Manual

MobileVu Display User Guide  7.12.2011
Page 6 L3 Communications Mobile-Vision  Proprietary

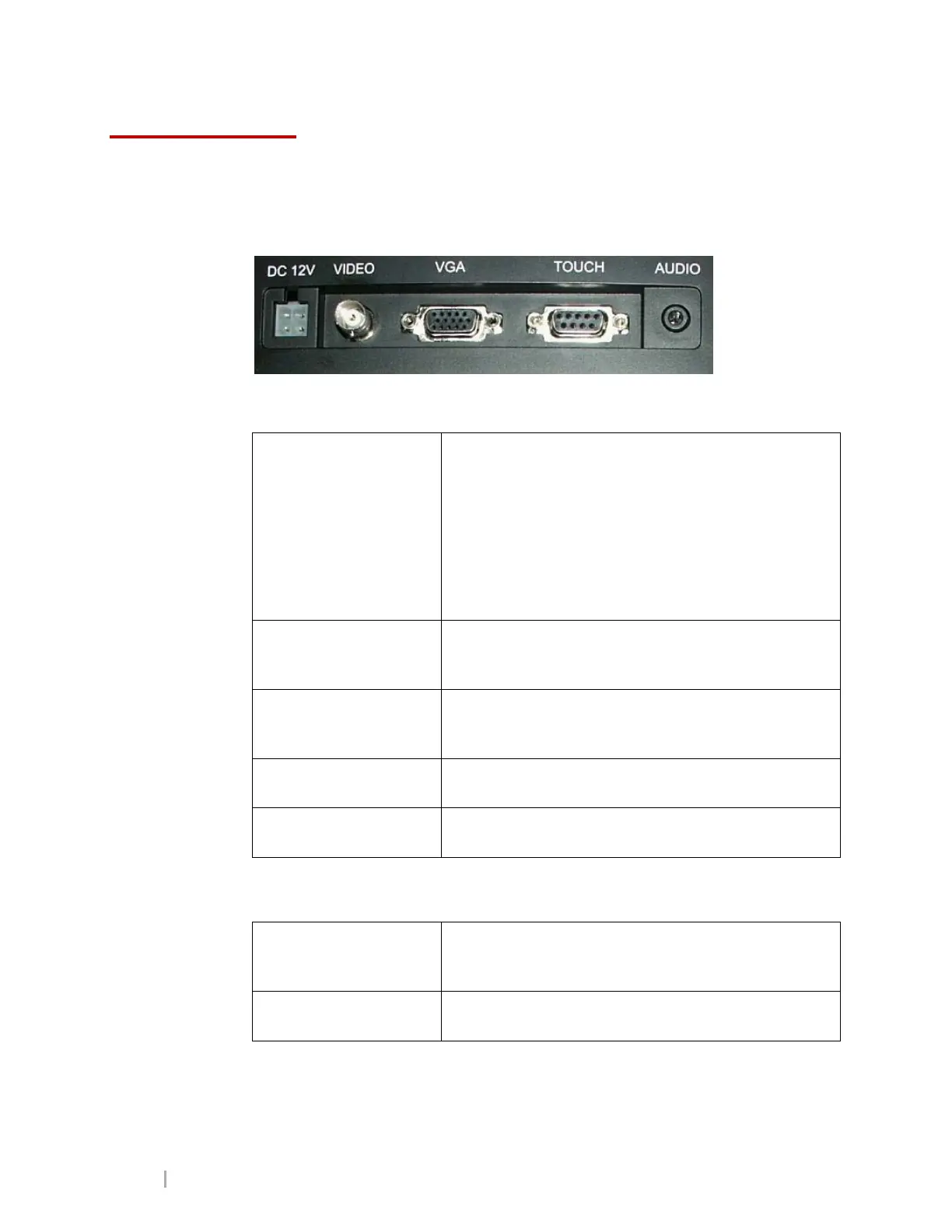

Electrical Interfaces
The five connectors on the backside of MobileVu provide the electrical interface.
This section will identify each connector and purpose. Connectors are listed in order
from left to right as viewed from the rear of MobileVu.
DC 12V  Input power – 12 volt DC nominal (9-15 V)
minimum 2.5 amps
 4 pin Molex with positive lock
 Pin 1 – Optional Remote Power Status
 Pin 2 – Black Out Mode
 Pin 3 – Ground
 Pin 4 – 12V DC
 Unit shuts off if voltage drops 10.3V DC or reaches
16.3V DC
Video  Input – automatically adjust to RS-170 composite
(NTSC), RS-170A, and PAL
 Standard BNC connector
VGA  Input video signals are 0.9V to 0.75V @ 75Ω.
 Sync signals are 0 to 5V TTL compatible
 Standard 15 pin D-Sub connector
Touch  RS-232/C communication (Input/output)
 Standard 9 pin D-Sub connector
Audio  Input
 Standard 3.5mm plug
Features
Automatic Resolution
Detection and Settin
The display automatically adapts to non-native
resolutions of the LCD. The screen will adapt within
three seconds as resolutions are changed.
Display Setup OSD (On-Screen Display menu) allows manual
adjustments to fine-tune the display.
(Continued)
Electrical Interfaces of MobileVu
