Mascot FT, Heating Only, Gas Conversion Kit
pg 3 of 4

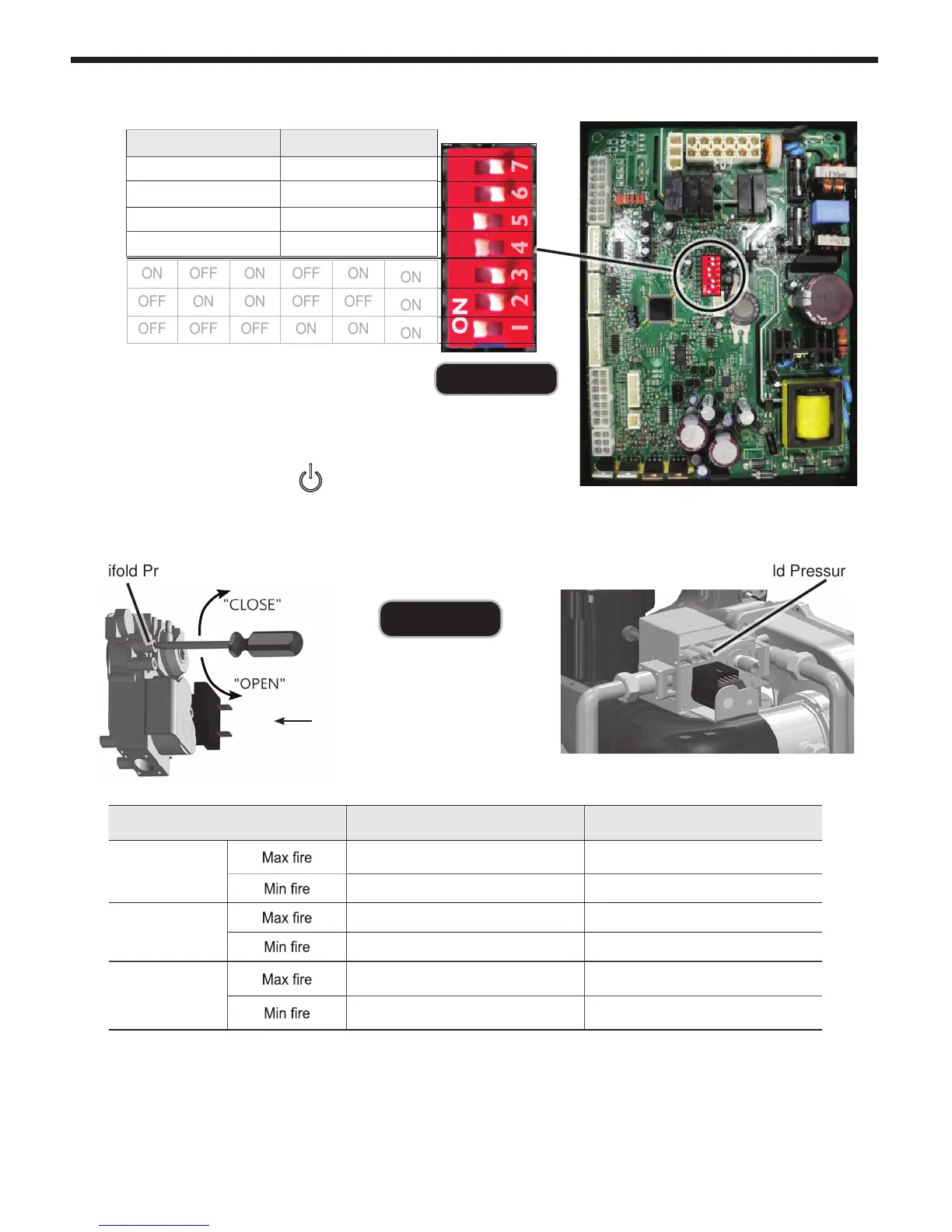

Figure C
Table B DIP Switch Settings
MBH 80 100 120 140 N/A 199
9.
Per Table B, set DIP Switch
5 to OFF
for LP Propane.
10.
Turn ON the GAS and WATER supply to the Mascot FT.
11.
Turn ON the Mascot FT.
12.
Connect a manometer to the manifold pressure port. For dual port manometers, use the positive pressure
side. Check for proper manifold gas pressure. Refer to Table C.
ON OFF
MIN Fire Normal Operation
MAX Fire Normal Operation
NG Natural LP Propane
3” Vent Size
2” Vent Size
ON OFF ON OFF ON
ON
OFF ON ON OFF OFF
ON
OFF OFF OFF ON ON
ON
Figure D
Gas Valve for 80 to 140 MBH
Gas Valve for
199 MBH
The gas valve on
the smaller models is
mounted vertically.
Manifold Pressure Port Manifold Pressure Port
DO
NOT
CHANGE
REFERENCE
ONLY.
Table C
Manifold pressure Propane Gas (LP) Natural Gas (NG)
MFTHW 80/100
-0.102 ˝ WC -0.102 ˝ WC
0.00 ˝ WC 0.00 ˝ WC
MFTHW 120/140
-0.216 ˝ WC -0.216 ˝ WC
0.00 ˝ WC 0.00 ˝ WC
MFTHW 175
-0.169 ˝ WC -0.129 ˝ WC
-0.015 ˝ WC -0.015 ˝ WC
MFTHW 199
-0.173WC -0.134 ˝ WC
-0.015 ˝ WC -0.015 ˝ WC
CO
2
value
Propane Gas (LP) Natural Gas (NG)
2˝ VENT 3˝ VENT 2˝ VENT 3˝ VENT
MFTHW 80/100
120/140/175/199
9.5~11% 8.5~10.5%
9~10.5 % 8~10%
Refer to the below table.
Manifold pressure Propane Gas (LP) Natural Gas (NG)
MFTHW 80/100
-0.102 ˝ WC -0.102 ˝ WC
0.00 ˝ WC 0.00 ˝ WC
MFTHW 120/140
-0.216 ˝ WC -0.216 ˝ WC
0.00 ˝ WC 0.00 ˝ WC
MFTHW 175
-0.169 ˝ WC -0.129 ˝ WC
-0.015 ˝ WC -0.015 ˝ WC
MFTHW 199
-0.173WC -0.134 ˝ WC
-0.015 ˝ WC -0.015 ˝ WC
CO
2
value
Propane Gas (LP) Natural Gas (NG)
2˝ VENT 3˝ VENT 2˝ VENT 3˝ VENT
MFTHW 80/100
120/140/175/199
9.5~11% 8.5~10.5%
9~10.5 % 8~10%
Refer to the below table.
13.
Establish a call for heat. You may need to disconnect the outdoor reset if you are making this gas
conversion during warm weather.
4.13 Natural Gas to Propane Conversion (continued)
