Lab.gruppen PDX3000 User Manual

42 PDX3000 Quick Start Guide 43
Pre-set: NuQ152_BI AMP
Pre-set: NuQ118B_DUAL MONO
PDX3000
PDX3000
PDX3000
M32R
NuQ118B
NuQ152
speakON NL4
Input Sub+
Input Sub-
1-
2-
2+
1+
Amplier Channel 1
4-Wire Single Cable
Run Operation 1+/1-
NL4
Input/
Link
1+
1 -
2+
2 -
1+
1 -
2+
2 -
NL4
Input/
Link
LF
Bi-Amp
HF
NL4
Input/
Link
1+
1 -
2+
2 -
>
>
>
>
>
>
>
>
1+
1 -
2+
2 -
NL4
Input/
Link
LF
Warning! Connecting a full-range speaker switched to bi-amp while using a 4-pole
cable may cause damage to the compression driver. The full-range speaker must be
switched to ‘passive’ mode. Using 2-pole cables between the subwoof
er and
full-range speaker is recommended.
speakON NL4
BI-AMP, Input Low +
BI-AMP, Input Low -
BI-AMP, Input High +
BI-AMP, Input High -
1-
2-
2+
1+
Amplier Channel 1
Amplier Channel 2
4-pole cable
4-pole cable
2-pole cable
2-pole cable

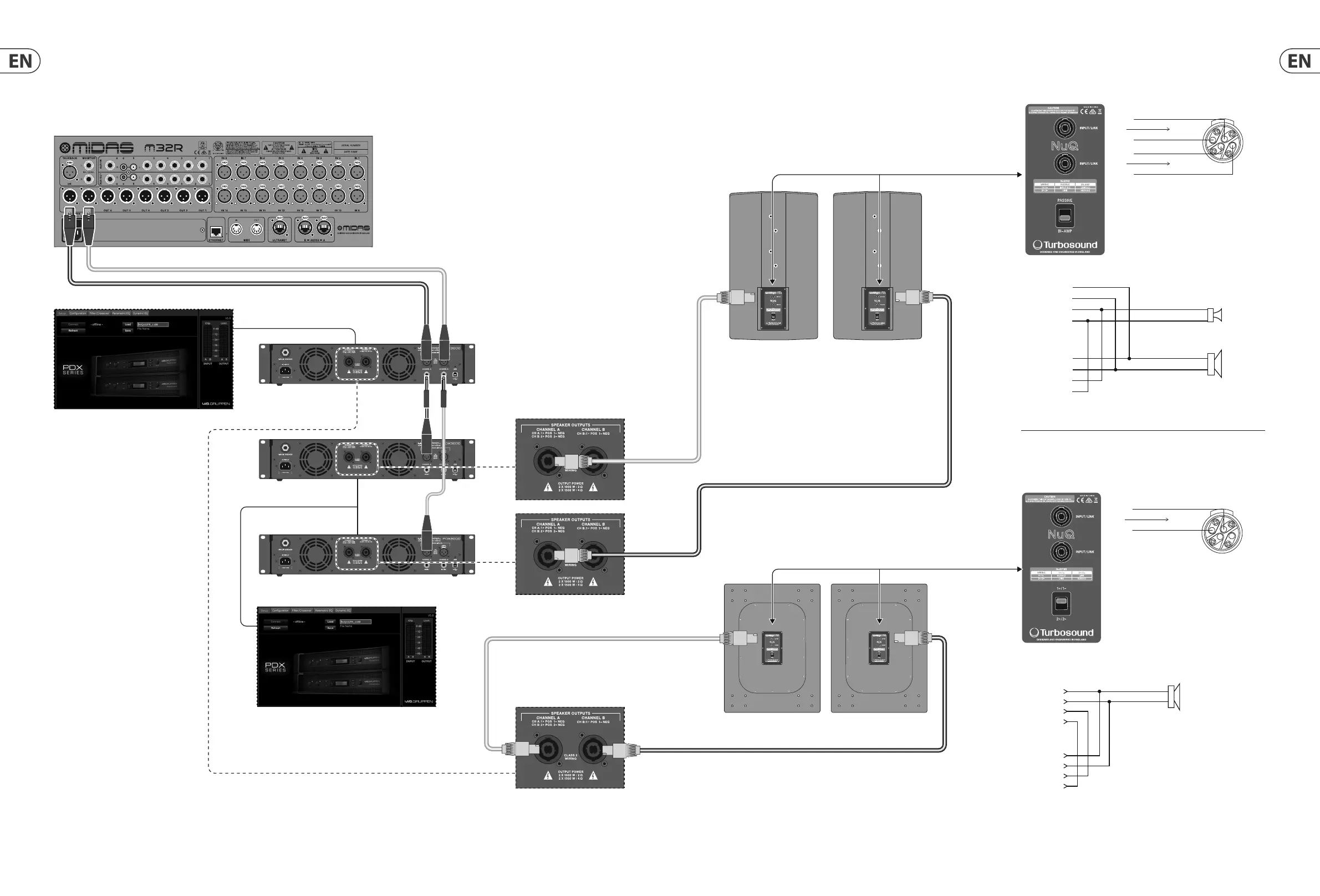

Two tops in bi-amp mode, two subs in passive mode, two Turbosound NuQ152 and
NuQ118B together with three Lab.gruppen PDX3000
