Lamborghini Caloreclima EM 9-E - Dimensions; Maincomponents

30
UK

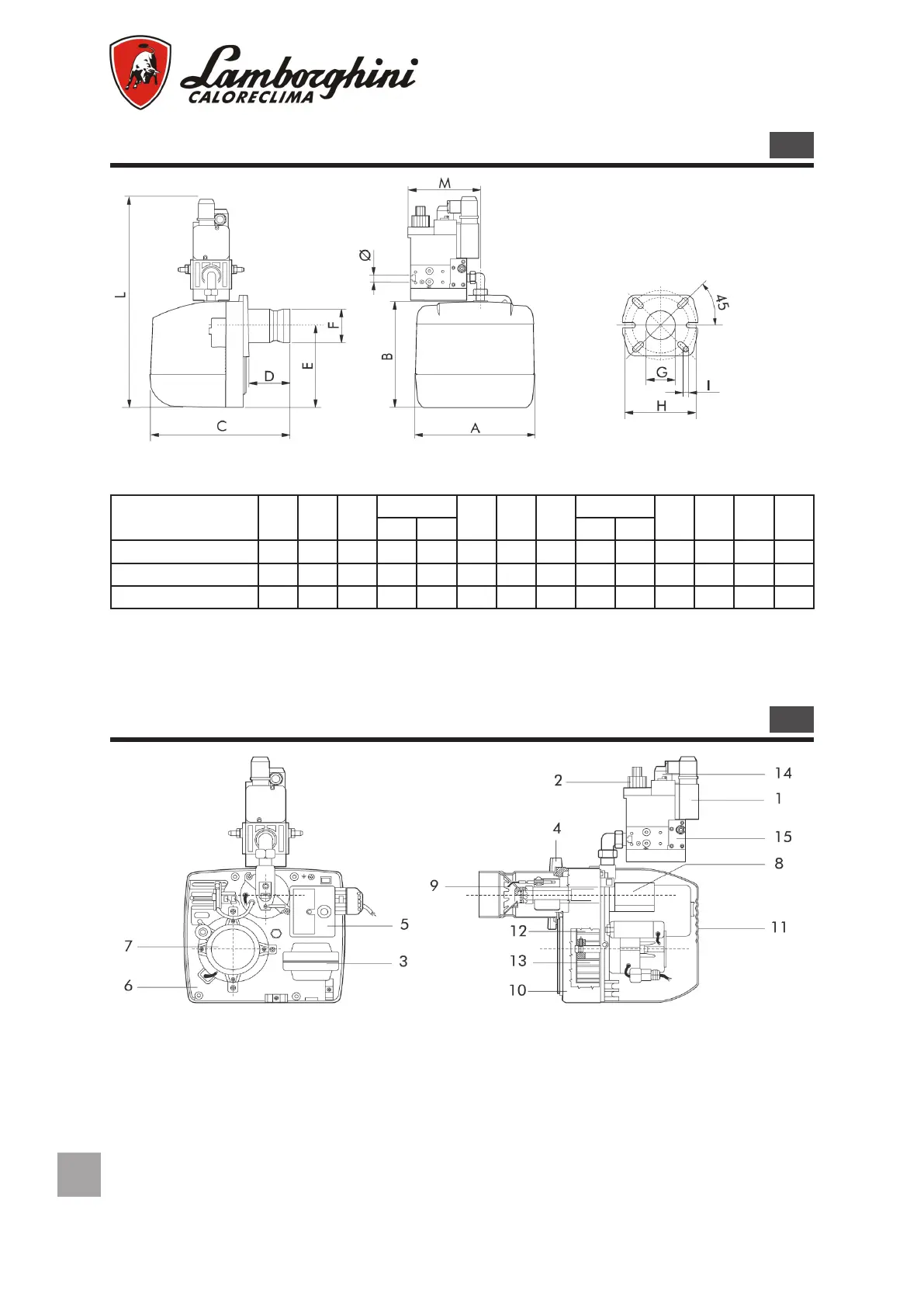

DIMENSIONS
Legend
1 Gas pressure switch
2 Operation valve
3 Ignition transformer
4 Boiler connecting ange
5 Control box
6 Components plate
7 Motor
8 Air pressure switch
9 Combustion head
10 Burner body
11 Cover
12 Air shutter
MAIN COMPONENTS
13 Fan
14 Security valve
15 Stabilizing lter
M
M
* The dimensions refer to a burner with a 20 mbar gas train tted.
Model A B C
D
E Ø F Ø G
Ø H
I L* M* Ø
min max min max
EM 3-E 250 215 320 - 90 160 80 85 135 160 M8 410 170 1/2"
EM 6-E 280 247 342 - 90 195 80 85 135 160 M8 410 170 1/2”
EM 9-E 280 247 417 40 140 195 90 95 135 160 M8 445 195 3/4”
