CALIBRATION OF AIR PRESSURE SWITCH
The air pressure switch places the burner in safety mode or shuts it down should there
be a drop in combustion air pressure.
It will be calibrated at a pressure below 1st stage rated-ow on-burner air pressure,
checking that CO values do not exceed 10,000 p.p.m...
CALIBRATION OF MINIMUM GAS PRESSURE SWITCH
The minimum gas pressure switch serves to prevent the burner from being started up
or to shut it down if the gas pressure falls below the minimum required level. This set-
ting should be 40% lower than the gas pressure obtained with the burner operating at
maximum delivery..

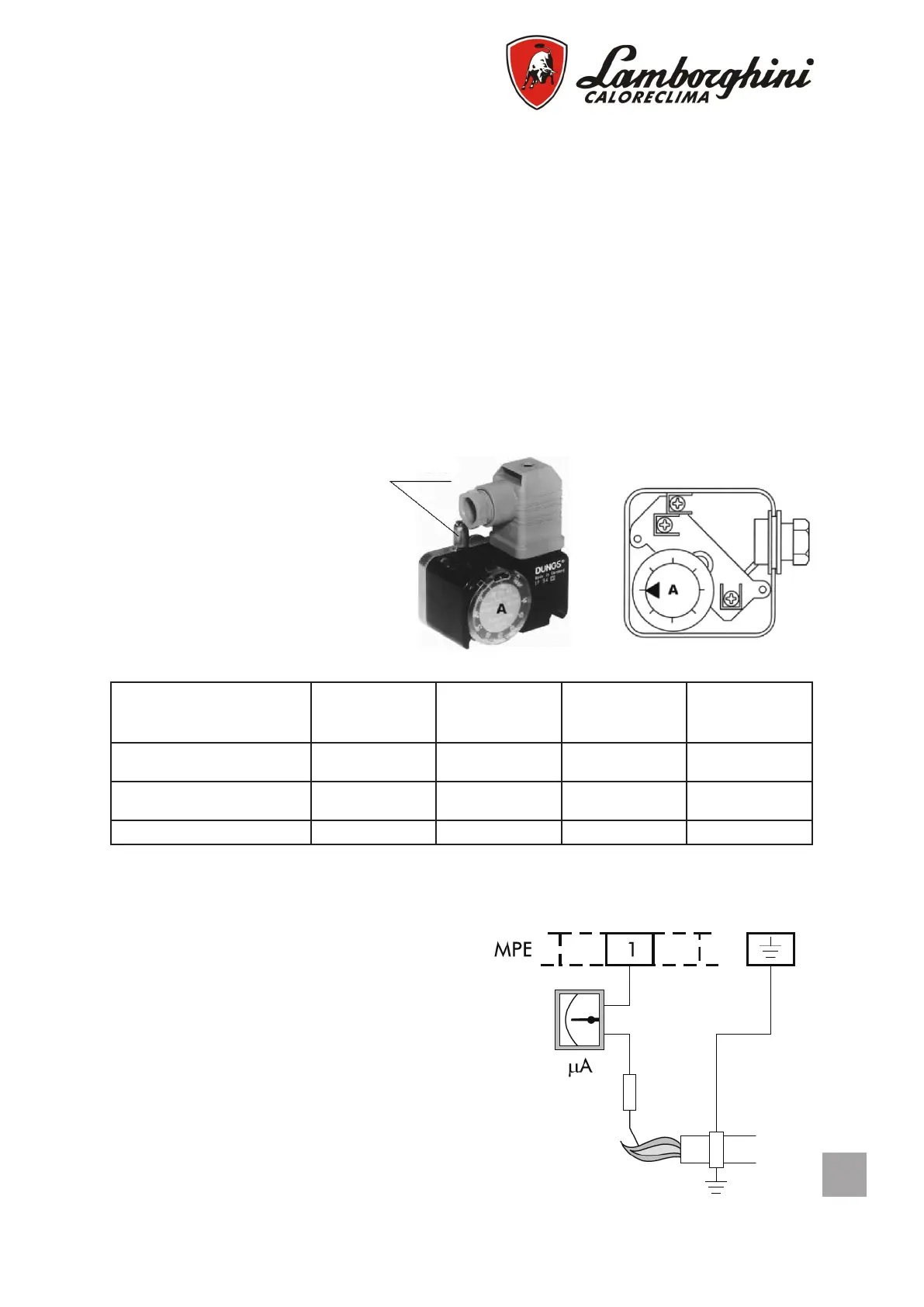

PRESSURE SWITCH
Type:
LGW 3 A2
LGW 10 A2
GW 50 A5
GW 150 A5
Remove the cover and adjust
dial A
Pressure
connector
CHECKING CONTROL BOX
IONIZATION CURRENT
The minimum value of 3 μA
should be observed, and large
oscillations are to be avoided.
Microampermeter
AIR
PRESSURE
SWITCH
SETTING
RANGE
mbar
GAS
PRESSURE
SWITCH
SETTING
RANGE
mbar
EM 3 - E LGW 3 A2 0,4-3,0
GW 50 A5
GW 150 A5
5-50
5-150
EM 6 - E LGW 10 A2 1-10
GW 50 A5
GW 150 A5
5-50
5-150
EM 9 - E
LGW 10 A2 1-10 GW 150 A5 5-150
