6 Commissioning
6 Commissioning
6.1 Parameter and Password Input
How to set the password see chapter:
7.1.5.1 Password
7.2.2 Password
7.3.3.3 Access Rights Menu
For the parameter listing see chapter Parameter
6.2 Commissioning Tests
An appropriate checklist has been developed for a final check of the commissioning and for
its documentation. This list can be found in the appendix in chapter 12.2 Acceptance and In-
spection. This list is only a subset of the system tests to be performed. In addition, defined
system tests of the ECU manufacturer are applicable.
NOTICE
The internal information on the entire installation (commissioning) must also be considered.
6.3 Programming of Curves
Accessing the CMS menu ’RC curves’ and submenus (AL1)

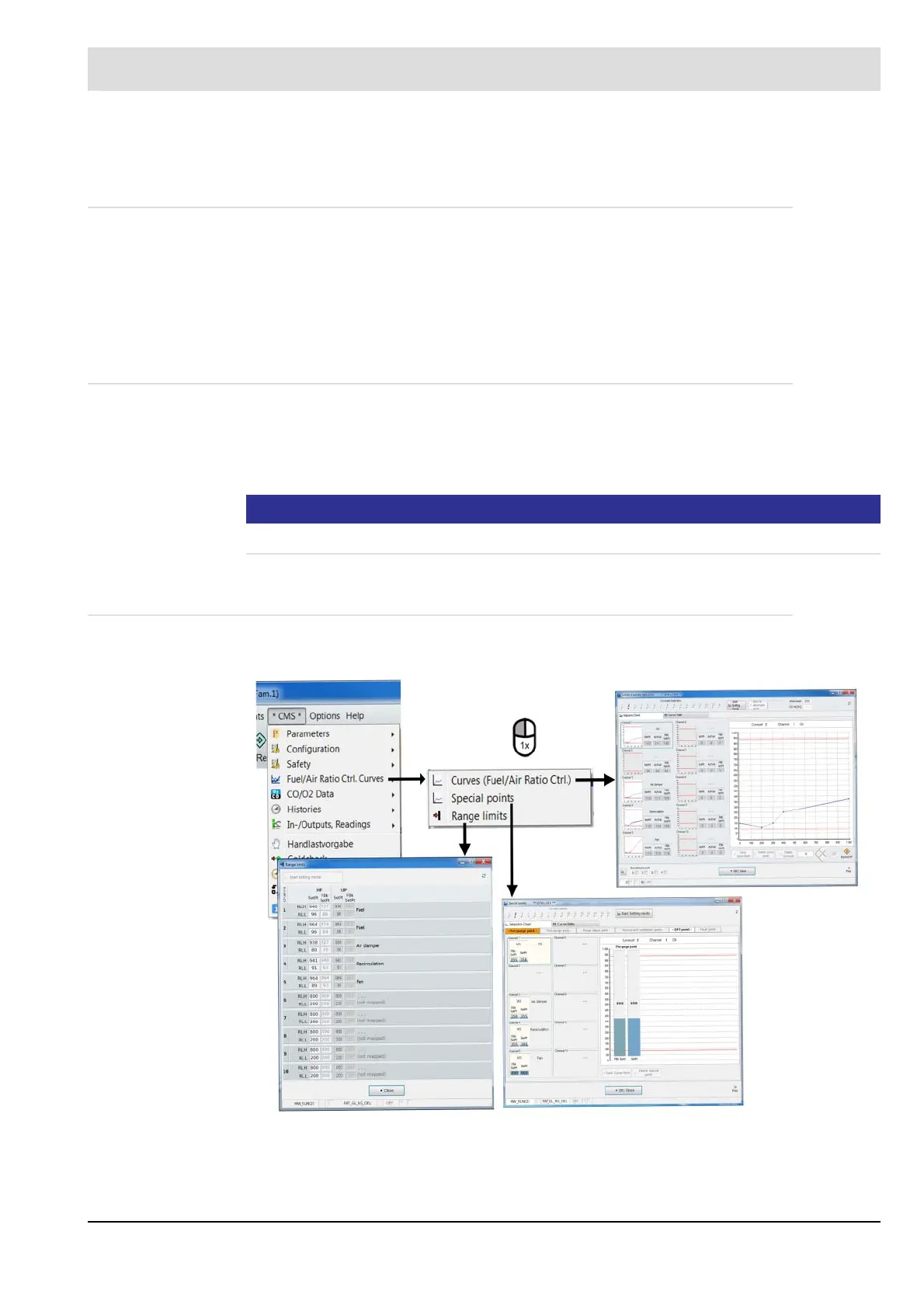

Fig. 6-1 Accessing the CMS menu ’RC curves’ and submenus
The curve screen shows the setpoint curves for the channels (ratio controller) per curve set.
The user can switch between showing a curve-based format (setpoint graphic) and a display
in tabular format (curve table).
