177
7
Operating Control and Displays
7.3.3.2
Connection Menu

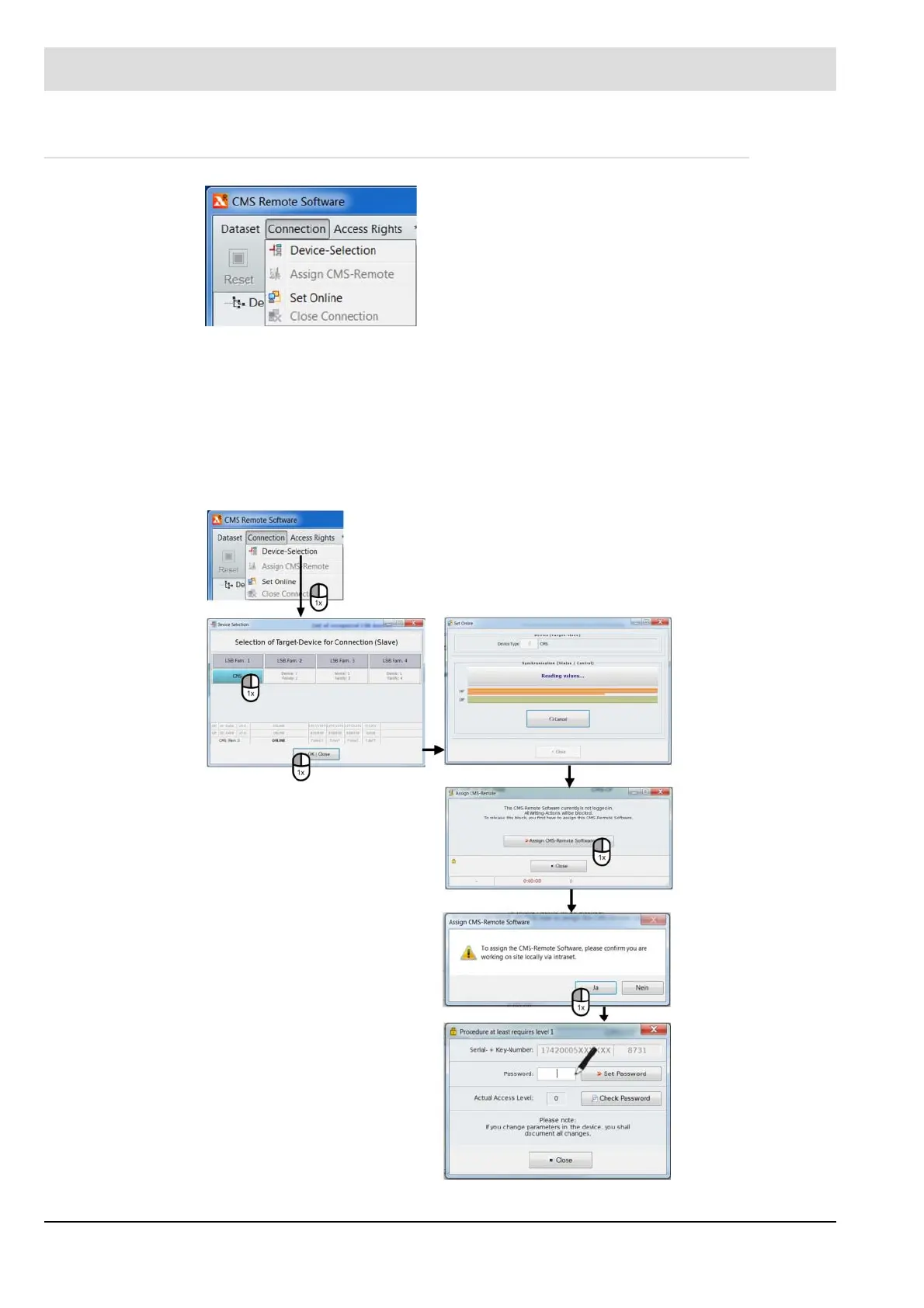

Fig. 7-51 CMS connection menu
The "Connection" menu path can be used to:
•
Make a device selection
•
Assign CMS-Remote
•
Establish a connection (set online)
•
Drop a connection
Device selection
Fig. 7-52 CMS device selection menu
177
