35
4
CMS Components
4.1.6
Connection Diagram

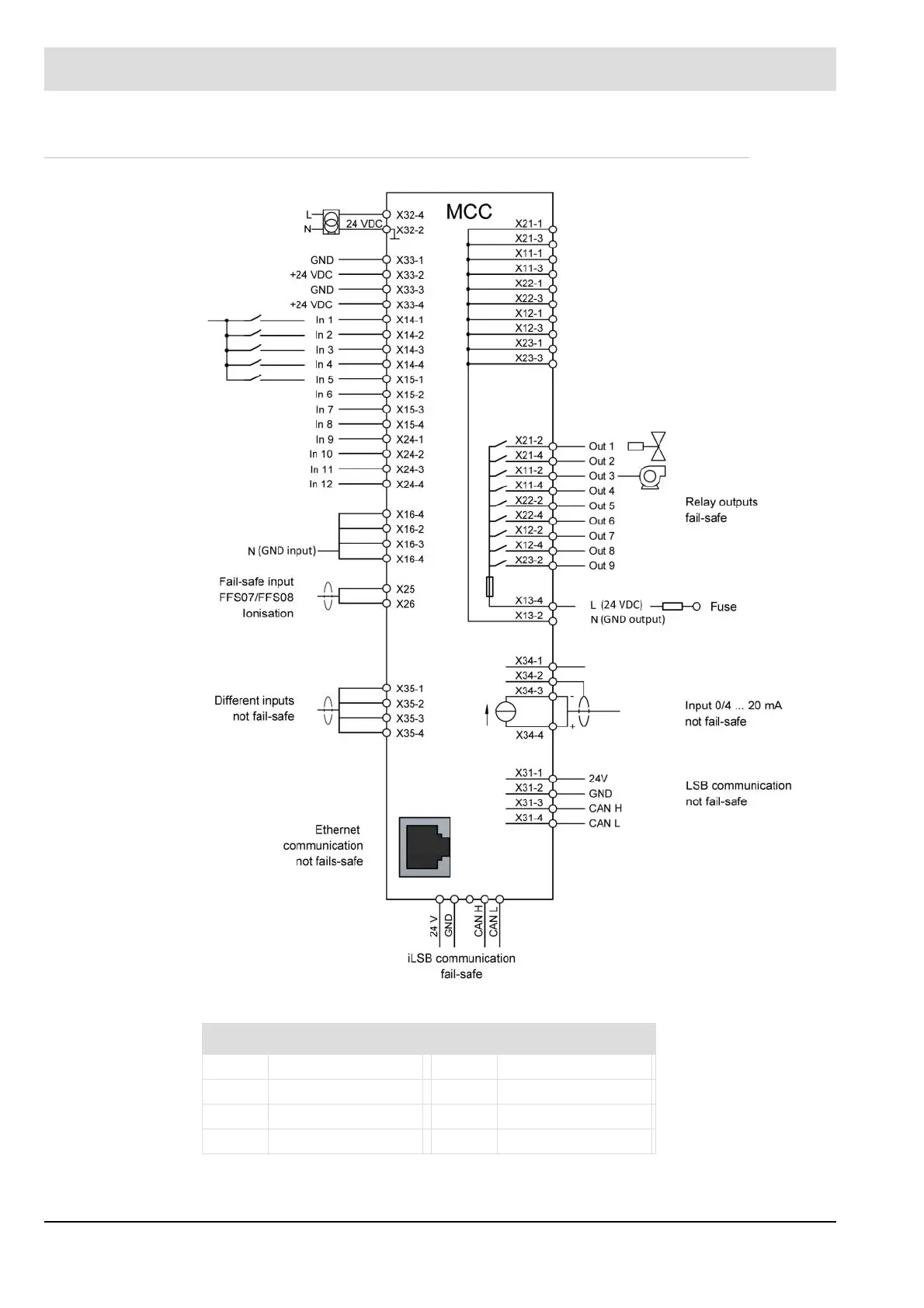

Fig. 4-6 Connection diagram for MCC for 220 V
AC/120 V
AC (for 24 VDC) inputs and outputs
T
erminal assignment: Safe input for FFS07/FFS08
X25-1
pi
X26-1
bk
X25-2
–
X26-2
gn
X25-3
ye
X26-3
bl
X25-4
we
X26-4
rd
35
37
