7 Operating Control and Displays
7.1.2 Main Menu
For a complete description of the display symbols, see chapter 12.6 Display Symbols
NOTICE
The parameters of release level 1 must be protected by a password against unauthorised
changes. This password must differ to the factory settings.
7.1.3 Information Menu Path

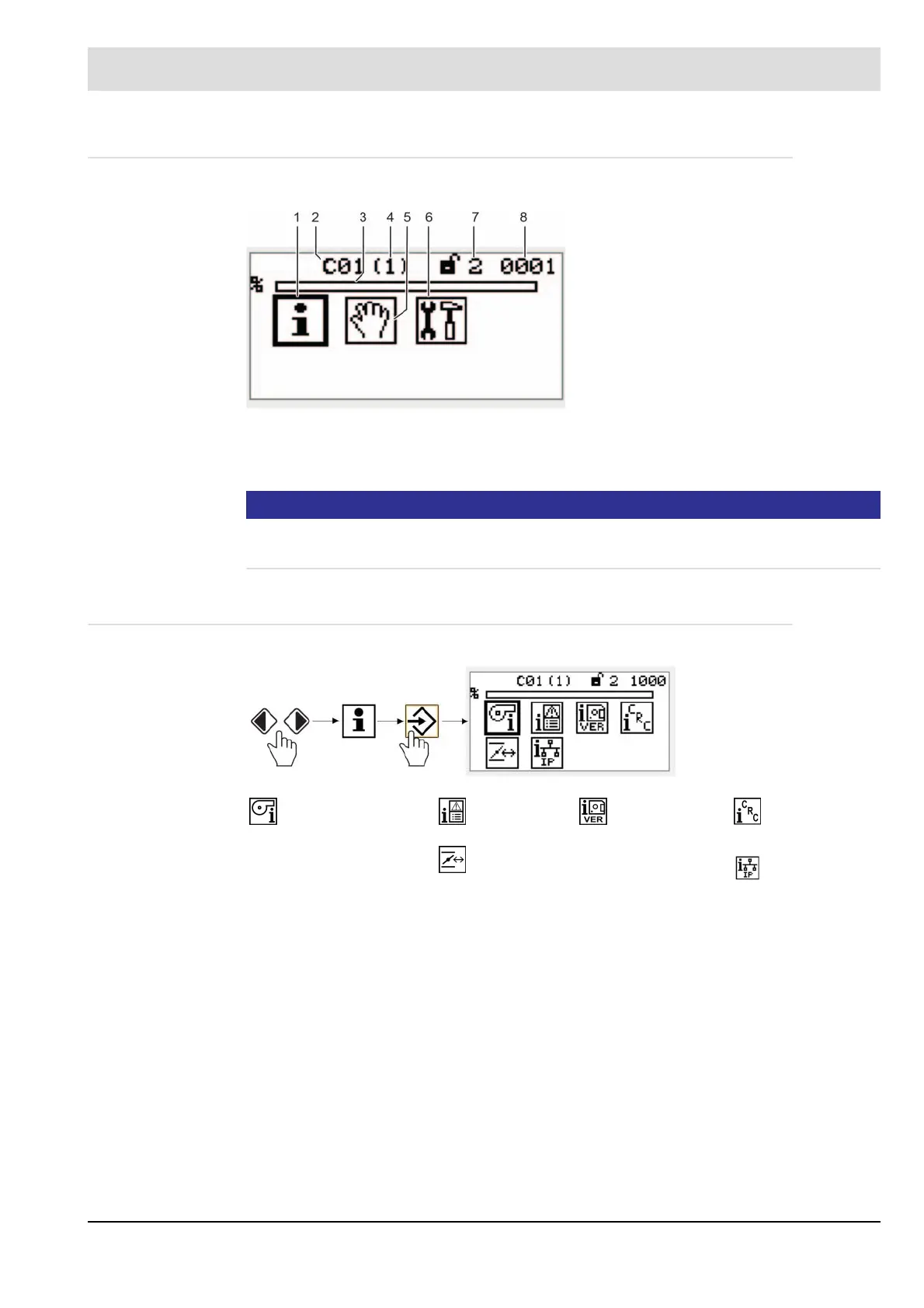

Fig. 7-2 Main menu
1 INFORMATION menu path [selected]
2 Display of canal
3 Bar graph of internal firing rate in %
(0 - 100)
4 Fuel train
5 MANUAL menu path
6 SETTINGS menu path
7 Release level
8 Window number
Burner information Error history Software ver-
sion
Checksums
Configuration of continuous outputs
(display only)
IP address
info
