CMS Components

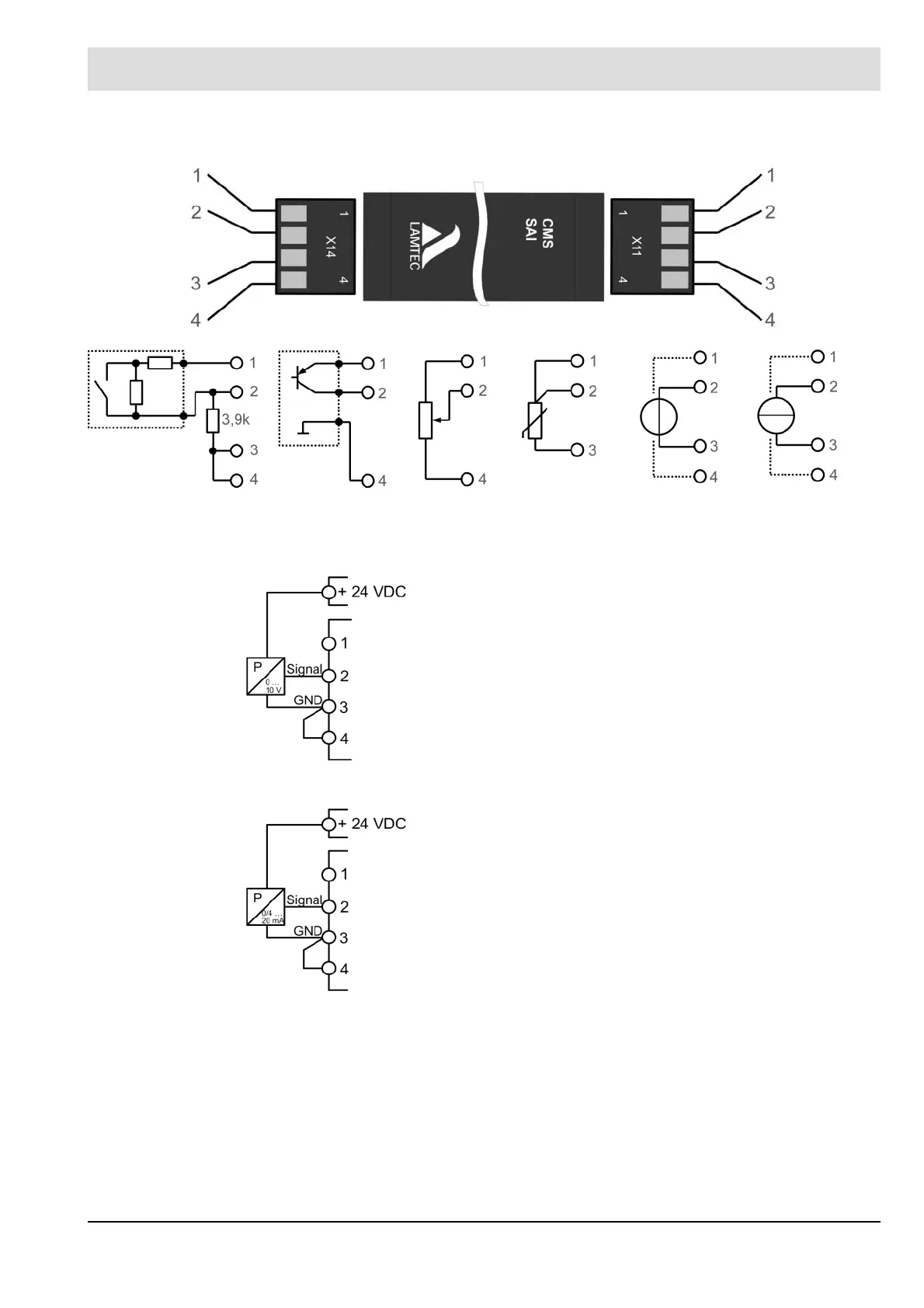

SAI terminal assignment
Connection examples
Pulses – NAMUR
Pulses – 3-wire
Pot
Pt100/Pt1000
0 … 10 V
0 … 20 mA
+24 VDC
from MCC (e.g. X33 pin 2/4)
Pin 1
Ref+
SAI X1
1–X16
Pin 2
In+
Pin 3
In-
Pin 4
GND
Fig. 4-30 0 … 10 V signal transmitter (here: pressure transmitter)
+24 VDC
Pin 1
Ref
SAI X1
1–X16
Pin 2
In+
Pin 3
In-
Pin 4
GND
Fig. 4-31 0/4 … 20 mA signal transmitter
, 3-wire
(here: pressure transmitter)
66
68
