lancer IBD 30 - Page 33

33
Item Part No. Description
- 85-4566H IBD22H, Series 4500, 115V, 6 Premix Valve
1 82-1875 Faucet Plate Assy, Premix, IBD22
2 04-0308 Screw, 10 - 32 X 0.438
3 02-0005 O-Ring, 2-010
4 04-1089 Screw, 10 - 32 x 1.000, RH, PH/SL
5 82-3538 Chute Assy, IBD
6 04-0553 Screw, 10 - 24 X 1.75, LG
7 05-0928/01 Trap Door, IBD
8 04-0504 Screw, 8 - 18 X 0.375, PHD
9 82-1566/01 Solenoid Assy
10 82-1551/01 Trim Assy, IBD
11 30-5876/01 Cover, Electrical Box, IBD
12 10-0732 Shaft, ice Chute Door
13 05-0359 Bushing, Shaft
14 03-0113 Ring, Retaining (5144-12)
15 05-0546 Lever, Door,
16 03-0205 Ring, Retaining (5304-25)
17 12-0244 Ice Door Switch

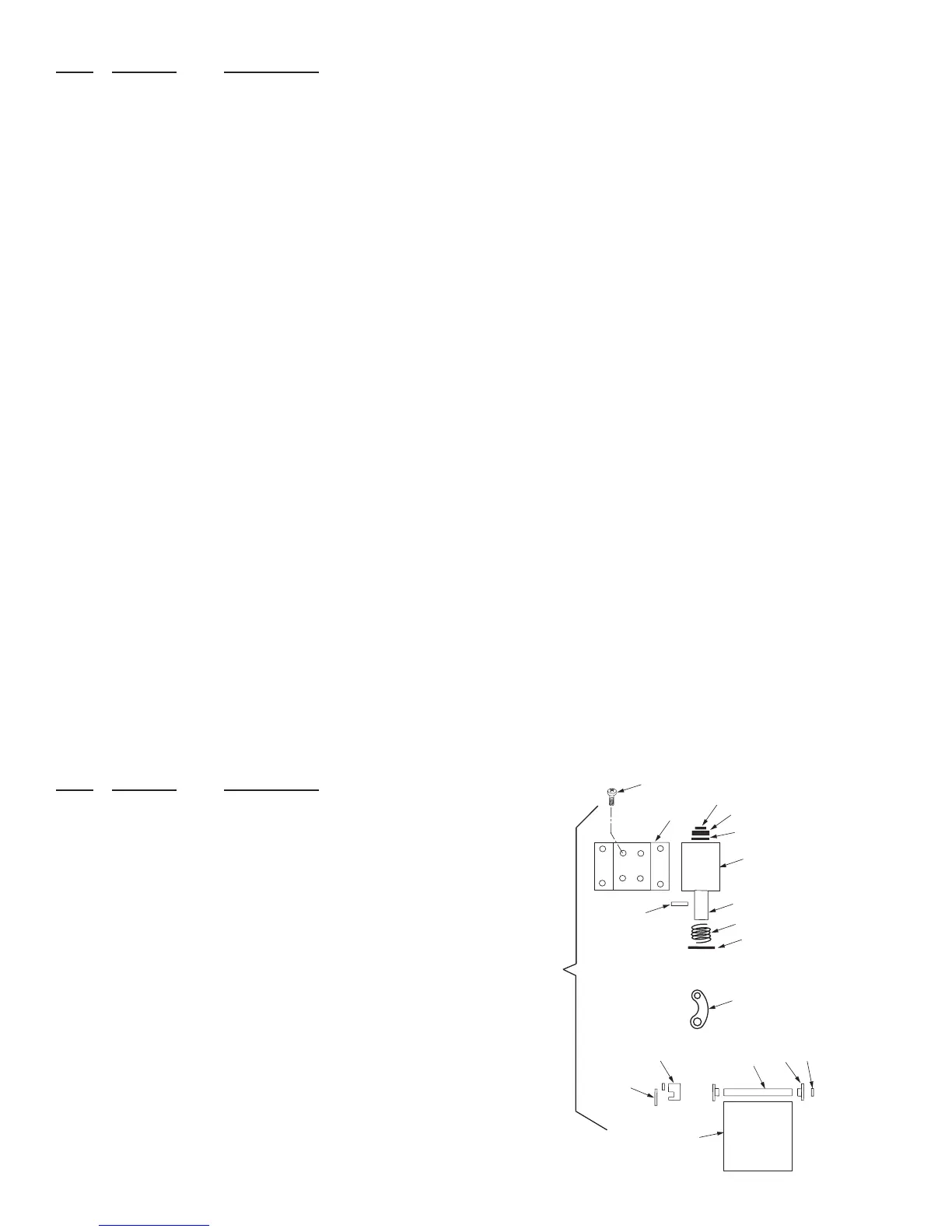

E
A
B
C
D
F
H
I
G
J
12
13
14
7
9
16
15
K
Item Part No. Description
A 03-0086 Ring, Retaining (5304-18)
B 04-0328 Washer, Rubber
C 04-0327 Washer, Flat
D 12-0195 Solenoid, D-90
E 30-5165/01 Bracket, Solenoid
F 23-1029 Plunger Assy
G 10-0496 Pin, Solenoid Assy
H 03-0110 Spring, Solenoid
I 03-0111 Ring, Retaining (5133-62)
J 10-0353 Linkage, Door, IBD
K 04-0320 Screw, 8 - 32 x 0.187
