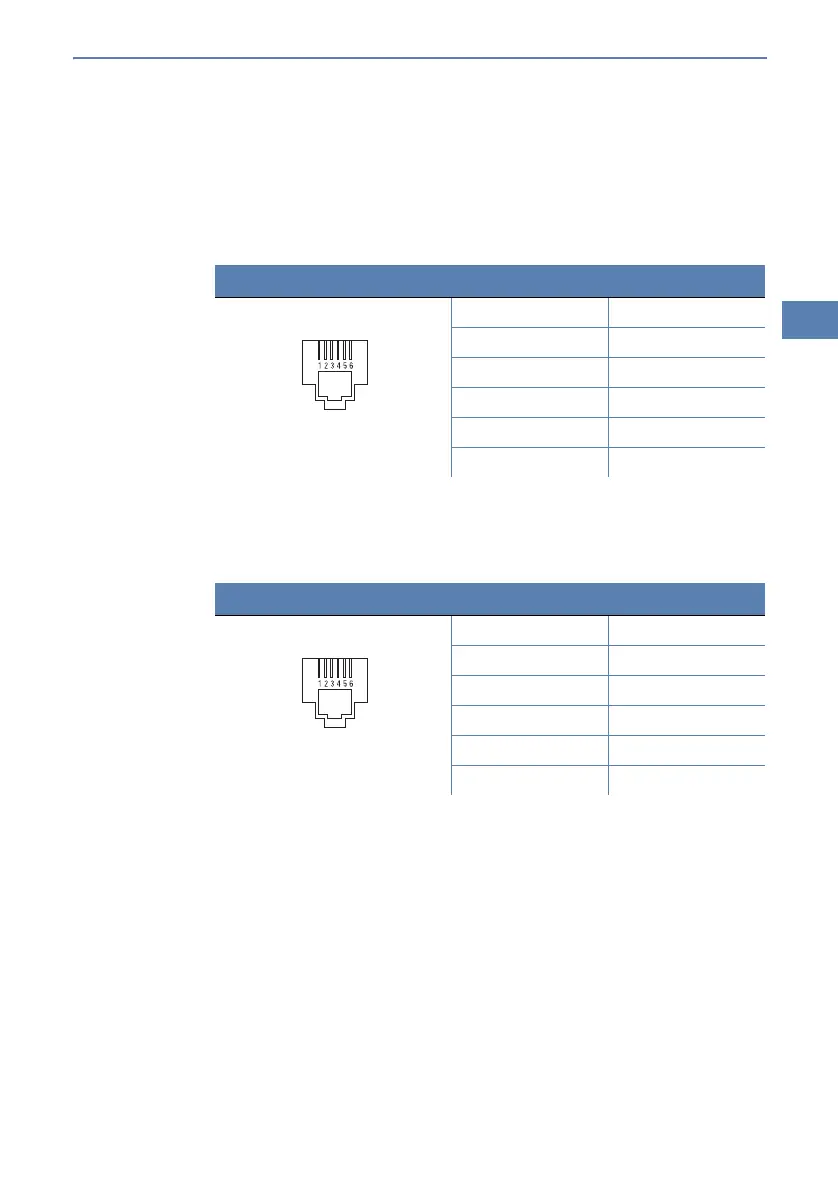

11.3 Contact assignment
11.3.1 ADSL interface
6-pin RJ45 socket
11.3.2 DSL interface
6-pin RJ45 socket
Connector Pin IAE
1–
2–
3a
4b
5–
6–
Connector Pin IAE
1T+
2T-
3R+
4–
5–
6R-
