Lancom DSL Series - ISDN-S Interface; Ethernet Interfaces 10;100 Base-T

LANCOM Wireless DSL – LANCOM Wireless ADSL
 Chapter 11: Appendix
96
EN

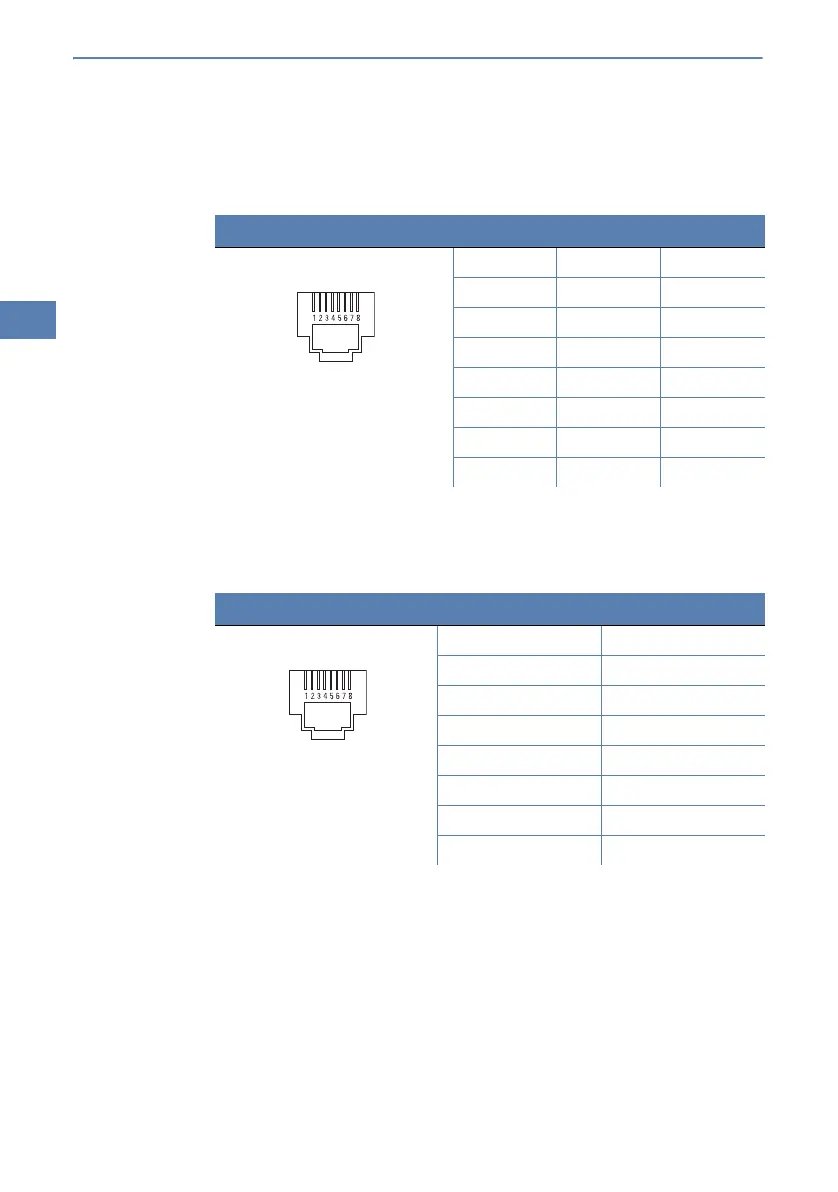

11.3.3 ISDN-S
0
interface
8-pin RJ45 socket, corresponding to ISO 8877, EN 60603-7
11.3.4 Ethernet interfaces 10/100Base-T
8-pin RJ45 socket, corresponding to ISO 8877, EN 60603-7
Connector Pin Line IAE
1––
2––
3T+2a
4R+1a
5R-1b
6T-2b
7––
8––
Connector Pin Line
1T+
2T-
3R+
4–
5–
6R-
7–
8–
