Landa Pgdc4-3500 - Control Box Exploded View; Control Box Parts List

LANDA PGDC • 8.916-596.0 • REV. 5/13
OPERATOR’S MANUAL
PRESSURE WASHER
24
ITEM PART NO. DESCRIPTION QTY
1 8.916-458.0 Control, Front, PGDC 1
2 8.916-612.0 Label, Electrical, PGDC 1
3 9.802-453.0 Switch, Curvette 1
4 9.802-485.0 Breaker, Circuit, 25 Amp 1
5 9.802-456.0 Light, Indicator, Green 12V 1
6 9.802-470.0 Relay, 12V
(1.110-049.0 Honda,
1.110-050.0 Van) 1
9.802-471.0 24V Relay
(1.110-051.0 Honda) 1
CONTROL BOX EXPLODED VIEW PARTS LIST

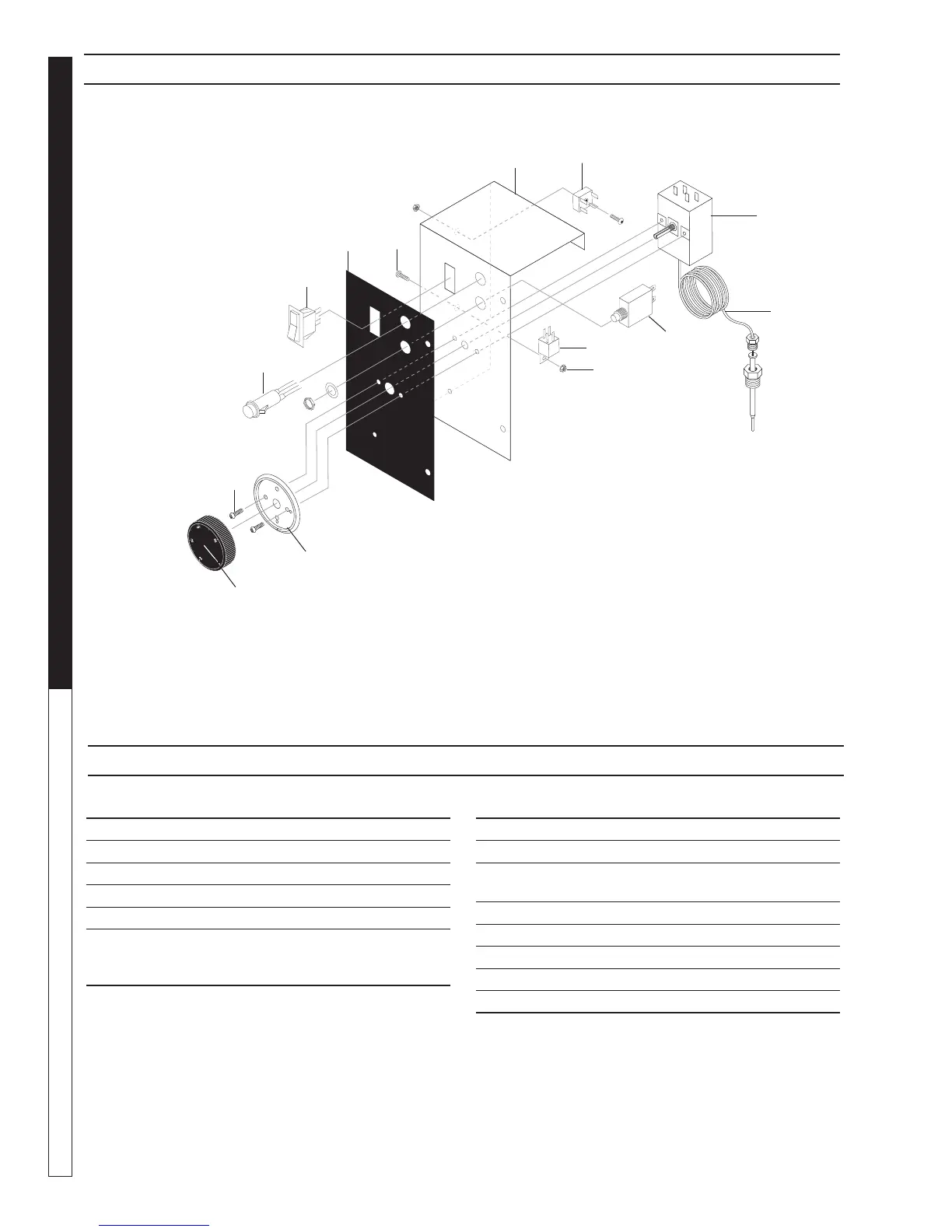

CONTROL BOX EXPLODED VIEW
8916596-21
1
2
3
5
13
4
10
11
12
6
7
8
ITEM PART NO. DESCRIPTION QTY
7 9.802-695.0 Nut, 10/32" Keps 1
8 9.802-771.0 Screw, 10/32 x 3/4 1
9 9.802-530.0 Rectifier, Bridge
12V DC, 30 AMP 1
10 8.750-095.0 Thermostat, 120C/240F 1
11 8.750-097.0 Knob,Thermostat, 120C/240F 1
12 8.712-190.0 Bezel,Thermostat 1
13 8.718-779.0 Screw, 4 mm x 6 mm 2
14 9.802-447.0 Conduit, Split 48"
9
14
